Weinas Lighting

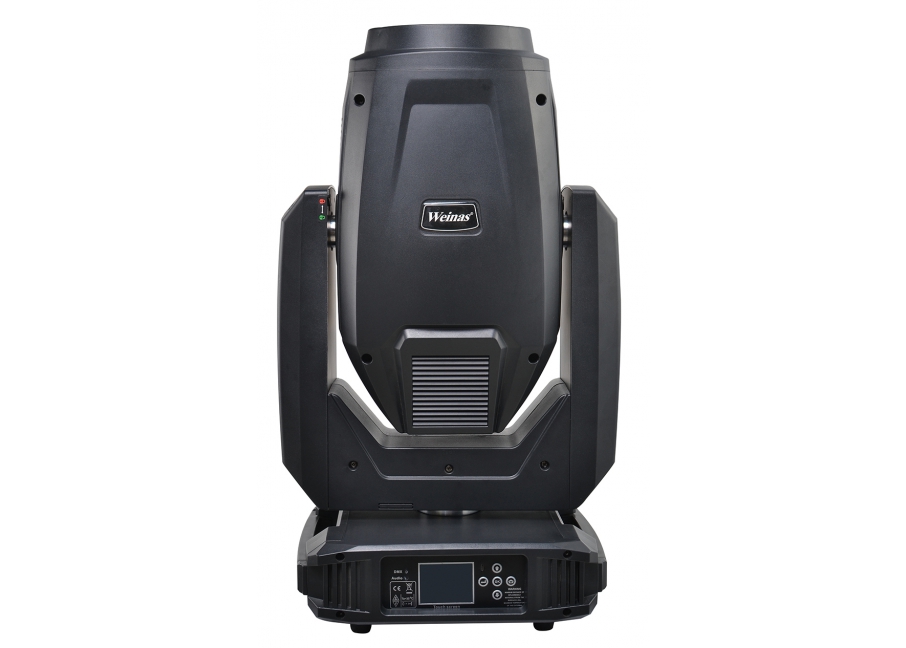

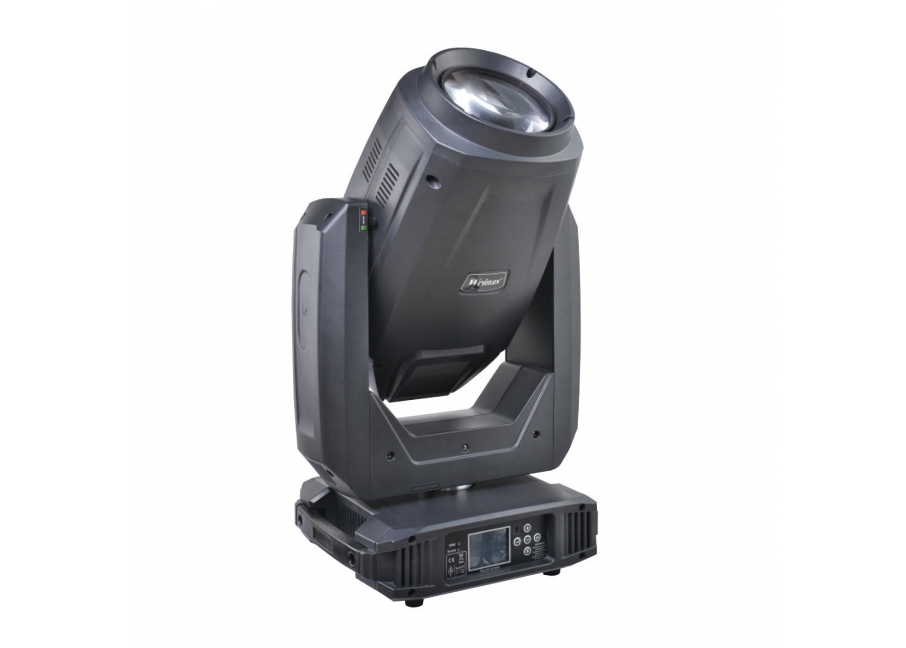

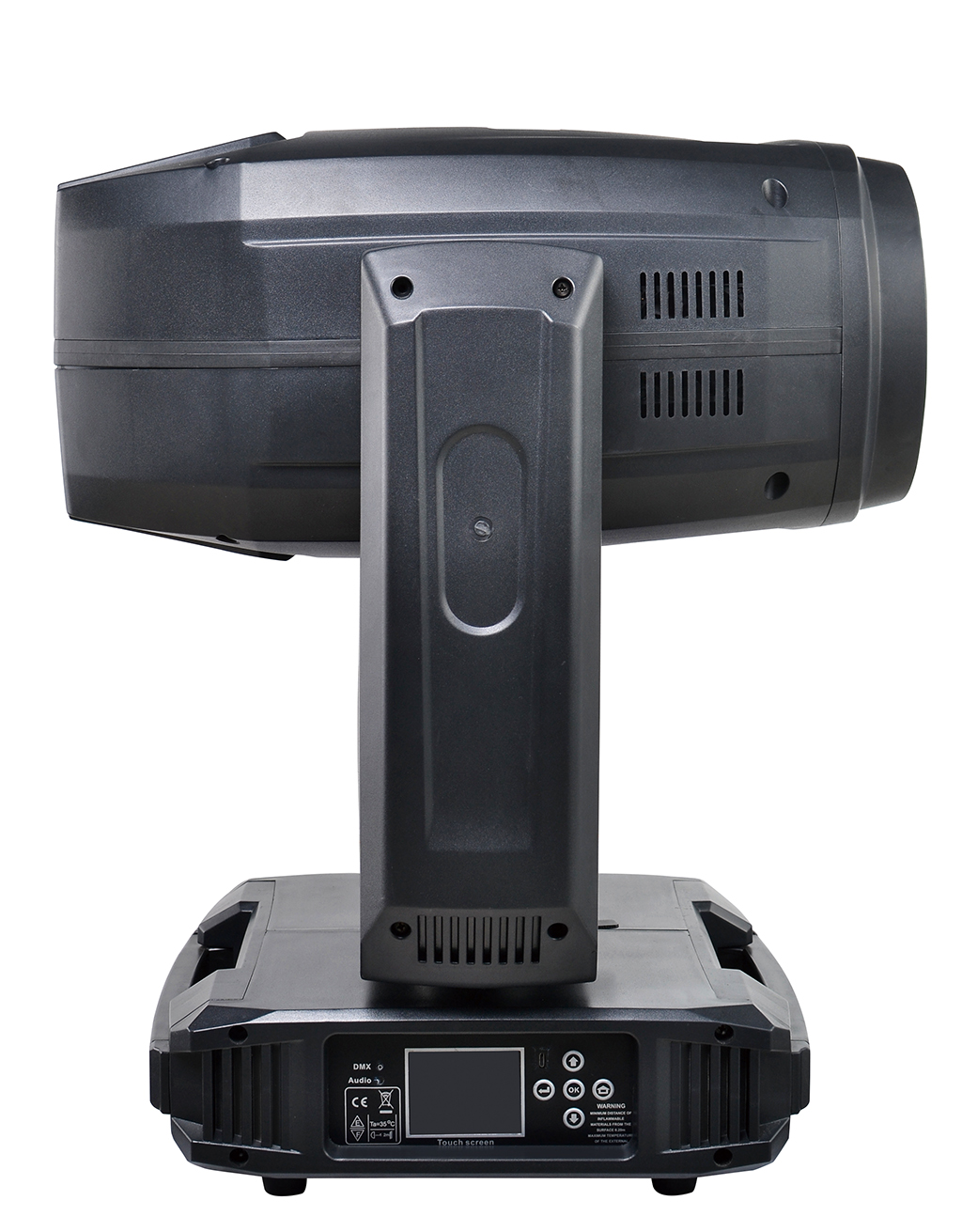

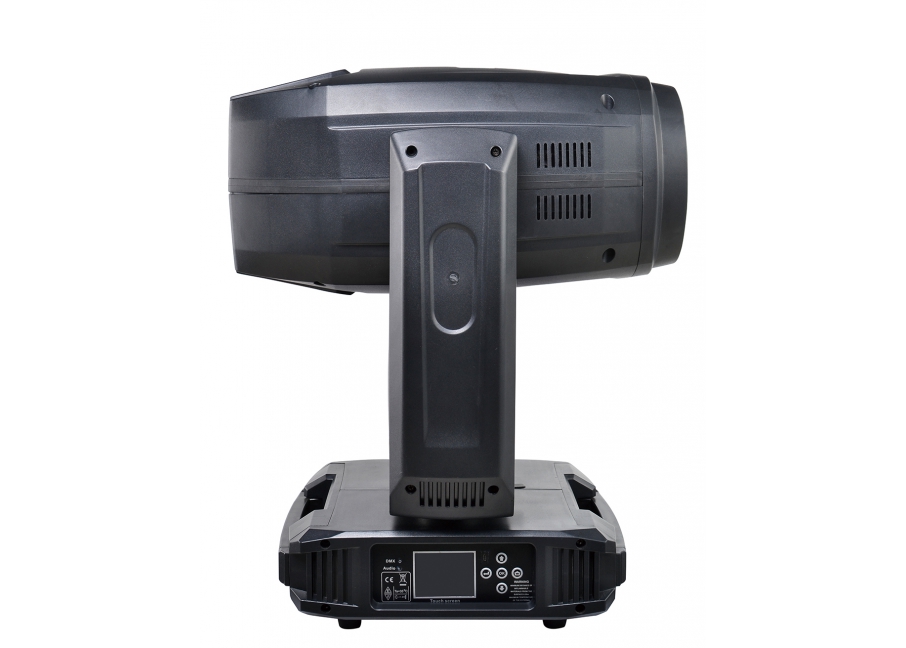

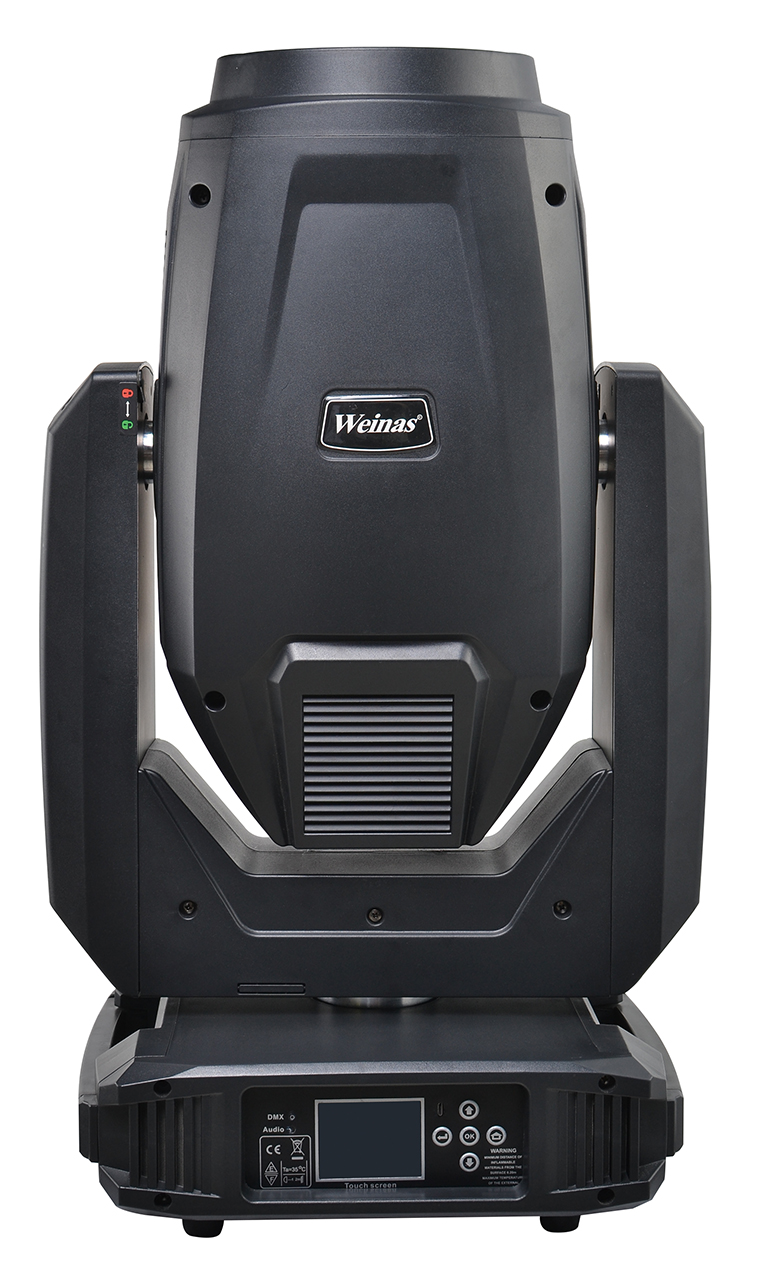

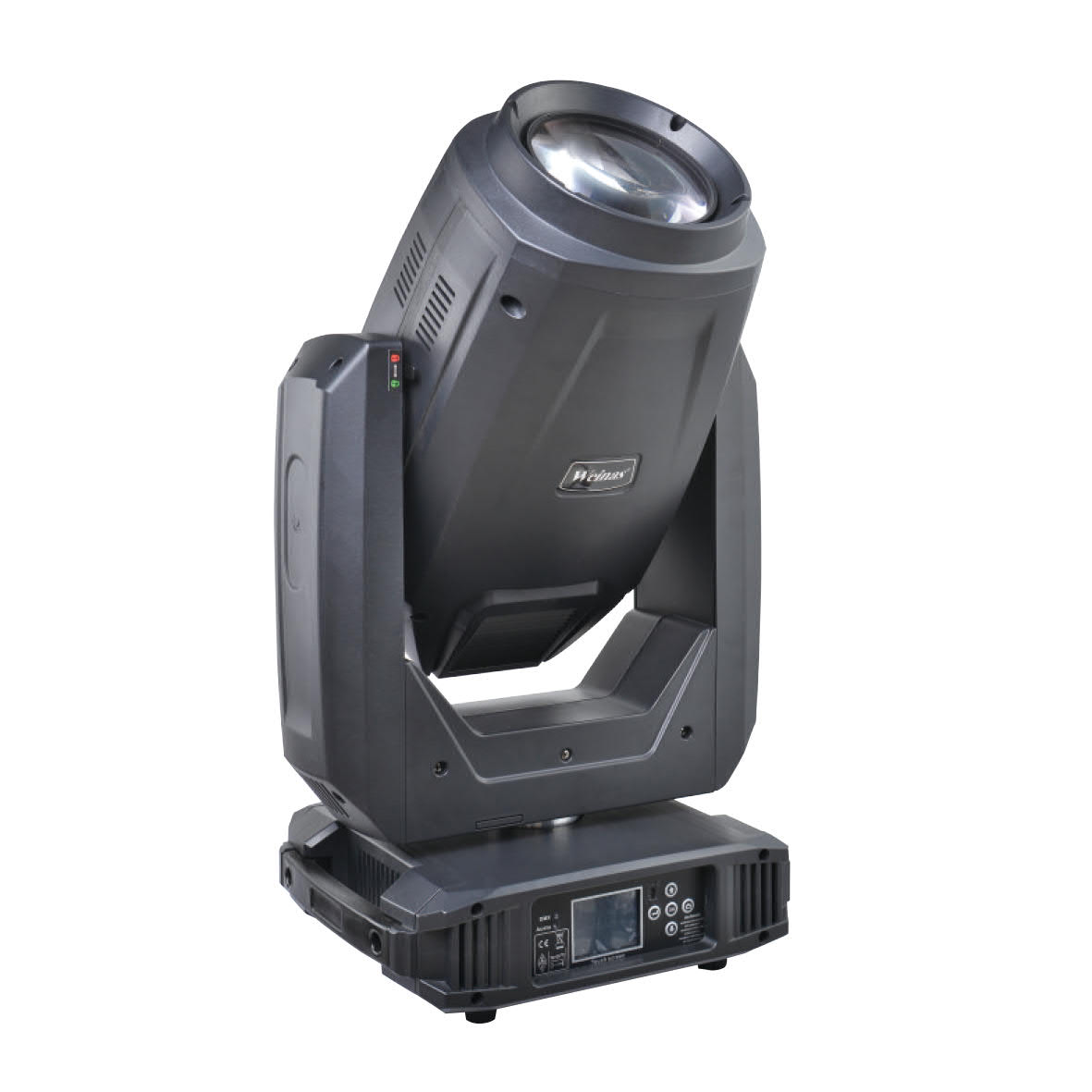

♦ Item Name: BS440A/BS470A

♦ Voltage: AC100V-240V,50/60Hz

♦ Rated Power: 560W

♦ Light Source: Yodn 440W/Osram Sirius HRI 461W

♦ Display: Touch screen with 180° reversed available, with four buttons

♦ Lens: Quartz Glass Optical Lens

♦ Control Mode: DMX512, Auto-run, Master/Slave Mode, Sound Active

♦ Channel: 28 CHs

♦ Pan: 540° (16 bits fine)

♦ Tilt: 270° (16 bits fine)

♦ Gobo wheel: 13 colors + open, with the effect of rainbow and speed-controllable; CMY Linear Mixing Color System: Cyan: 0-100%, Magenta: 0-100%, Yellow: 0-100%

♦ Static Gobo wheel: 14 gobos + open, with sharking effect

♦ Rotation Gobo wheel: 7 replaceable glass gobos + open, the gobo wheelcan be rotated in bi-directional and speed-controllable

♦ Effect Gobo wheel3pcs static gobo + open

♦ Prism: 8-facet and 16-facet prisms, bi-directional rotating at variablespeeds, prism rotation effect, 2 prisms can work together

♦ Zoom Angle: 2.5-60° linear zoom and automatically zoom of frost lens, withwash effect, electrical focus, strobe and dimmer

♦ Strobe: Single patch strobe maximum reaches 13 times per second, random strobe and pulse strobe optional

♦ Foggy: 0-100% linear foggy, wash effect, focus function

♦ Dimmer: 0%-100% linear dimmer

♦ IP Rate: IP20

♦ N/W: 24KG

♦ Packing Size: 510x460x810mm

♦ Other Function: Lamp on-off function and reset through controller; Auto-run, Master/Slave Mode, Sound Active
