DLA118B/DLA118BAS
Line Array System
Contact
Features
●High quality component, bass-reflex design, full and powerful sound
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
| MODEL | DLA118B | DLA118BAS |
| FREQUENCY RESPONSE(-3dB) | 35Hz-300Hz | 35Hz-300Hz and 50Hz-20kHz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak | 900W/4Ω+1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1 metre | — |
| MAXIMUM SPL | 127dB continuous,133 dB peak | 127dB continuous,135 dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |

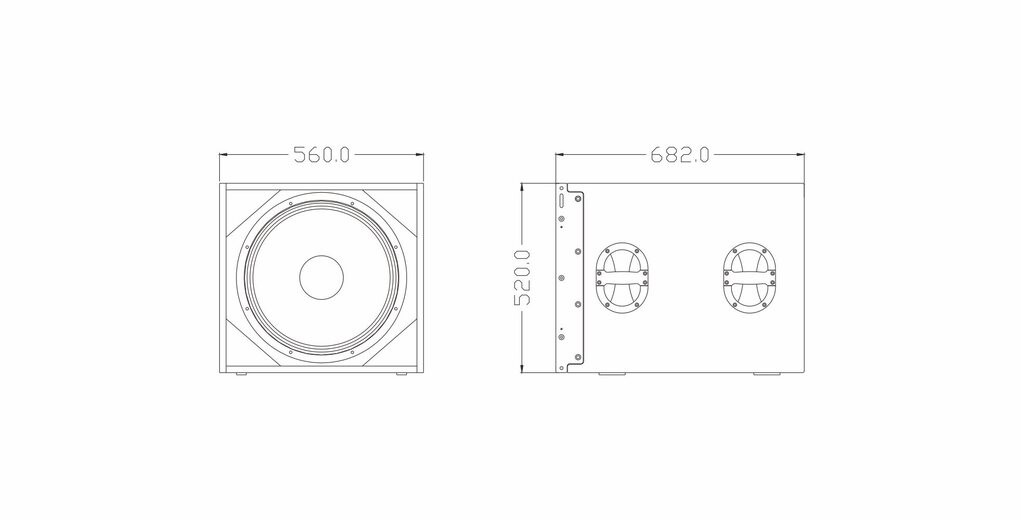

| PACKAGE SIZE | 772mm×650mm×615mm | 772mm×650mm×615mm |
| NET WEIGHT | 44 kg/pc | 46 kg/pc |
| GROSS WEIGHT | 49 kg/pc | 51 kg/pc |
DLA118B%26DLA118BAS-2023
Description

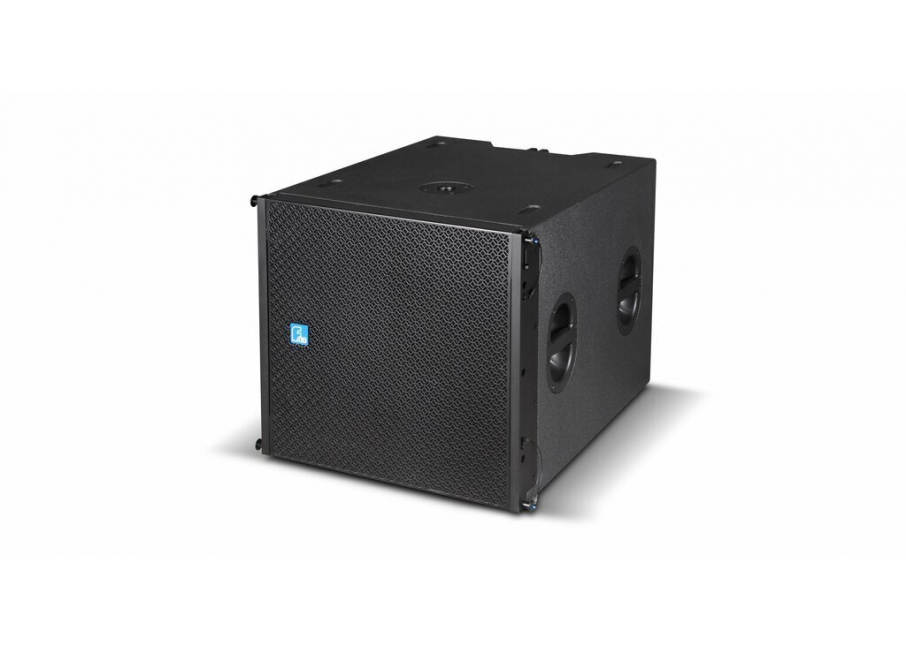

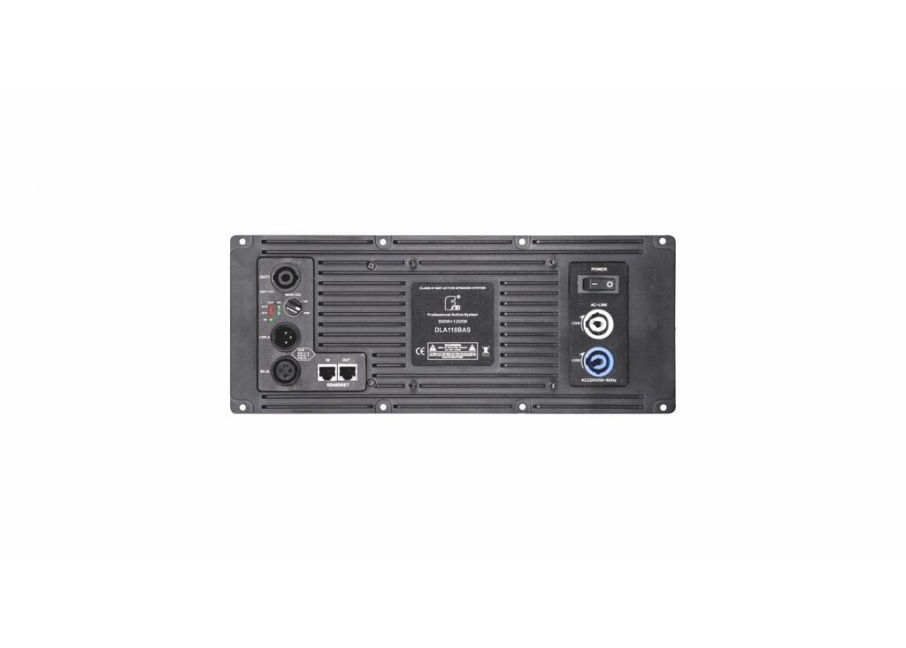

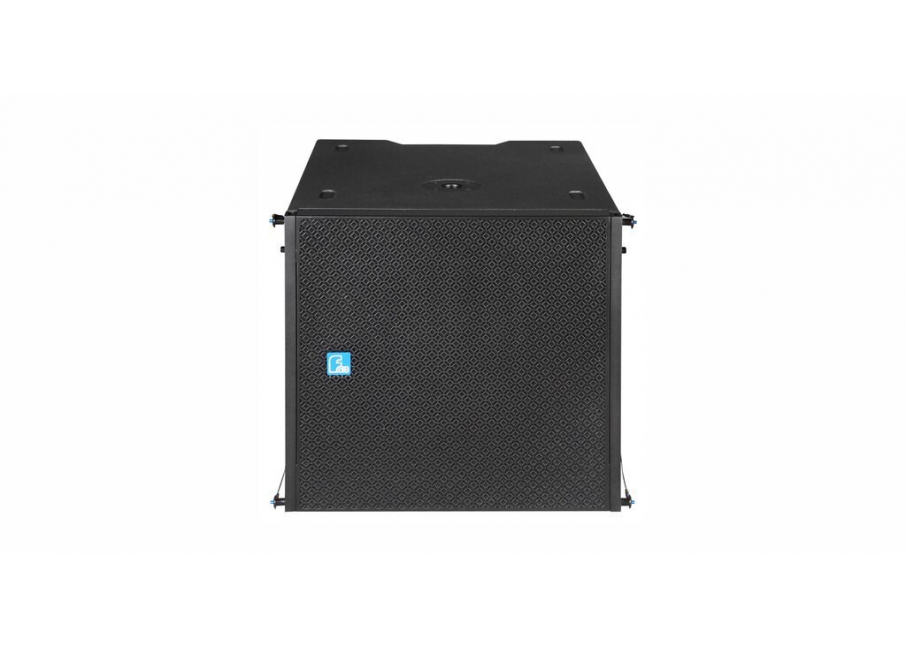

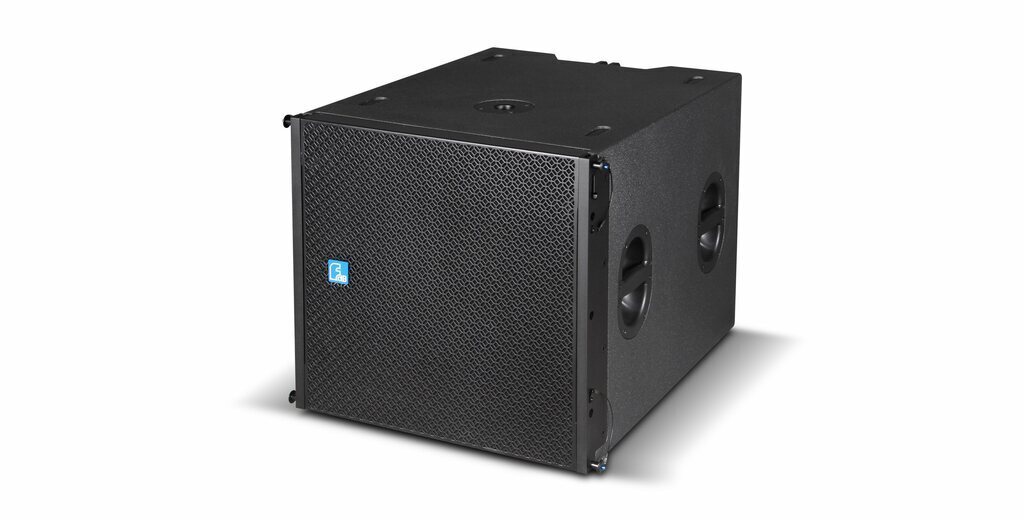

DLA118B is a single 18" subwoofer. It features 1x18" 100mm voice coil woofer, bass-reflex design, three-point hanging system matched with DLA408 and DLA112, can be hung and stacked to improve the low frequency performance of the system. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA118BAS is equipped with indepedant control two channels digital amplifier with DSP based on DLA118B to be an active system with DLA408 or DLA112.
