ES112S/ES112SA
All-weather Multi-purpose Engineering Speaker
Contact
Features
● High quality plywood with special environmental protection paint
● Bass reflex design
● High temperature 3" (75mm) voice coil
| MODEL | ES112S | ES112SA |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz |
| DRIVERS | 1×12"(300mm)/3""voice coil LF | 1×12"(300mm)/3""voice coil LF |
| RATED POWER | 350W RMS,1400W peak | 600W/8Ω |
| SENSITIVITY | 96dB 1watt/1 metre | — |
| MAXIMUM SPL | 121dB continuous,127 dB pea | 121dB continuous,127 dB pea |
| IMPEDANCE | 8 ohms nominal | — |
| DISPERSION(-6dB) | — | — |
| CROSSOVER FREQUENCIES | — | — |
| INPUT CONNECTORS | Terminal Clamp | IPUT TYPE：Balanced Differential line |
| PACKAGE SIZE | 607mm×525mm×475mm | 607mm×525mm×475mm |
| NET WEIGHT | 23 kg/pc | 25 kg/pc |
| GROSS WEIGHT | 25 kg/pc | 27 kg/pc |
.jpg)

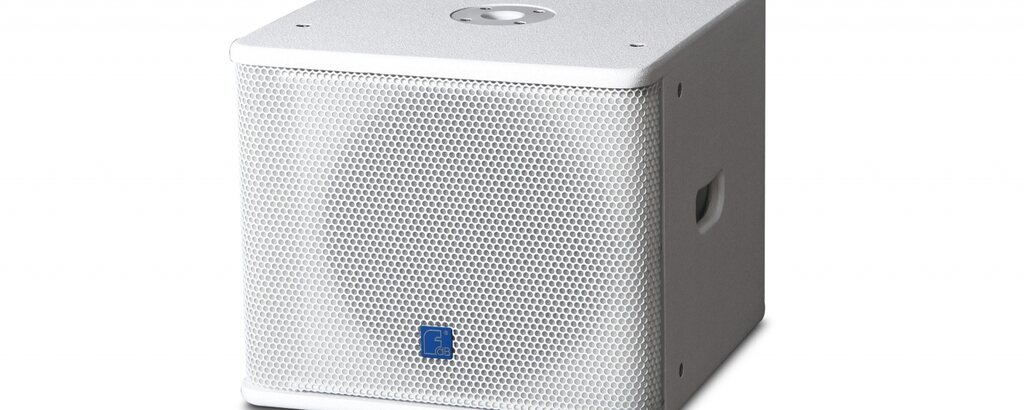

ES112S-ES112SA
Description

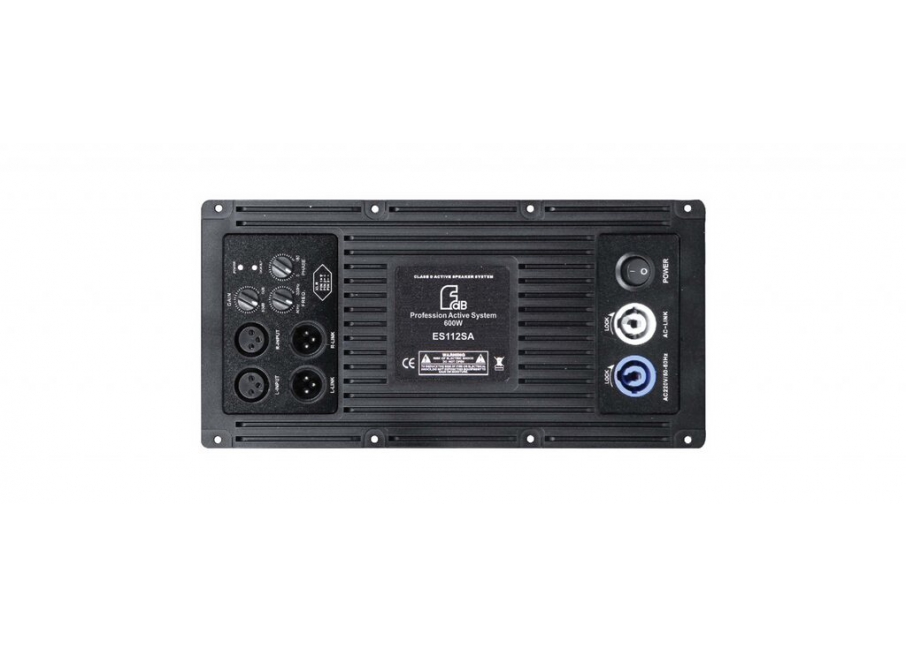

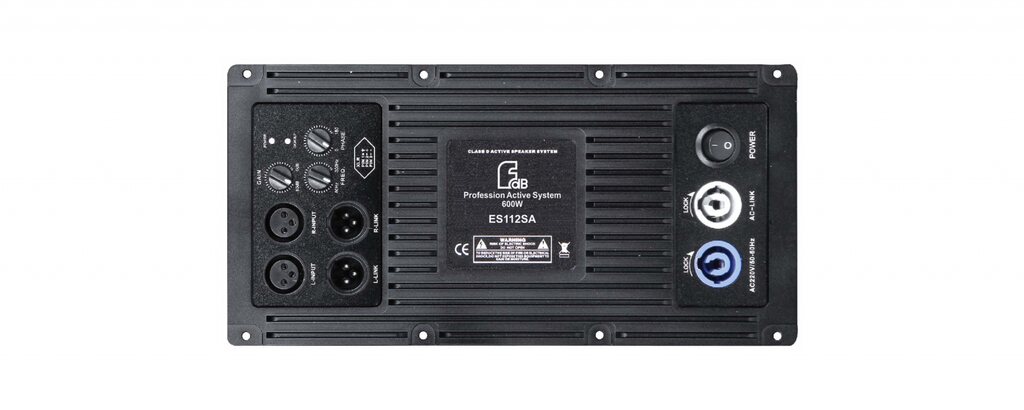

The ES112S is a single 12" subwoofer designed for sub-bass reinforcement to ES series, made of high quality plywood. ES112SA is equipped with BA1.6 digital amplifier module based on ES112S to be an active subwoofer.
