hd B210
High Performance Subwoofer
Contact
The hd B210 is a compact passive subwoofer in bass reflex tuning. The woofer system is equipped with two specially designed 10“ long excursion drivers with 2.5“ voice coil and single roll surround and ventilated with a large flow-optimised opening. Its excellent dynamics and precise, dry low-frequency reproduction make it easy to operate in acoustically difficult rooms such as churches, restaurants or conference rooms.
The unobtrusive, simple cabinet design with fine-mesh protective grille allows the speaker to be placed inconspicuously in the room. The recessed connection panel on the rear contains two NL4 Speakon sockets for connecting the subwoofer via pin 2+/2- and is used for forwarding the input signal to other speakers. The cabinet is made of multiplex birch wood and is available with a fine textured finish in black, white or RAL colours. It is operated with all Harmonic Design system amplifiers to ensure reliable and precise low frequency reproduction.
.jpg)

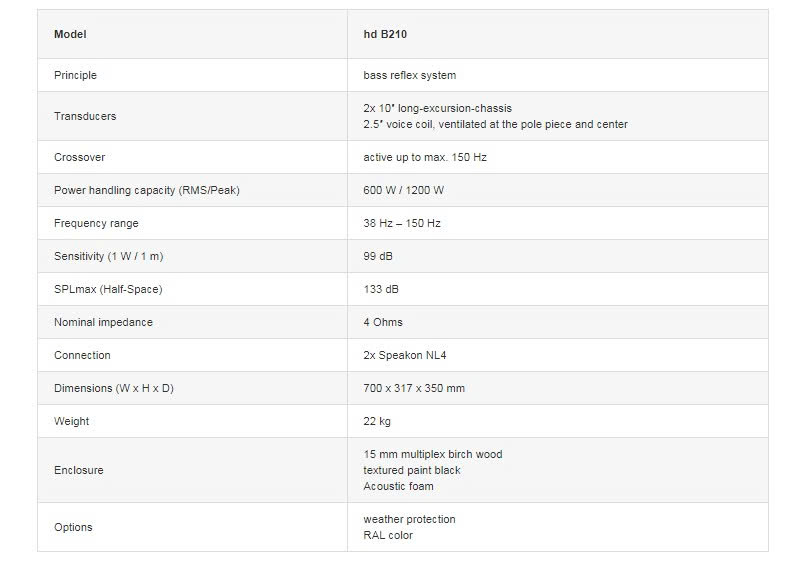

Datasheet_B210_1V0_EN
Description
- 2x 10“ Long-Excursion Subwoofer 600 W / 1200 W
- frequency range from 38 Hz
- elegant design
- bass supplement suitable for hd M-/ML-/C-Series
- single surround for precise bass reproduction
