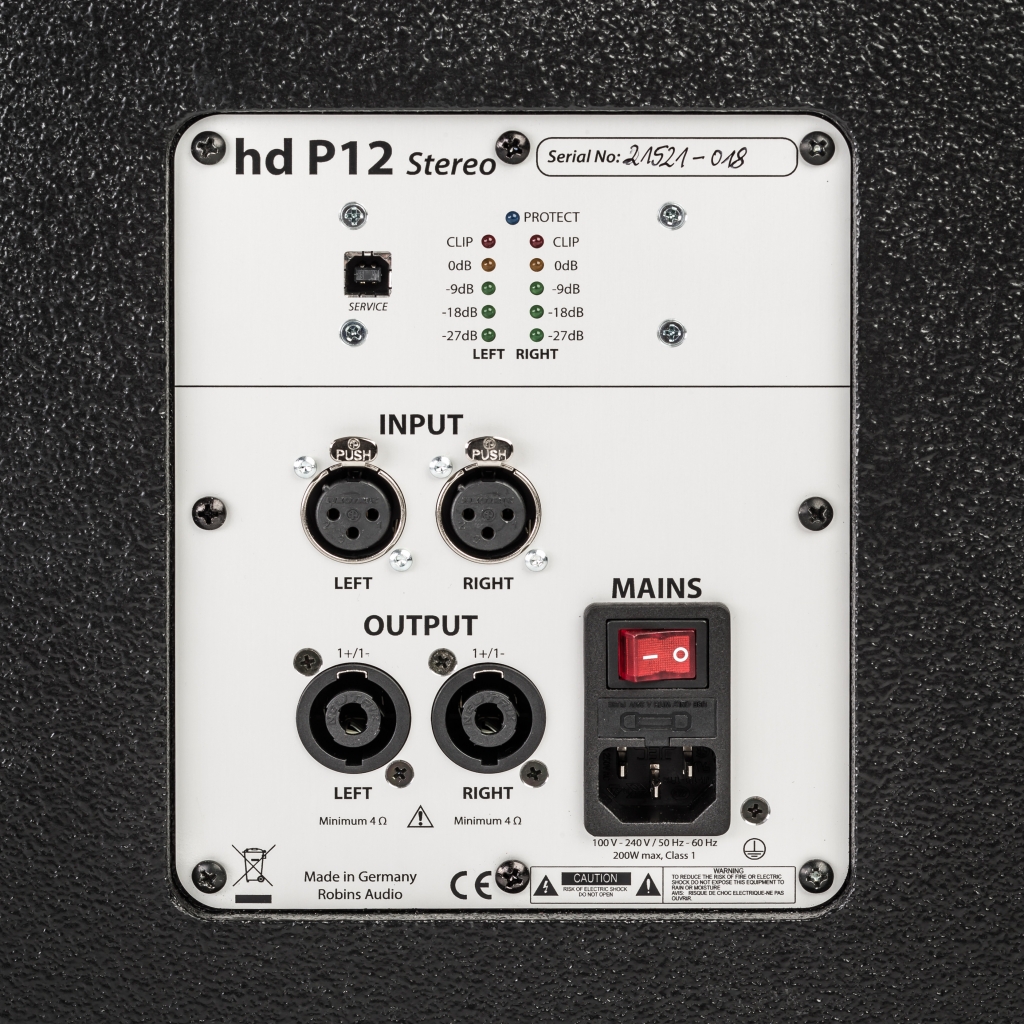

The hd P12stereo is a compact, easy to carry and powerful active system subwoofer. The specially developed 12″ high excursion chassis with 3″ voice coil, single rubber surround and ferrite magnet system guarantees optimal heat dissipation with minimal power compression through ventilation at the pole core. The lower heat development also means increased reliability and reduced thermal stress on the voice coil. Excellent dynamics and dry bass reproduction at incredible pressure is the result. The entire electronics is integrated in the housing. All relevant inputs and outputs are available on a clearly arranged connection panel on the back.
In the hd ML16/P12stereo system it literally acts as a base. The hd P12stereo is the optimally tuned woofer for the hd M-Series and ML-Series. The transmission range is extended downwards, and the headroom and dynamics in the bass range of the system are noticeably increased in a very efficient manner and, at the same time, the column loudspeakers are relieved.

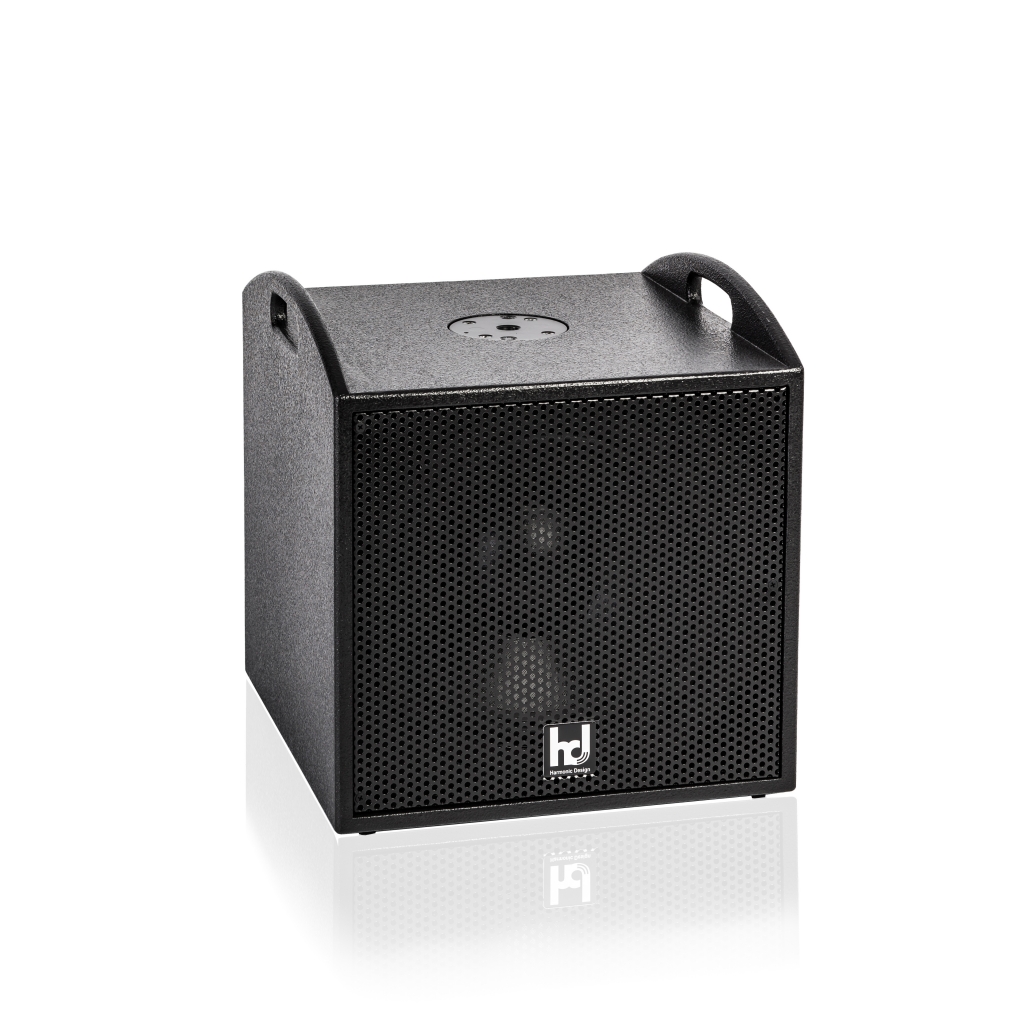

On top of the hd P12stereo is an M20 threaded insert for a distance pole as well as two generous transport handles for easy handling. The housing is made of multiplex birch wood and coated with a shock- and scratch-resistant textured paint. The front of the speaker is protected by a metal grille covered with acoustic foam. Four abrasion-resistant rubber feet on the underside ensure a secure footing.
.jpg)

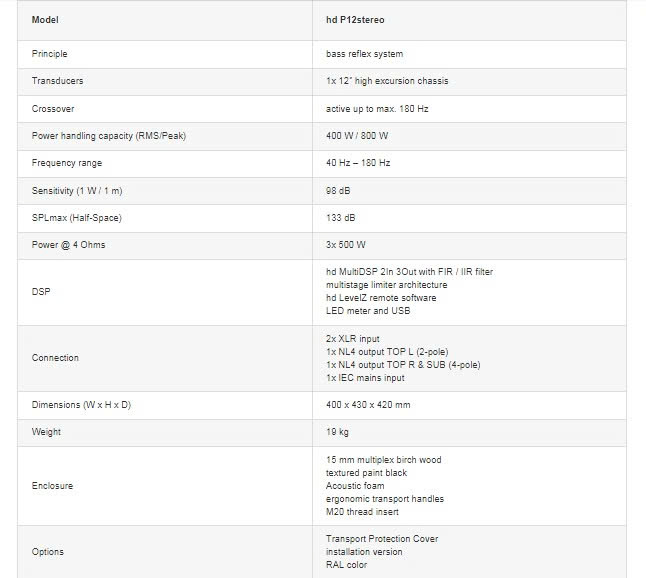

Datasheet_P12St_2V0_DE
Description
> 1x 12“ long excursion loudspeaker 400 W / 800 W
> frequency range from 40 Hz
> 3-way Class D power amplifier (3x 500 W)
> High-End-DSP with FIR filter
> ultra compact dimensions
> subwoofer extension to match the hd M-/ML-Series
> installation version without handles / M20 thread available
> software hd LevelZ
