hd PLB

Contact

Description

- passive subwoofer with 10x 3.5″ high-excursion chassis

- Subwoofer in column design

- amazing playback from 40 Hz

- high sound pressure up to 115 dB

- weatherproof aluminum housing

- subtle room integration

- Weight 6 kg

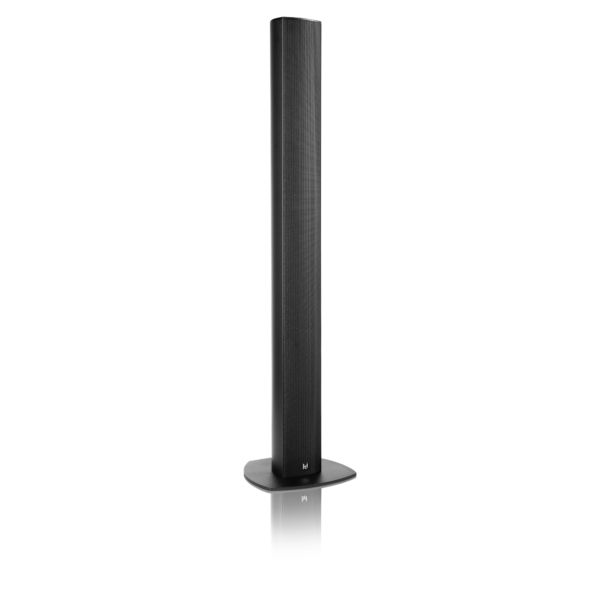

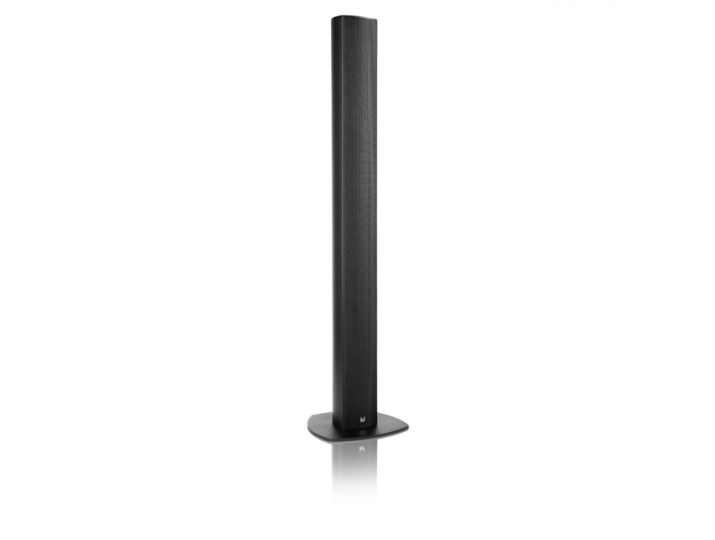

The hd PLB is an extremely compact, array-capable subwoofer in the elegant hd PL-series column loudspeaker design with astonishing bass reproduction for combination with any mid-high loudspeaker for full-range applications. The inconspicuous hd PLB subwoofer element consists of ten powerful 3.5“ high-excursion chassis with a continuous power of 150W RMS. Thanks to the proven single-roll surround technology for a large linear excursion and the best possible impulse fidelity, the 104 x 108 mm slim subwoofer has a frequency range of 40 – 160 Hz (-6 dB) and is therefore ideally suited for invisible applications in restaurants, conference rooms, museums, theaters and churches . The nominal impedance is 6 Ω, so that various sound reinforcement scenarios can be efficiently implemented with the installation amplifiers of the hd Qi series.

The hd PLB subwoofer module has the same housing dimensions as the hd CCX- and PL-series and, thanks to MIX & MATCH, e.g. can be combined with an hd C5CX or hd PL16 to form an inconspicuous but dynamic full-range column loudspeaker with a transmission range of 40 – 22,000 Hz. On request, this combination can also be manufactured in a continuous housing.
