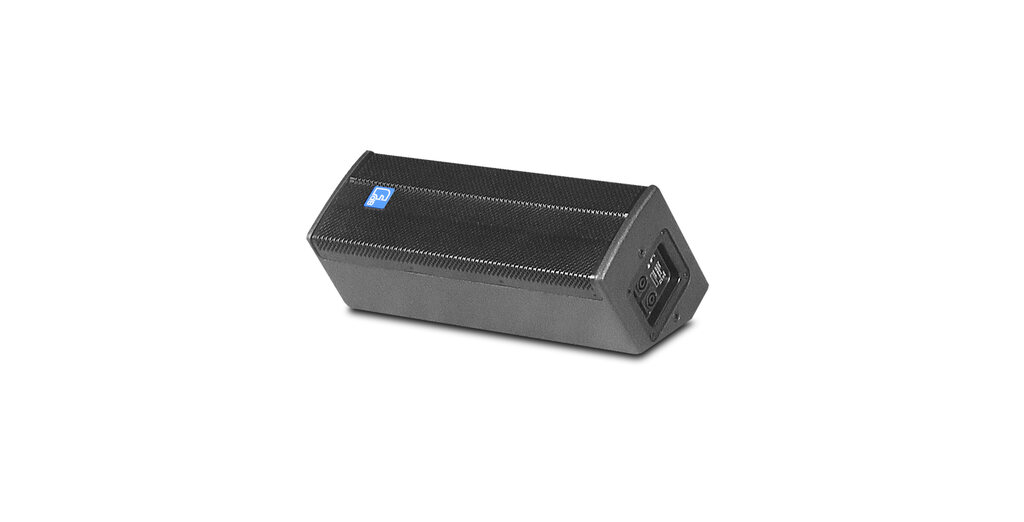

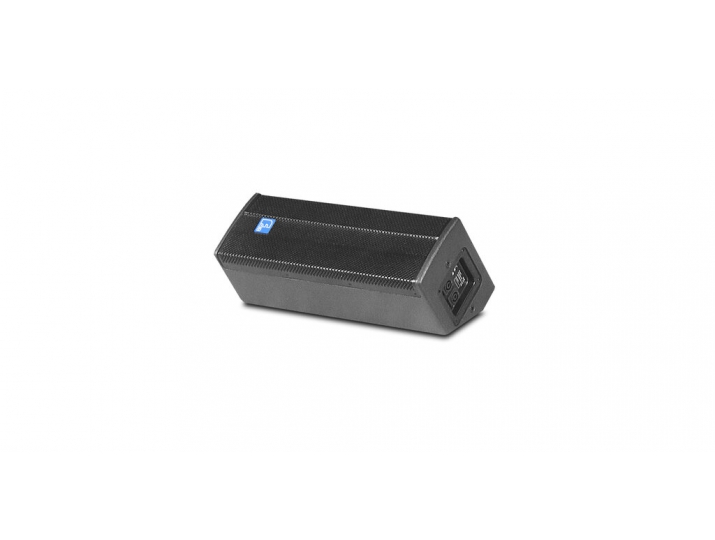

K306
Column System
Contact
Features
●High quality plywood with polyurea waterproof paint
●Multi combinations and installation ways
●Used for moving performance, church and multi-purpose hall
| MODEL | K306 |
| FREQUENCY RESPONSE(-3dB) | 80Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 75Hz-20KHz |
| DRIVERS | 2×6"(150mm)1.5"voice coil LF |
| 1×1"(25mm)1.7"voice coil HF | |
| RATED POWER | 160W RMS,640W peak |
| SENSITIVITY | 95dB 1watt/1meter |
| MAXIMUM SPL | 118dB continuous/124dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 100° × 100° |
| CROSSOVER | 2.6KHz passive |
| FREQUENCIES | |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 562×425×307mm(carton/pair) |
| NET WEIGHT | 6 kg/pc |
| GROSS WEIGHT | 15 kg/pair |
K306
Description
The K306/506/606/806 are a series of product, using the high quality 6" neodymium LF drivers and neodymium HF drivers coupled to special designed horns assembled into small speakers and column speakers to meet the demands of different small and medium-scaled places,and the box body is made of high quality plywood with polyurea waterproof paint.
