MR12N
Stage Listening
Contact
Features
FEATURES
●High quality plywood with polyurea waterproof paint
●Neodymium HF driver
●Compact two-way passive system
●Patent 90°×40° hron
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 50Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 122dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 495mm×465mm×643mm |
| NET WEIGHT | 17 kg/pc |
| GROSS WEIGHT | 20 kg/pc |

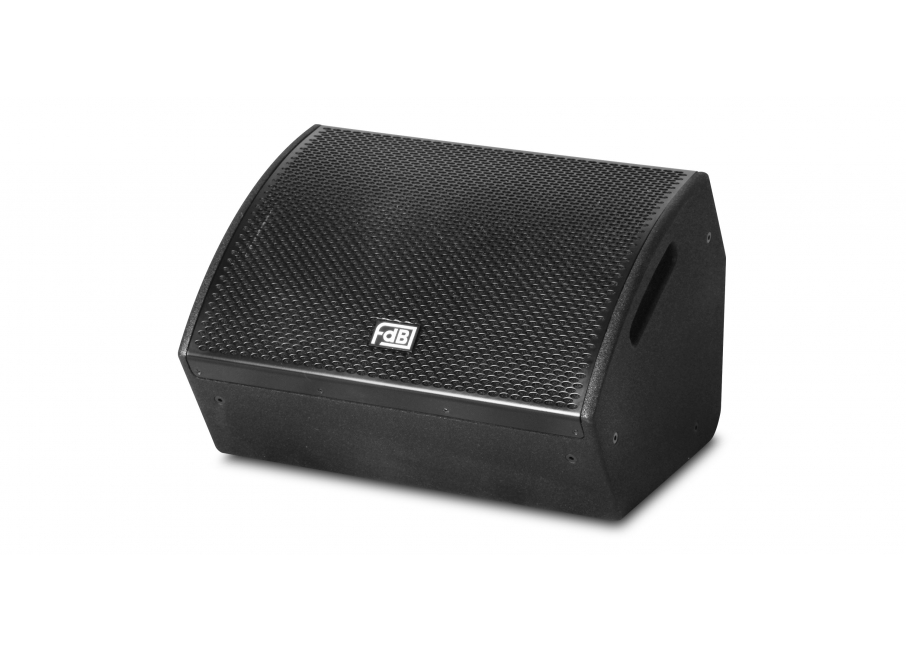

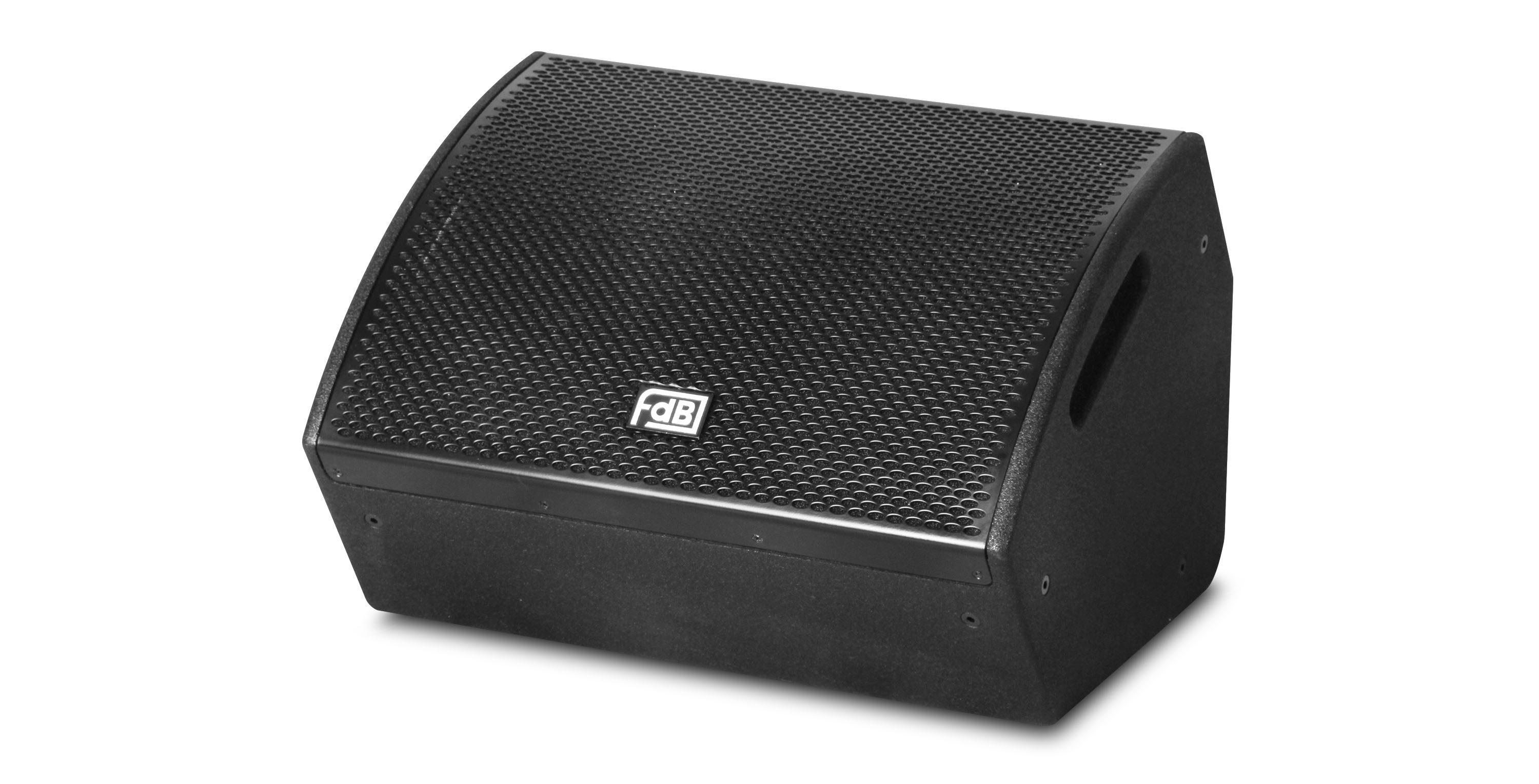

MR12N
Description
The MR12N is a high precision and high power stage monitor. It offers a“studio monitoring”type of response, exceptional dynamic capability, very low distortion, and has mechanical system for angle adjustment when floor mounted.
