PSC-1082
Power Sequence Controller
Contact
| MODEL | PSC-1082 |
| INPUT/OUTPUT IMPEDANCE | ≤0.01Ω |
| RATED VOLTAGE | 85V～265 V40-60Hz |
| RATED CURRENT（25℃） | ≤60A(连续continued) |
| SINGLE CHANNEL CURRENT | ≤13A(连续continued) |
| SINGLE CHANNEL PEAK CURRENT（25℃） | ≤30A |
| STATIC POWER | ≤8W |
| INTERVAL TIME | 1s |
| DIMENSIONS(WxDxH)mm | 483×280x55 |
| NET WEIGHT | 5 KG |

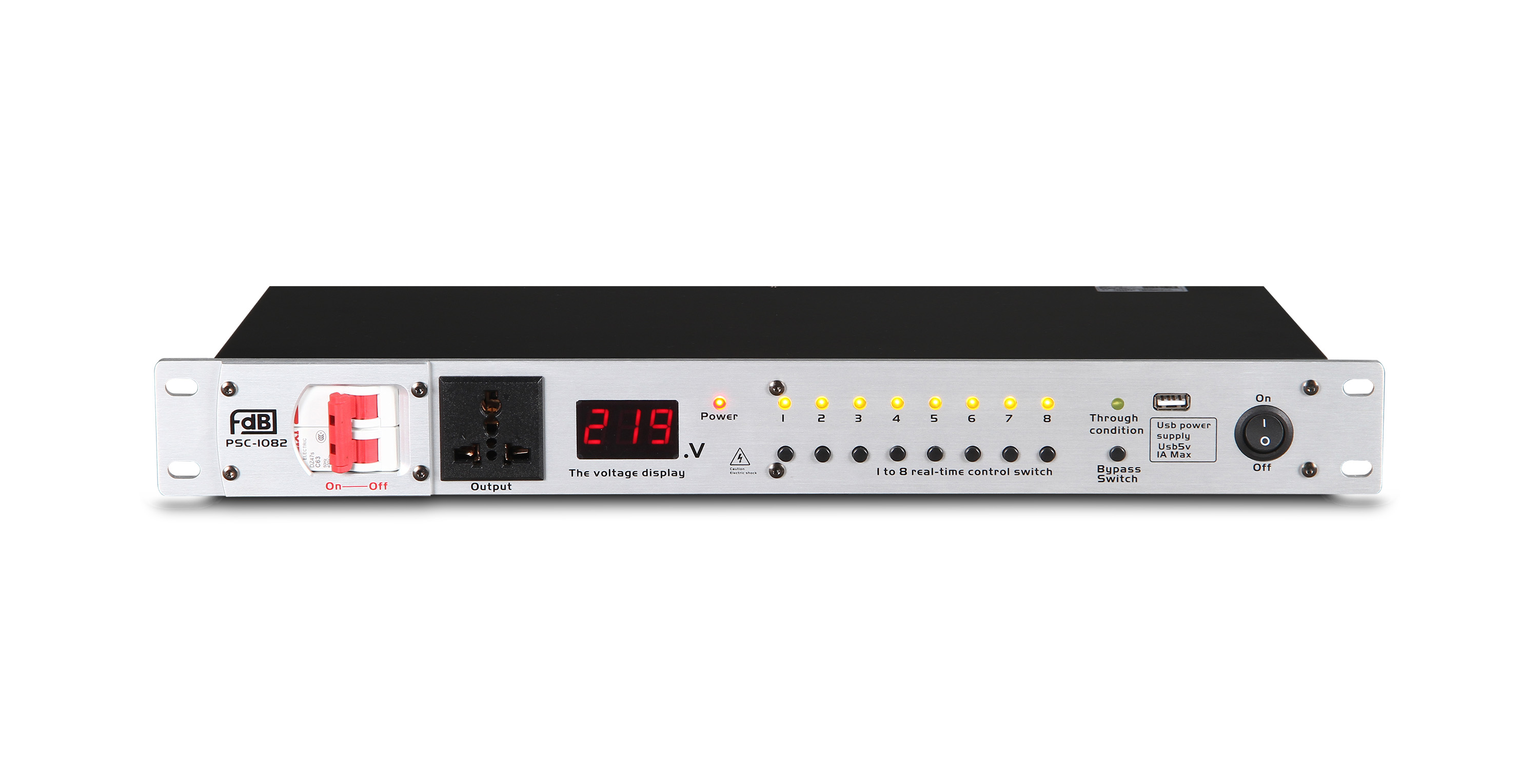

PSC-1082
Description
PSC series is a set of different functions of Power Sequence Controller, specially used for engineering power management, suitable for performances, entertainment venues, conference rooms, classrooms, cinemas ,etc. The product configuration digital real-time voltage indicator, is equipped with a USB charging for mobile, using 30A large current control relay output, high precision phosphor copper multi-purpose socket, the core control chip using imported components, double-sided PCB, SMT technology, stable and reliable, has the RS232 control interface, RS485 cascade, switch interface.
