QS12II
Multi - Function
Contact
Features
● High quality plywood with special environmental protection paint
● Compact two-way passive system
● Rotatable (50-100)°×55° horn
● Flexible mounting options
● Top hat fitting for tripod
| FREQUENCY RESPONSE(-3dB) | 50 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 45 Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1"(25mm)/ 1.7"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 122dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | (50-100)°×55° |
| CROSSOVER FREQUENCIES | 2kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 505mm×490mm×730mm |
| NET WEIGHT | 21 kg/pc |
| GROSS WEIGHT | 24 kg/pc |
QS112II
Description

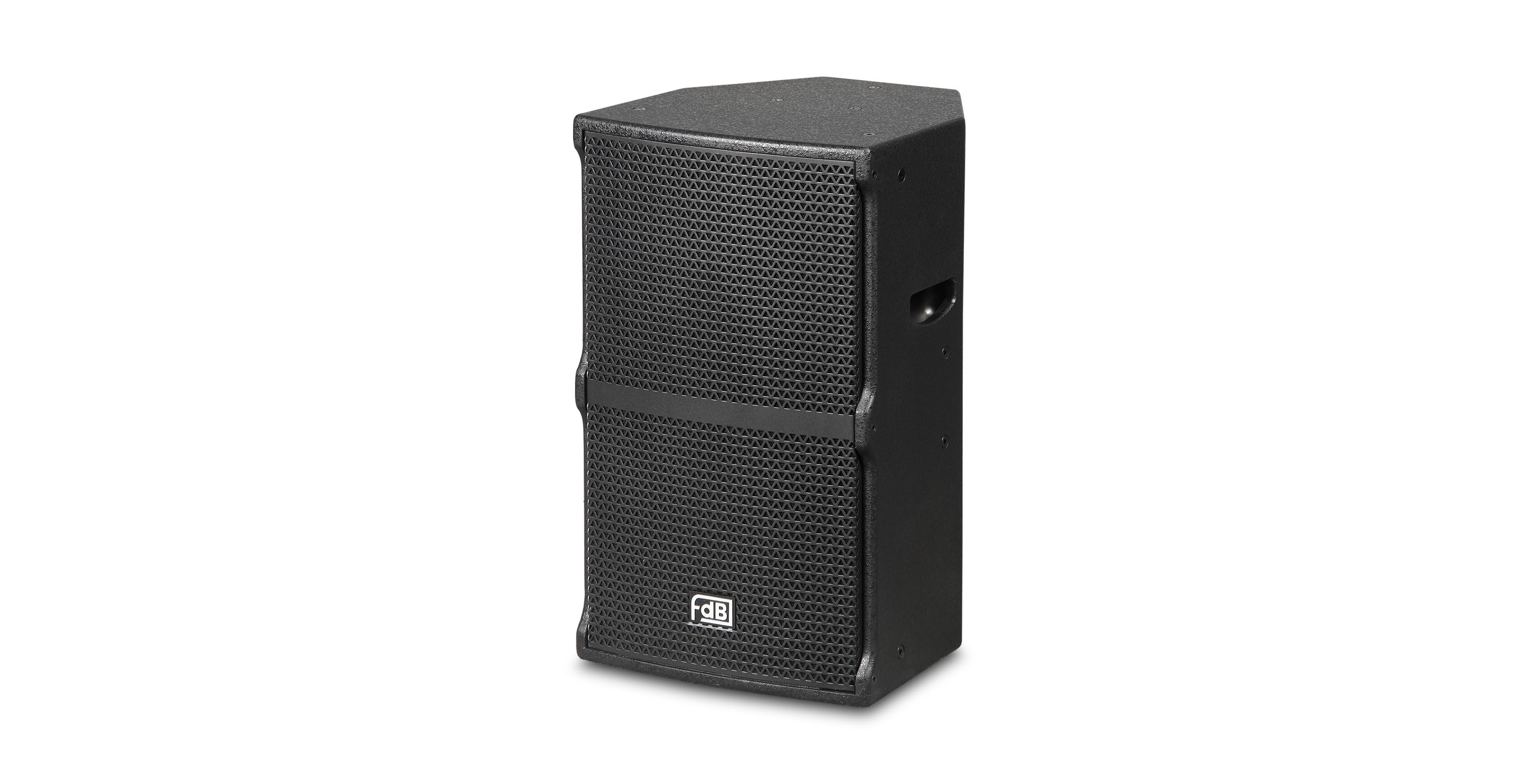

The QS12Ⅱ is the ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality.
