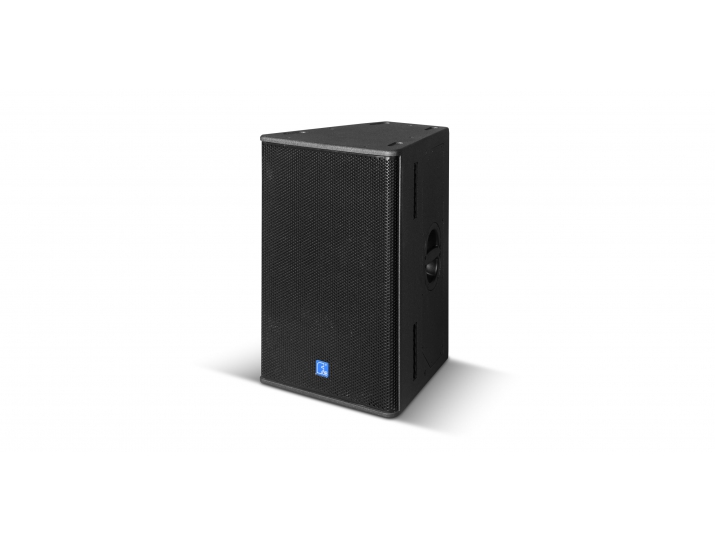

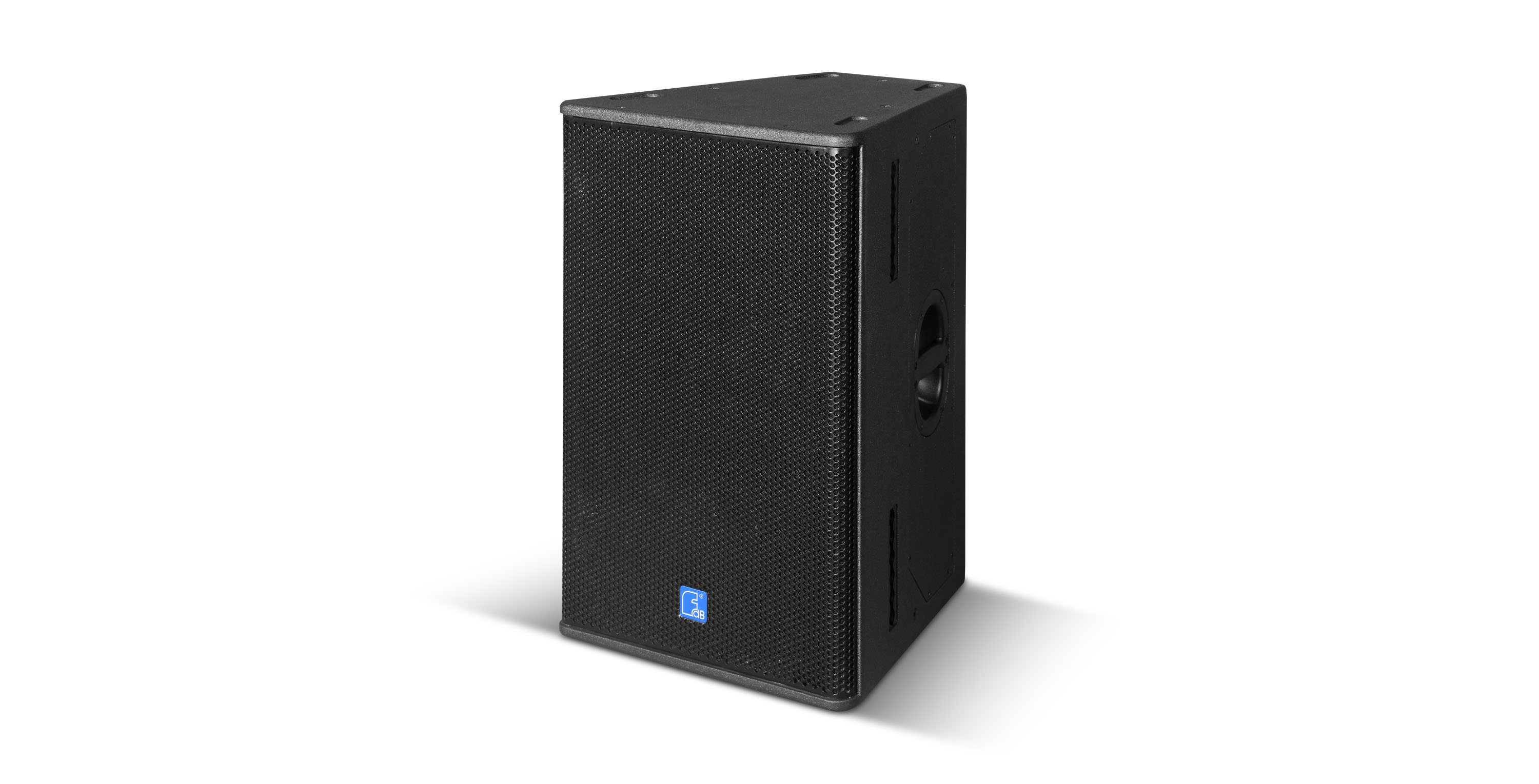

TH312/TH312A
Mid-range Multi-function Speaker
Contact
Features
● Compact cabinet design
● All horn-loaded design
● High SPL
● Applications: theatres, concert halls, multifunction halls, lecture halls, bars, live houses, large-scale sound reinforcement and touring
| MODEL | TH312 | TH312A |
| FREQUENCY RESPONSE(-3dB) | 65Hz-18kHz | 65Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 60Hz-20kHz | 60Hz-20kHz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF | 2×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 600W RMS,2400W peak | 300W/8Ω+1200W/4Ω |
| SENSITIVITY | 103dB 1watt/1meter | -- |
| MAXIMUM SPL | 131dB continuous,137dB peak | 131dB continuous,137dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| DISPERSION(-6dB) | 60°×40° | 60°×40° |
| CROSSOVER FREQUENCIES | 1.3kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 530mm×530mm×795mm | 530mm×530mm×795mm |
| NET WEIGHT | 32 kg/pc | 35 kg/pc |
| GROSS WEIGHT | 37 kg/pc | 40 kg/pc |
TH312%26TH312A-2023
Description
TH312 is a dual 12",big power, high sensitivity, high SPL, long-throw speaker. Mid-bass and HF driver all feature horn-loaded design. Unit configuration: 2x12" high efficiency neodymium mid-bass units, 1x1.4" exit throat 75mm voice coil neodymium HF driver. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. TH312A is equipped with two channels digital amplifier with DSP based on TH312 to be an active speaker.
