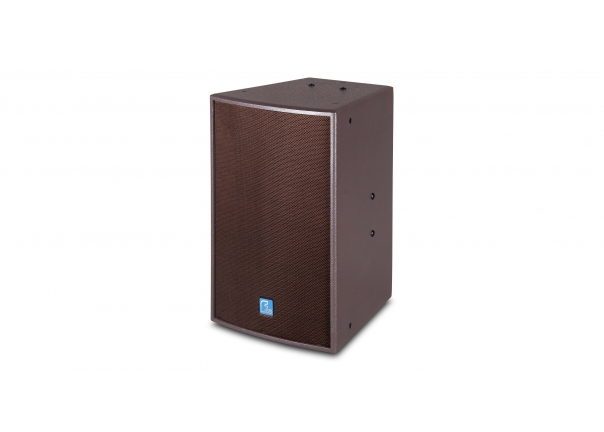

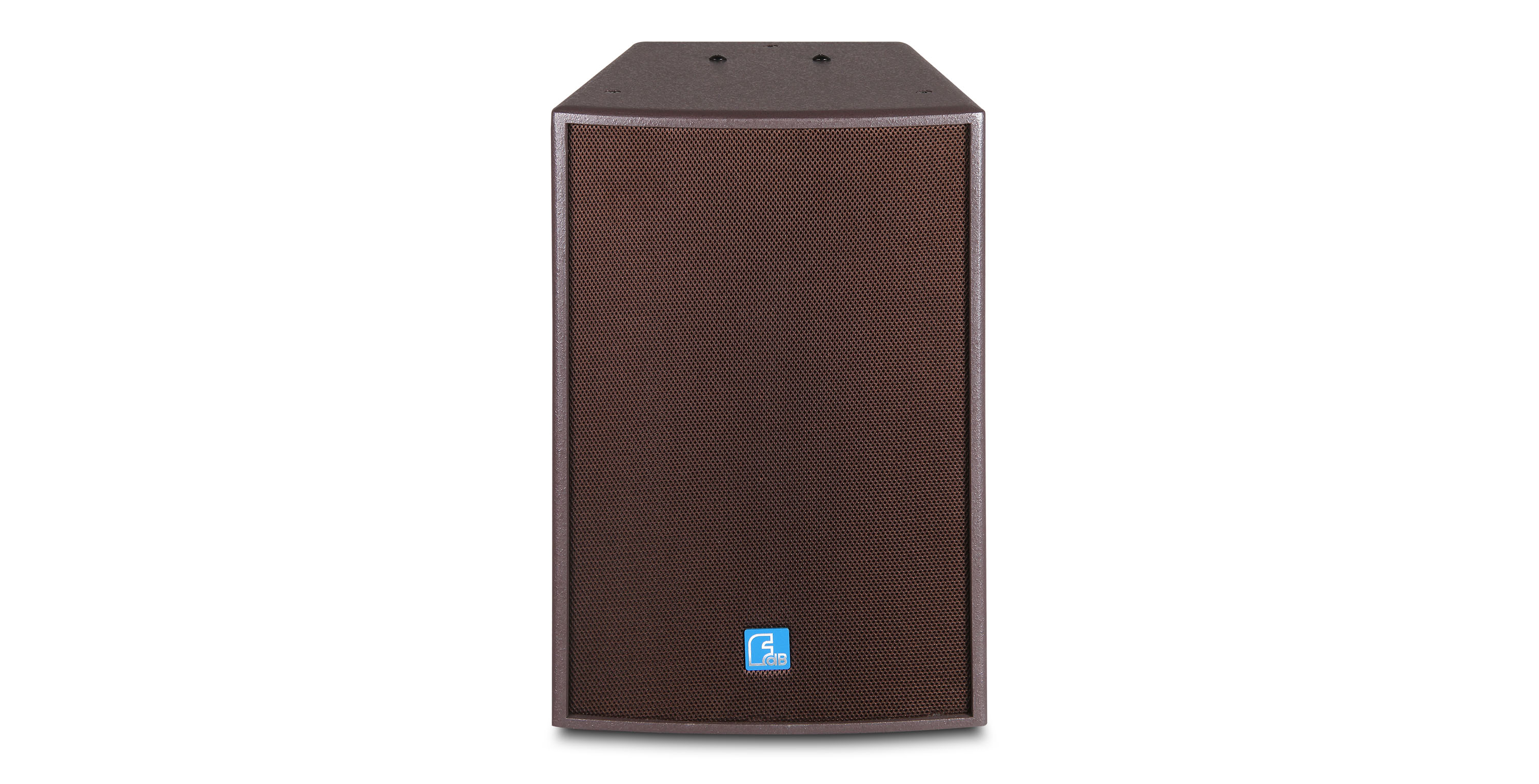

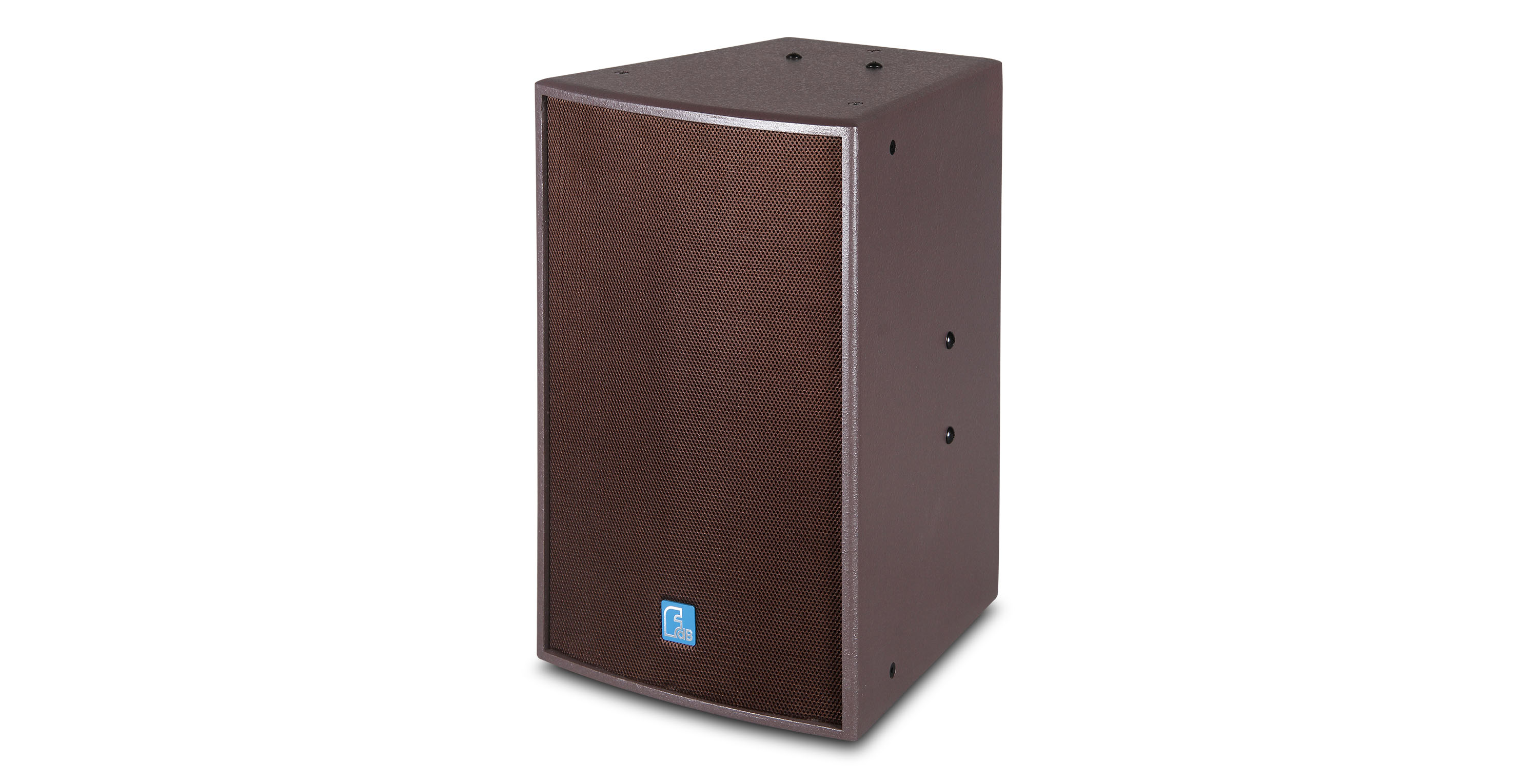

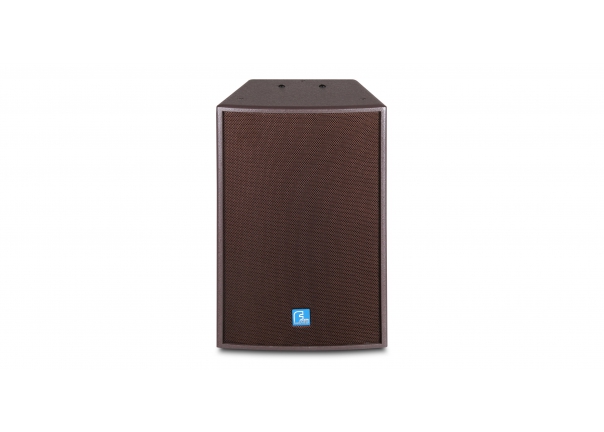

KH12
Entertainment Series
Contact
Features
● High quality unit configuration
● Rotatable horn
● Multi-hanging points to meet different demands of installation
● Back vented design with rich bass sound
● Applications: KTV entertainment
| MODEL | KH12 |
| FREQUENCY RESPONSE(-3dB) | 45Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 40Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1"(25mm) / 1.7"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 122dB continuous,128dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 100° x 70° |
| CROSSOVER FREQUENCIES | 2KHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 490mm×475mm×695mm |
| NET WEIGHT | 22 kg/pc |
| GROSS WEIGHT | 25 kg/pc |
20230502161525_52091
Description

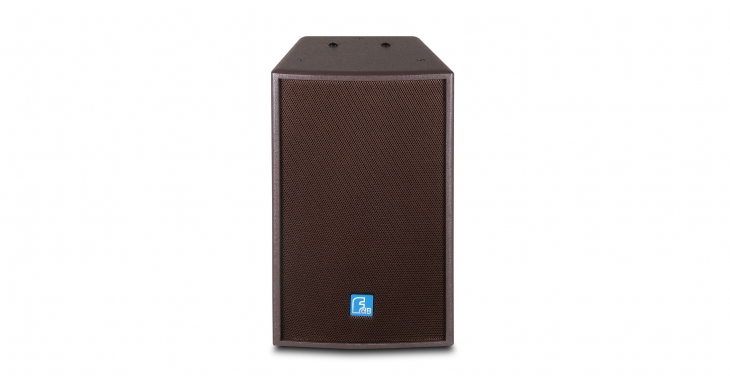

The KH12 is a special designed for KTV fixed installation, two way full range speaker, in the human music listening sense has a good performance. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 100°×70° rotatable horn. The cabinet is made of multilayer composite plywood with water-based environmental protection paint.
