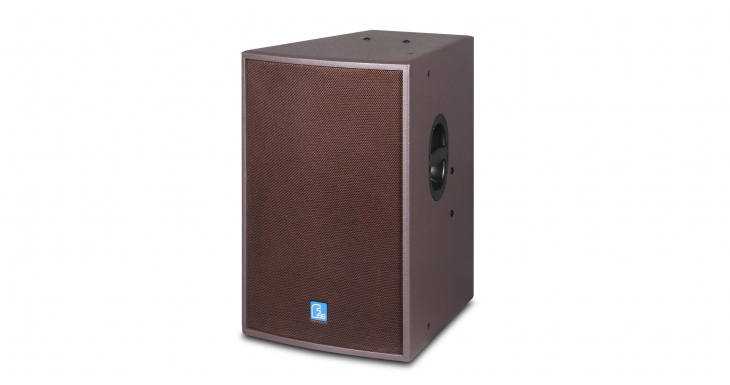

KH10
Entertainment Series
Contact
Features
●High quality unit configuration
●Rotatable horn
●Multi-hanging points to meet different demands of installation
●Back vented design with rich bass sound
●Applications: KTV entertainment
| MODEL | KH10 |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 50Hz-20kHz |
| DRIVERS | 1×10"(250mm)/2.5"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 96dB 1watt/1 metre |
| MAXIMUM SPL | 120dB continuous,126dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 100°×70° |
| CROSSOVER FREQUENCIES | 2.2kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 428mm×410mm×619mm |
| NET WEIGHT | 16 kg/pc |
| GROSS WEIGHT | 18 kg/pc |
20230502161422_16300
Description
The KH10 is a special designed for KTV fixed installation, two way full range speaker, in the human music listening sense has a good performance. Unit configuration: 1x10" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 100°×70° rotatable horn. The cabinet is made of multilayer composite plywood with water-based environmental protection paint.
