LH10II
Portable Speaker
Contact
Features
●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: speech reinforcement, conference rooms, multifunction halls,high-end hotel clubs, touring, band reinforcement and monitor speaker
| MODEL | LH10Ⅱ |
| FREQUENCY RESPONSE(-3dB) | 60 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 55 Hz-20kHz |
| DRIVERS | 1×10"(250mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 96dB 1watt/1 metre |
| MAXIMUM SPL | 120dB continuous,126 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 391mm×380mm×605mm |
| NET WEIGHT | 13 kg/pc |
| GROSS WEIGHT | 14 kg/pc |
LH10II-2023
Description

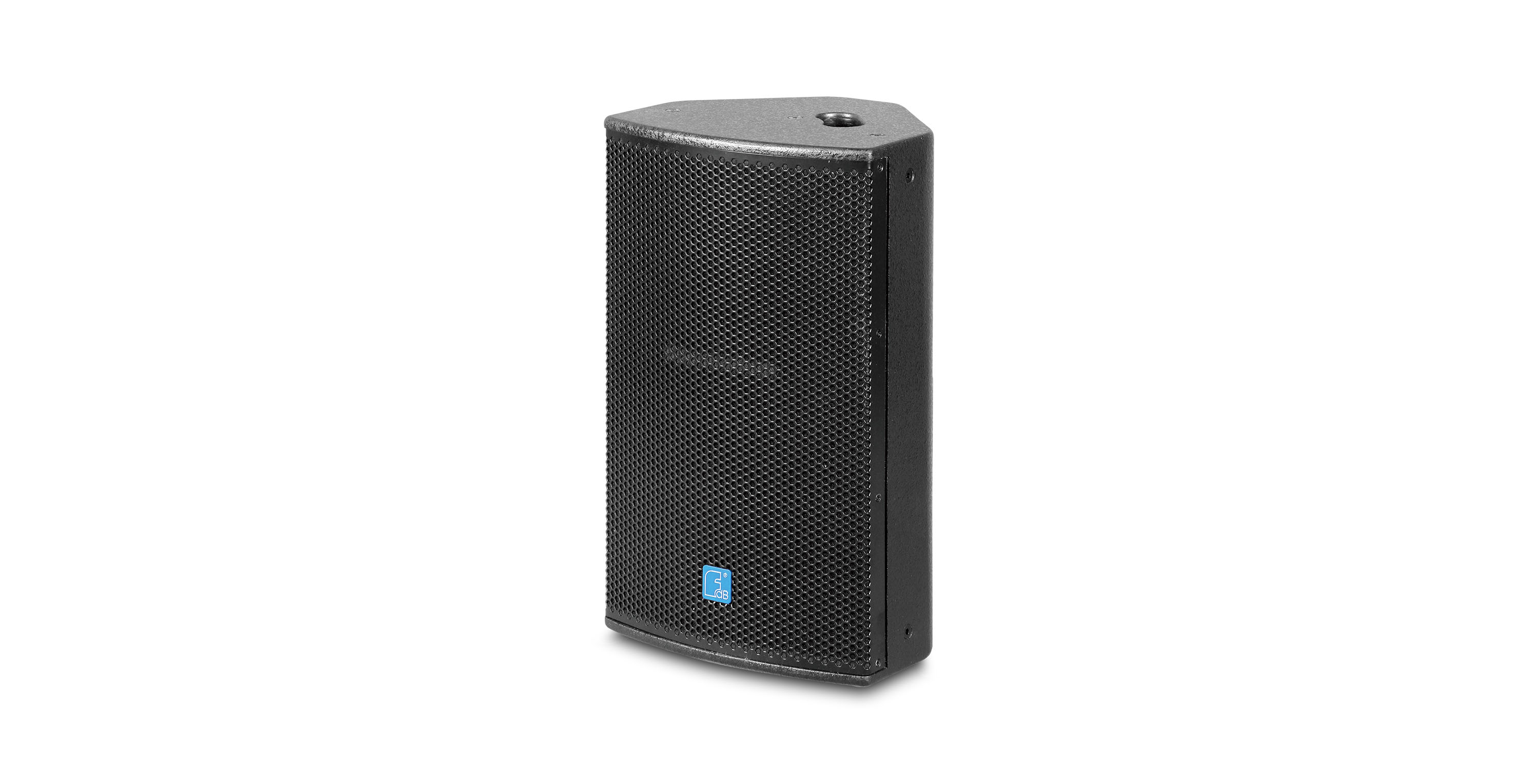

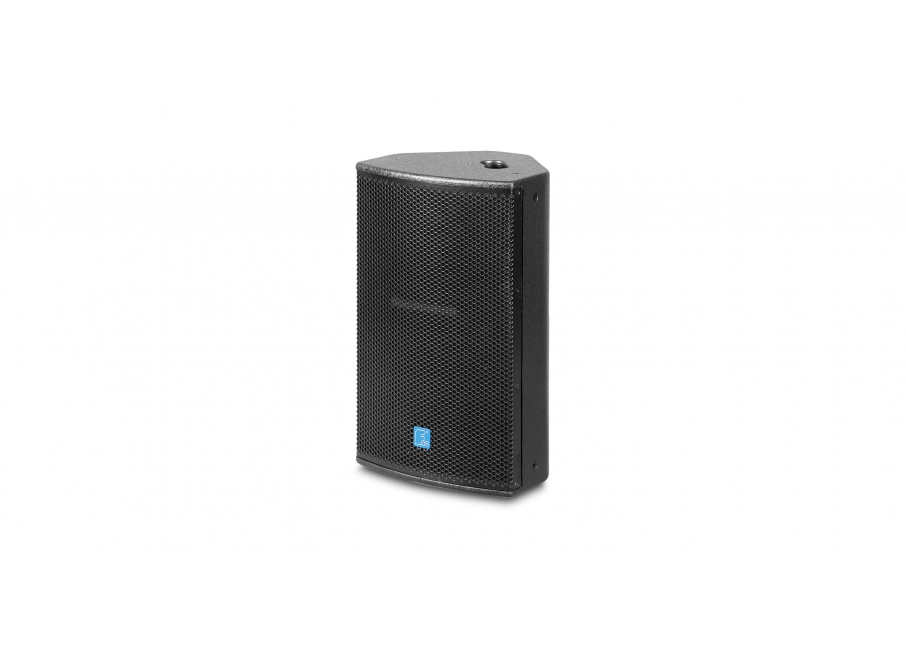

The LH10Ⅱis a 10", small sized, light weight, high SPL, two way full range speaker with clear and bright sound. Unit configuration: 1x10" high efficiency neodymium mid-bass unit, 1x1" exit throat 44mm neodymium poliyimide diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
