MLA206
Line Arrays
Contact
Features
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight,but with high SPL
●Convenient for hanging and stacking
●Good used for moving performance,small scale theater and band
| MODE | MLA206 |
| LFREQUENCY RESPONSE(-3dB) | 90Hz-18kHz |
| LFREQUENCY RESPONSE(-10dB) | 85Hz-20kHz |
| DRIVERS | 2×6"(150mm)/1.5"voice coil LF 1×1"(25mm)/1.7"voice coil HF |
| RATED POWER | 160W RMS,640W peak |
| SENSITIVITY | 96dB 1watt/1 metre |
| MAXIMUM SPL | 118 dB continuous,124 dB peak |
| IMPEDANCE | 16 ohms nominal |
| DISPERSION(-6dB) | Horizontal covrage:110° Vertical coverage: Varies, depending on array length andconfiguration |
| CROSSOVER FREQUENCIES | 1.9kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 412mm×270mm×565mm |
| NET WEIGHT | 9 kg/pc |
| GROSS WEIGHT | 11 kg/pc |
MLA206
Description

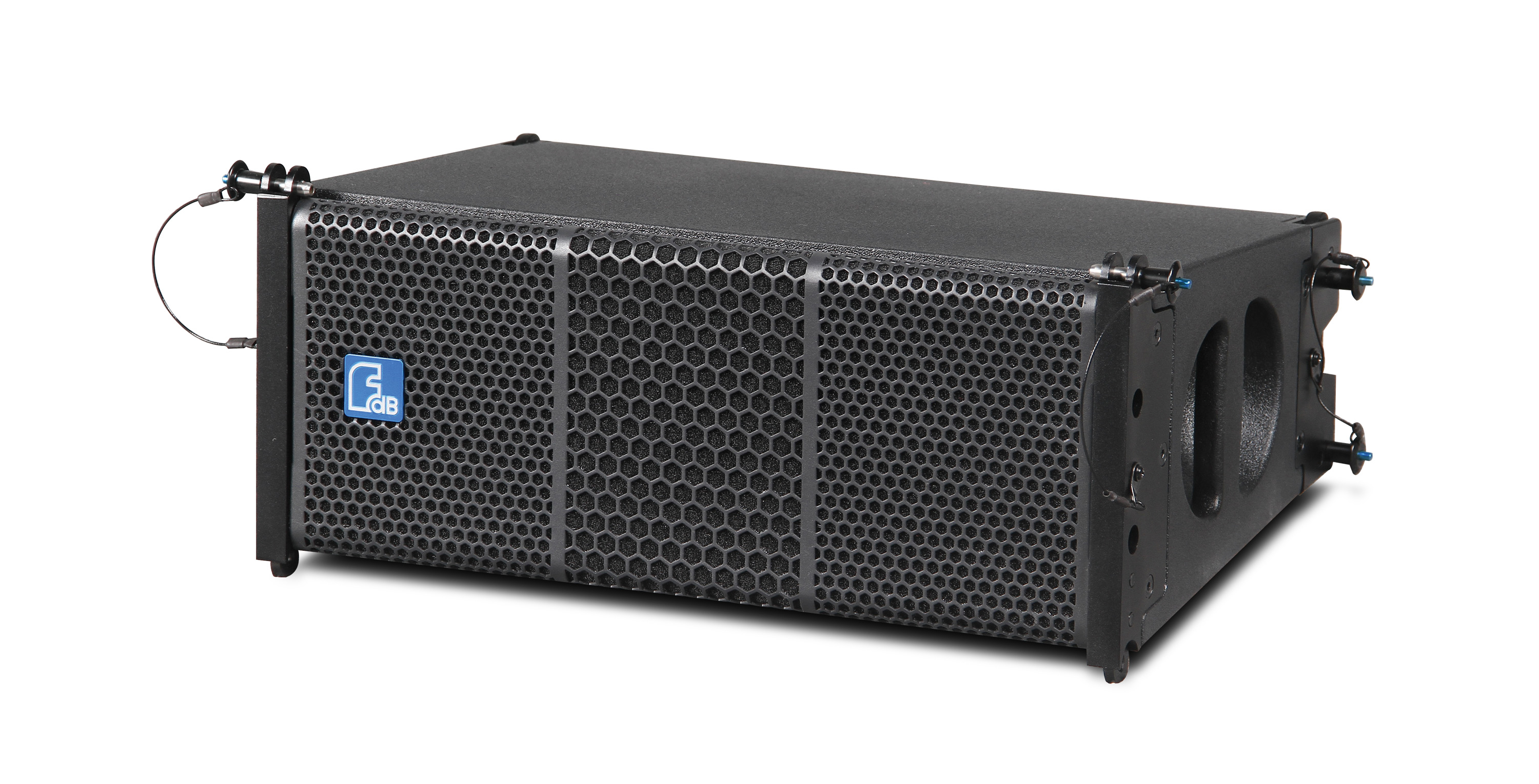

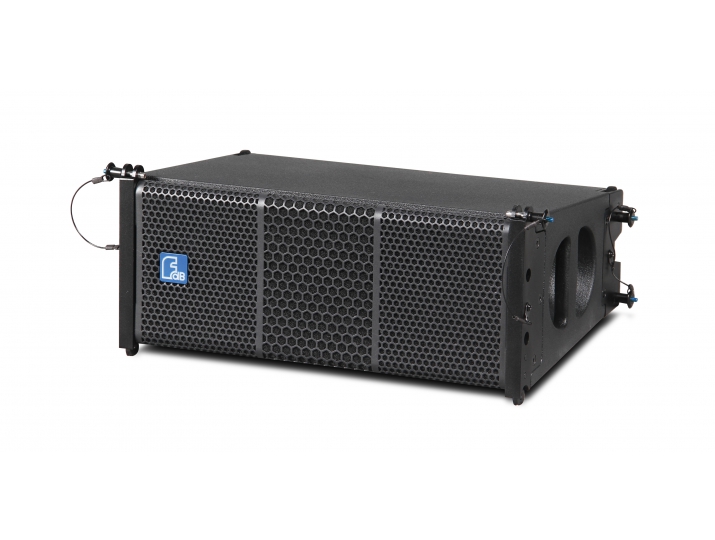

The MLA206 is a mini line array loudspeaker for small and medium scale sound reinforcement, fitted with two 6" LF neodymium drivers and one 1" neodymium HF driver coupled to a patent line array horn, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy.
