MLA406/MLA406A
Line Arrays
Contact
Features
●High quality plywood with special environmental protection paint
●High quality neodymium components
●Patent line array horn
●Bi-amp and passive way choice
●Small cabinet with light weight
●Convenient for tripod and fixed installation
●Good used for conference rooms, mutli-purpose halls, high-end hotels and moving performances
| MODE | MLA406 | MLA406DA |
| LFREQUENCY RESPONSE(-3dB) | 80Hz-18KHz | 80Hz-18KHz |
| LFREQUENCY RESPONSE(-10dB) | 75Hz-20KHz | 75Hz-20KHz |
| DRIVERS | 4x6"(160mm)/1.5"voice coil LF 2x1"(25mm)/1.7"voice coil HF |
4x6"(160mm)/1.5"voice coil LF 2x1"(25mm)/1.7"voice coil HF |
| RATED POWER | 320W RMS,1280W peak | 600W/8Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 124dB continuous,130dB peak | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | Horizontal coverage:110°, Vertical coverage: varies, depending on arry length and configuration |
Horizontal coverage:110°, Vertical coverage: varies, depending on arry length and configuration |
| CROSSOVER FREQUENCIES | 700Hz,1.9kHz passive | - |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 490mmx410mmx577mm | 490mmx410mmx577mm |
| NET WEIGHT | 17 kg/pc | 19 kg/pc |
| GROSS WEIGHT | 21 kg/pc | 23 kg/pc |
MLA406-MLA406DA
Description

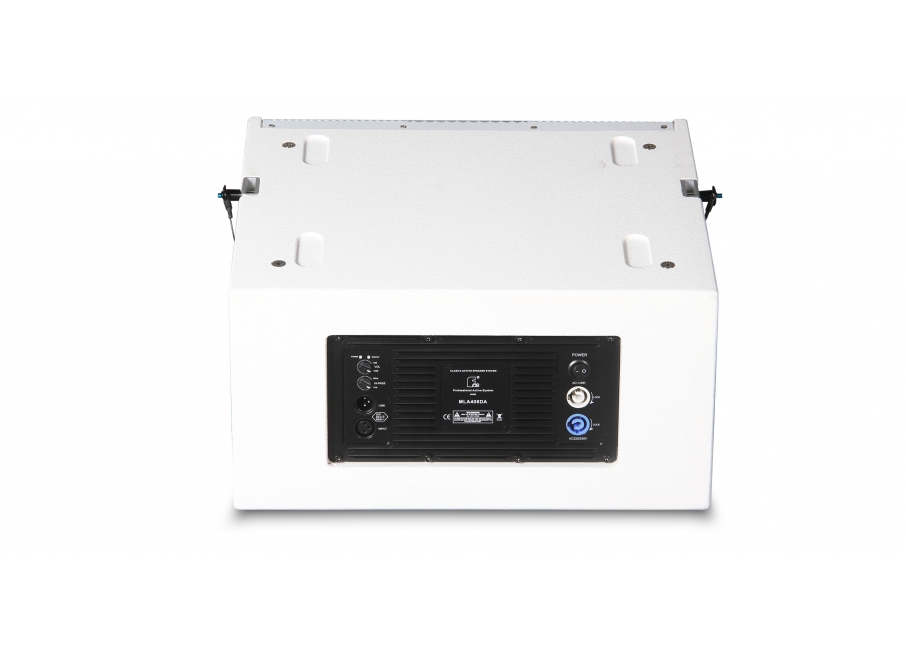

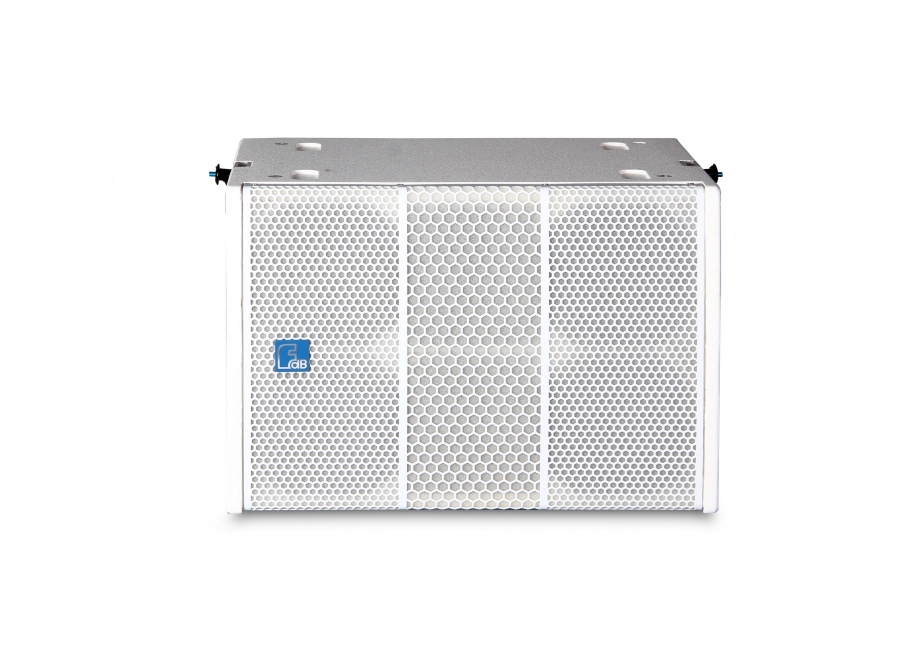

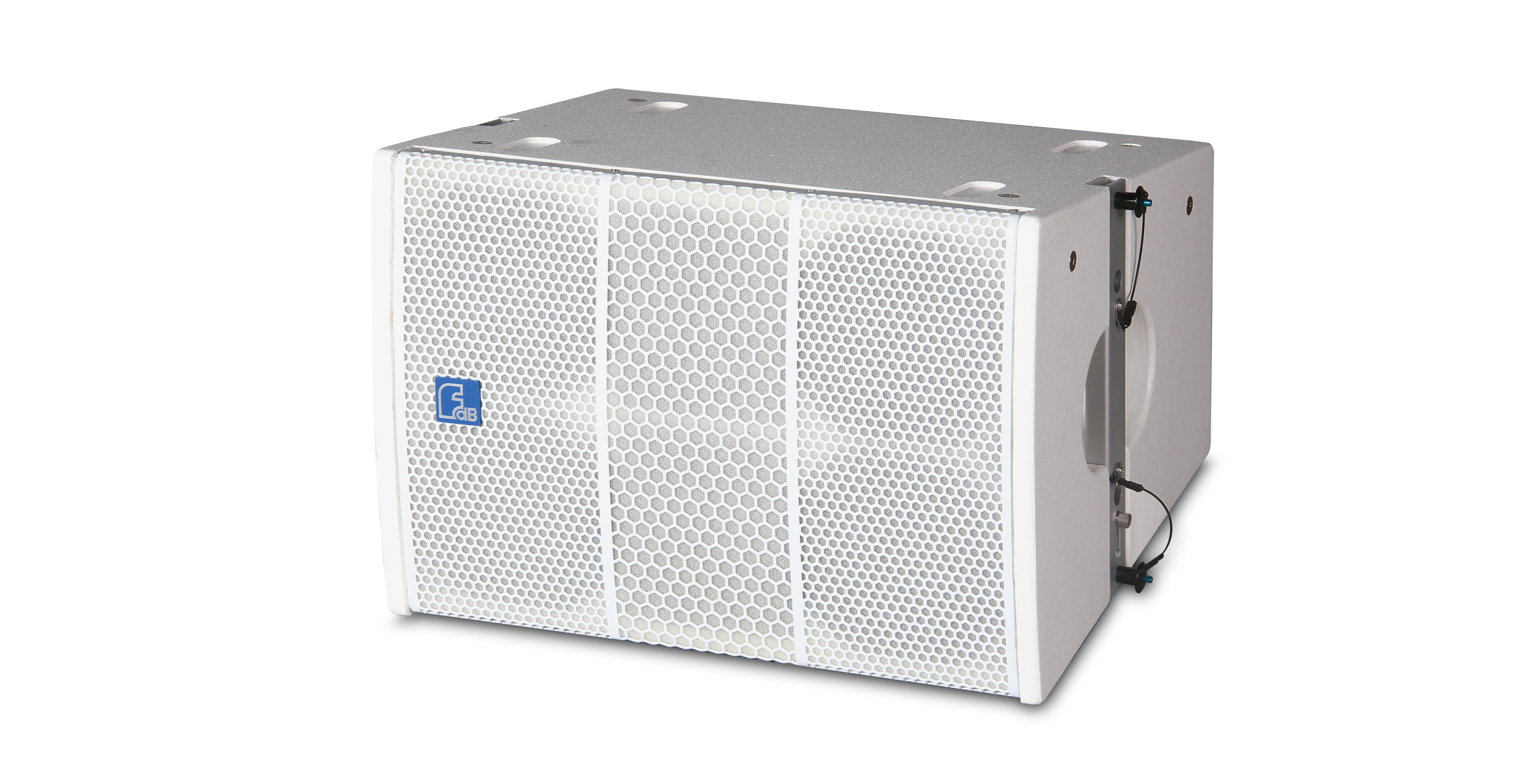

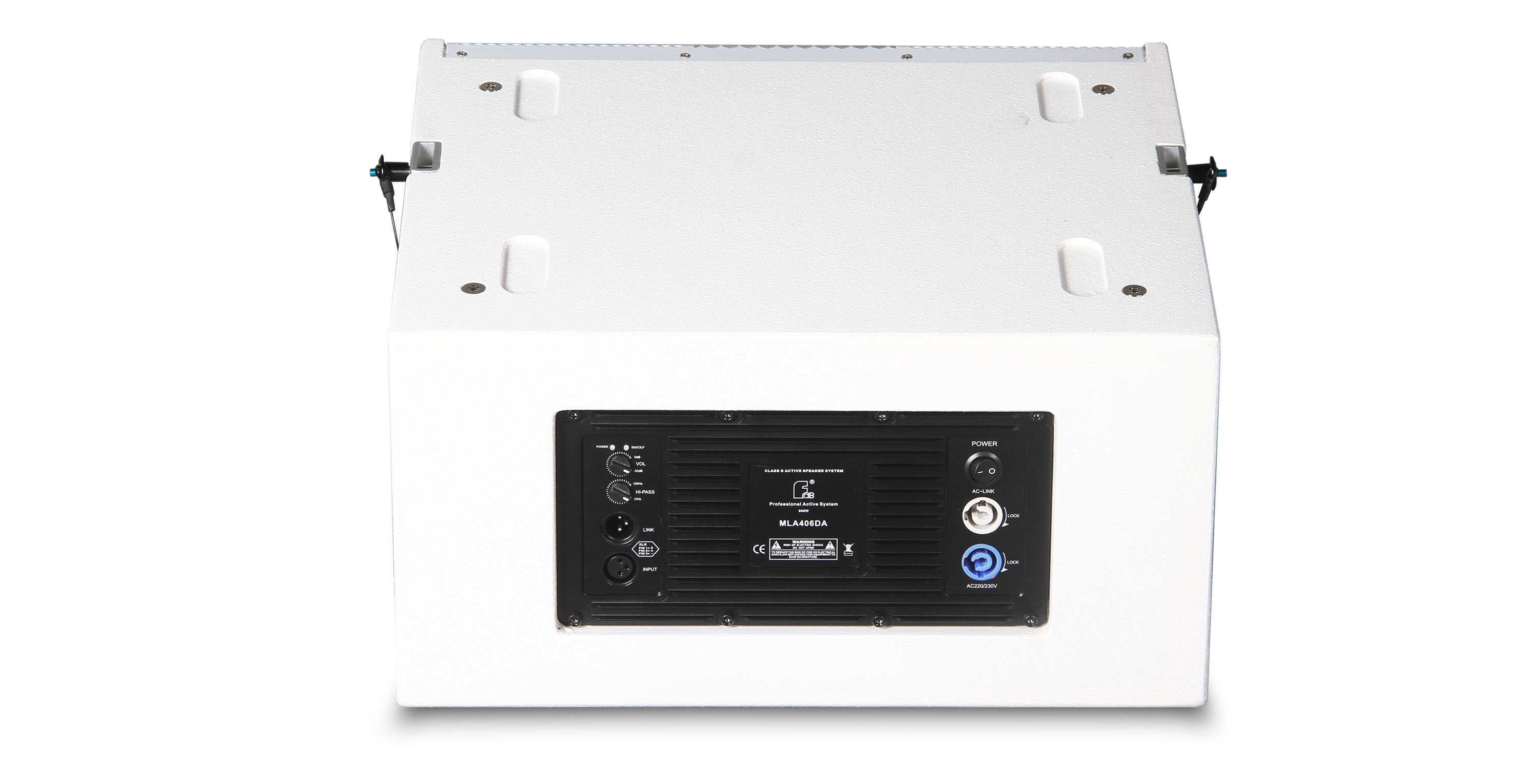

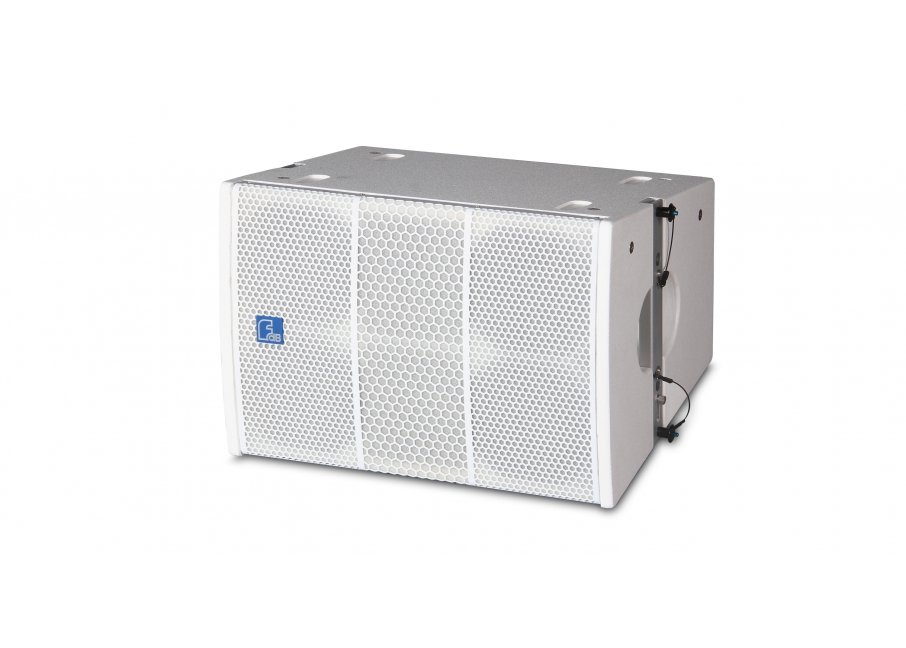

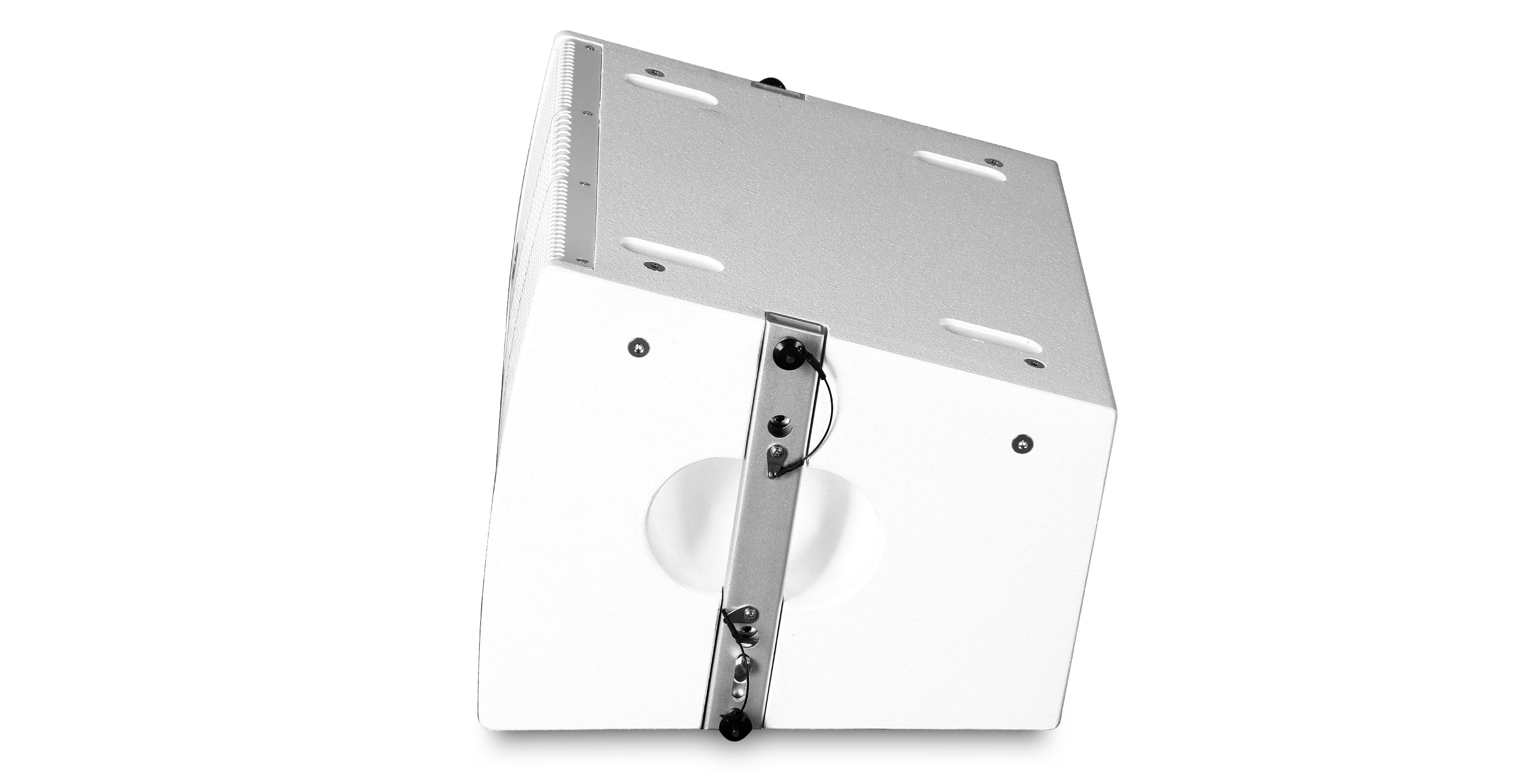

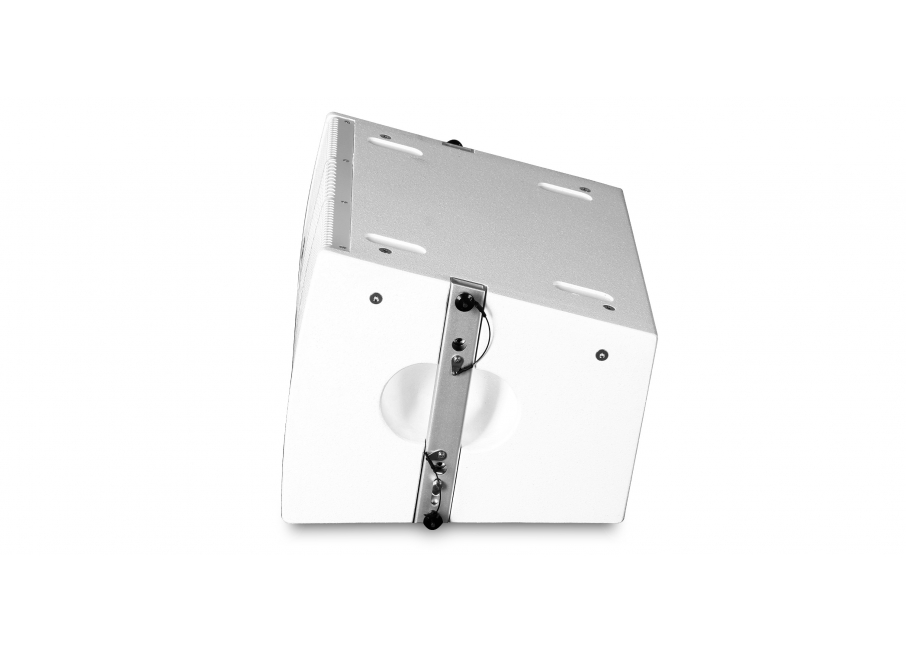

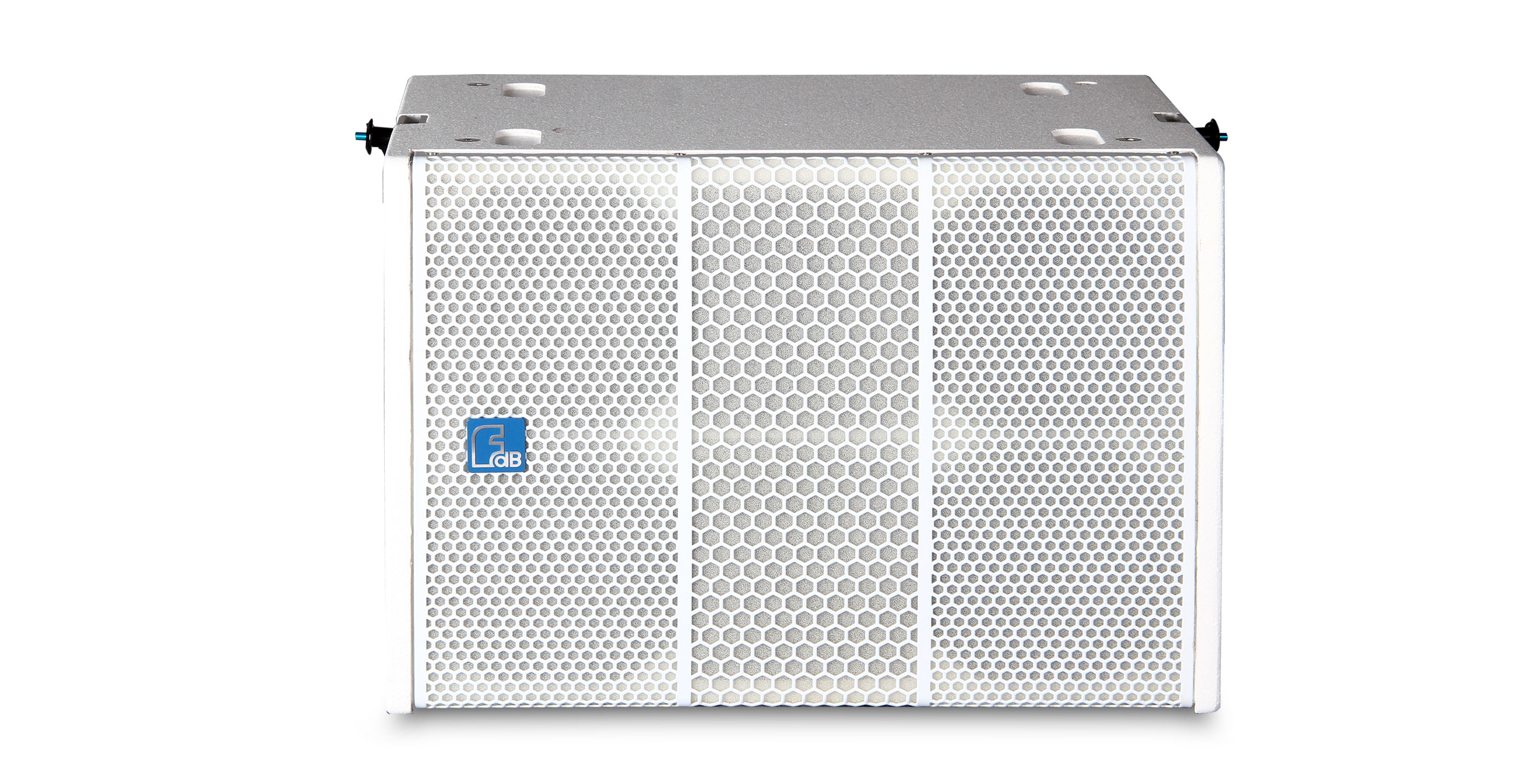

The MLA406 is a mini line array loudspeaker for small and medium scale sound reinforcement. MLA406 is a 2.5-way design housing fitted with four 6" neodymium LF drivers and two 1" neodymium HF drivers coupled to a patent line array horn, made of high quality plywood with special environmental protection paint. MLA406A is equipped FA1.6 digital amplifier module to be active loudspeaker based on MLA406.
