MODEL |
MR115/ MR115N |
MR115A/ MR115NA |
FREQUENCY RESPONSE(-3dB) |
70Hz-18kHz |
70Hz-18KHz |
FREQUENCY RESPONSE(-10dB) |
65Hz-20kHz |
65Hz-20kHz |
DRIVERS |
1×15"(385mm)/3"voice coil LF |
1×15"(385mm)/3"voice coil LF |
|
1×1"(25mm)/1.7"voice coil HF |
1×1"(25mm) / 1.7"voice coil HF |
RATED POWER |
400W RMS,1600W peak |
600W/8Ω |
SENSITIVITY |
97dB 1watt/1 metre |
-- |
MAXIMUM SPL |
124dB continuous,130dB peak |
124dB continuous,130dB peak |
IMPEDANCE |
8 ohms nominal |
-- |
DISPERSION(-6dB) |
70°× 40° |
70° × 40° |
CROSSOVER FREQUENCIES |
2.2kHz passive |
-- |
INPUT CONNECTORS |
2×Speakon NL4 |
INPUT TYPE:Balanced Differential line |
PACKAGE SIZE |
610mm×460mm×635mm |
610mm×460mm×635mm |
NET WEIGHT |
26 kg/pc; 22 kg/pc |
28 kg/pc; 24kg/pc |
GROSS WEIGHT |
31 kg/pc; 27 kg/pc |
33 kg/pc; 29kg/pc |
Description

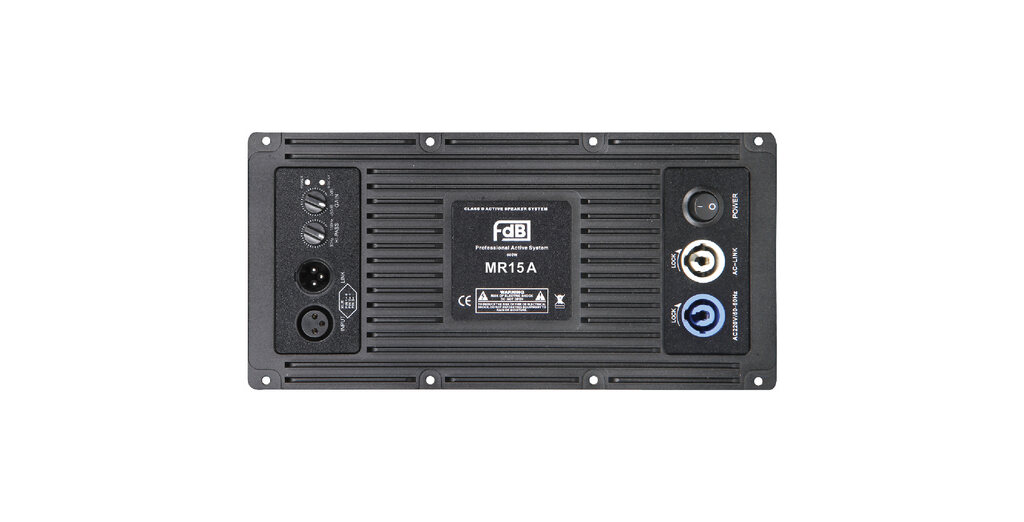

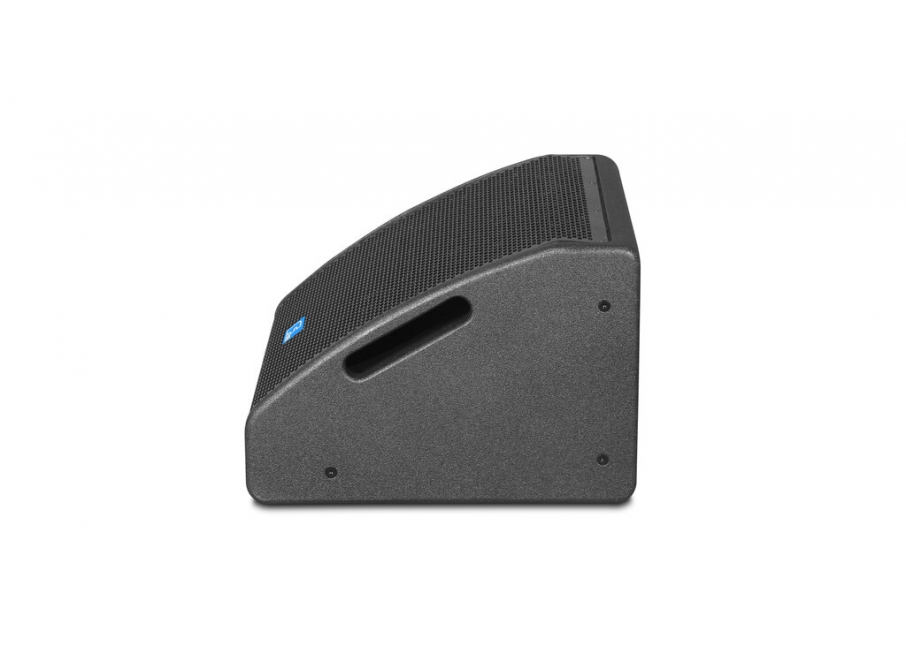

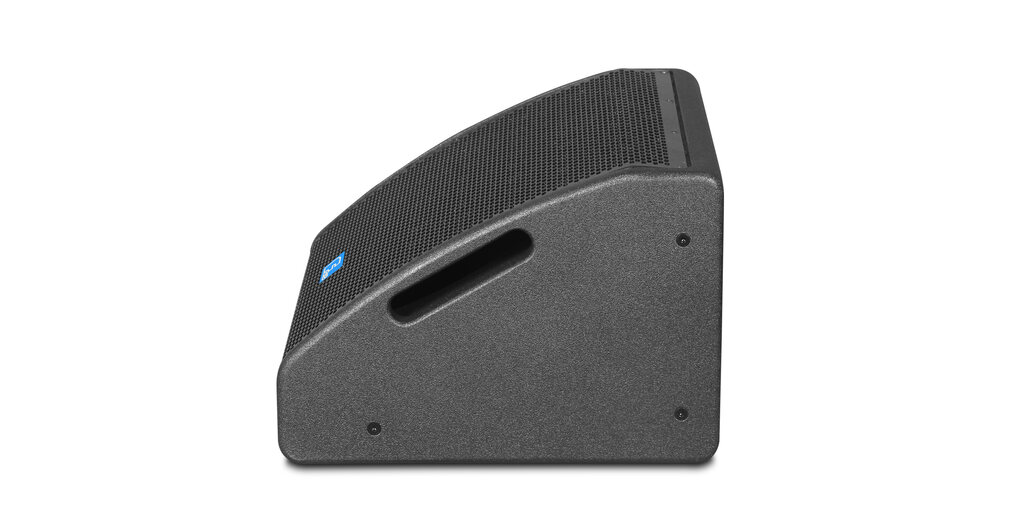

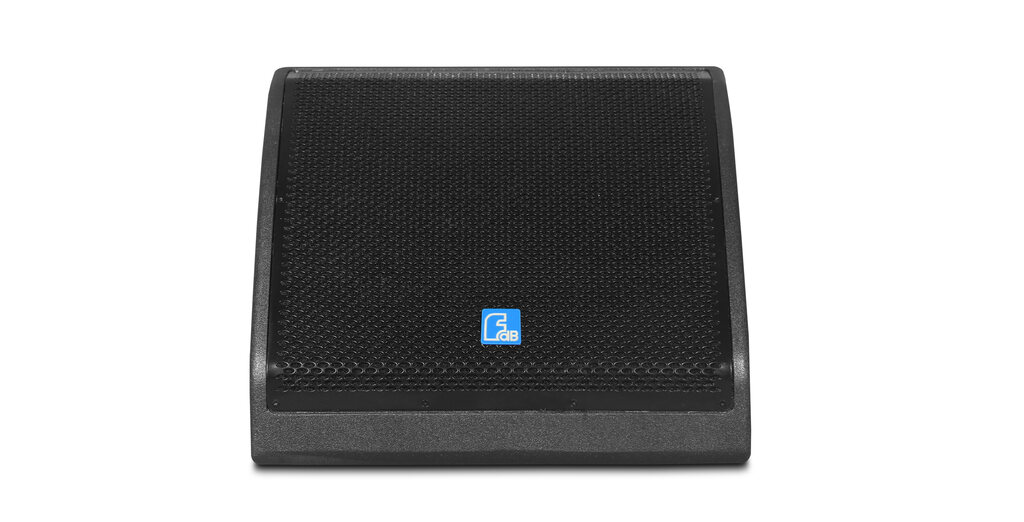

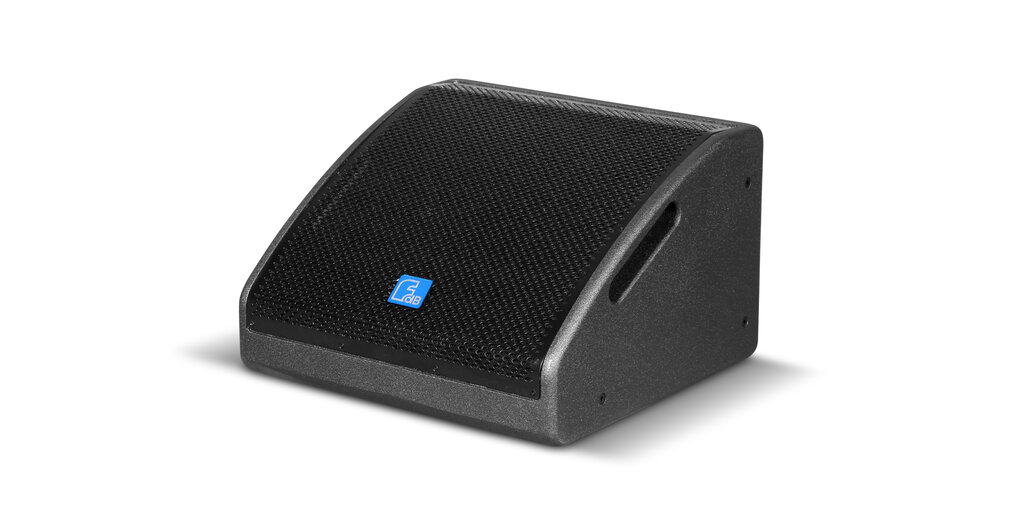

MR115 is compact, small height size, coaxial ,15" two-way full range monitor series speaker with different configurations, has balanced and real sound quality. Configuration:1x15" high efficency mid-bass unit and 1x1" exit throat 44mm voice coil HF driver with special designed horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. The model with N is a neodymium magnetic unit, and the model with A is active.
