S208
Multi-Purpose Speaker
Contact
Features
●Clear and soft sound
●Multi-ways for installation
●Applications: conference rooms,multifunction halls, classrooms
| MODEL | S208 |
| FREQUENCY RESPONSE(-3dB) | 80 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 75Hz-20KHz |
| DRIVERS | 2×8"(200mm)/2"voice coil LF |
| 1×1"(25mm)/1.4"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 96dB 1watt/1meter |
| MAXIMUM SPL | 120dB continuous,126dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 300Hz, 3kHz passive |
| INPUT CONNECTORS | Covered barrier strip terminals |
| PACKAGE SIZE | 344mm×340mm×560mm |
| NET WEIGHT | 14 kg/pc |
| GROSS WEIGHT | 16 kg/pc |
S208-2023
Description

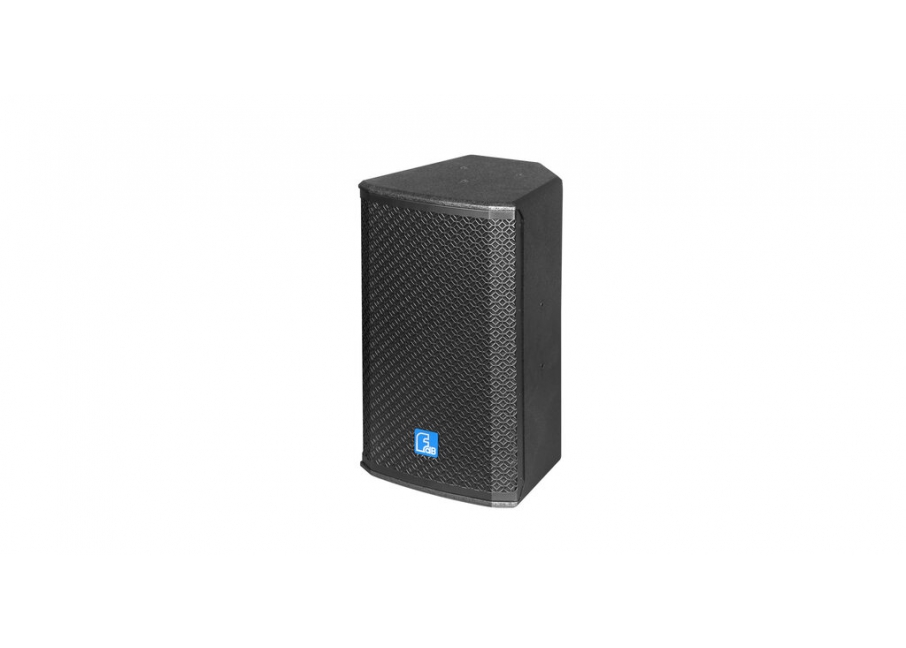

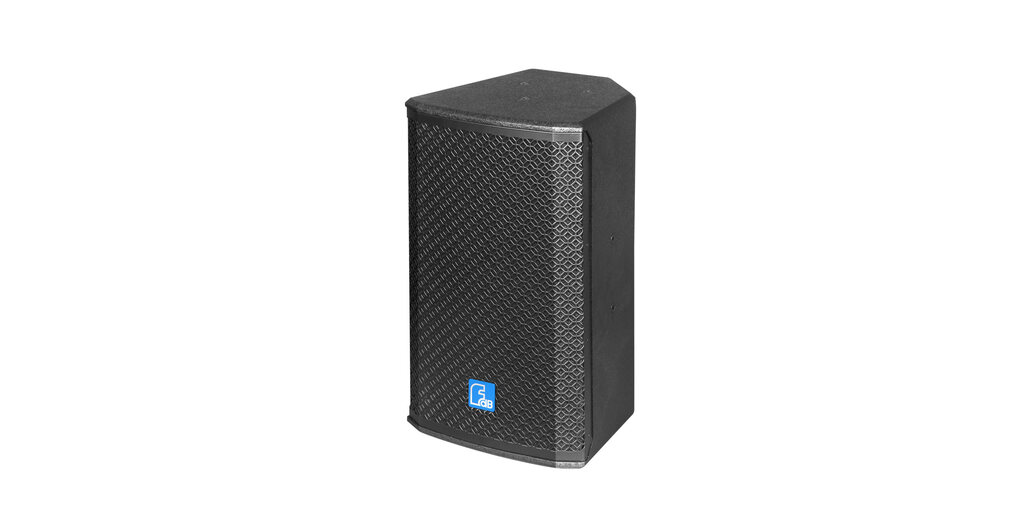

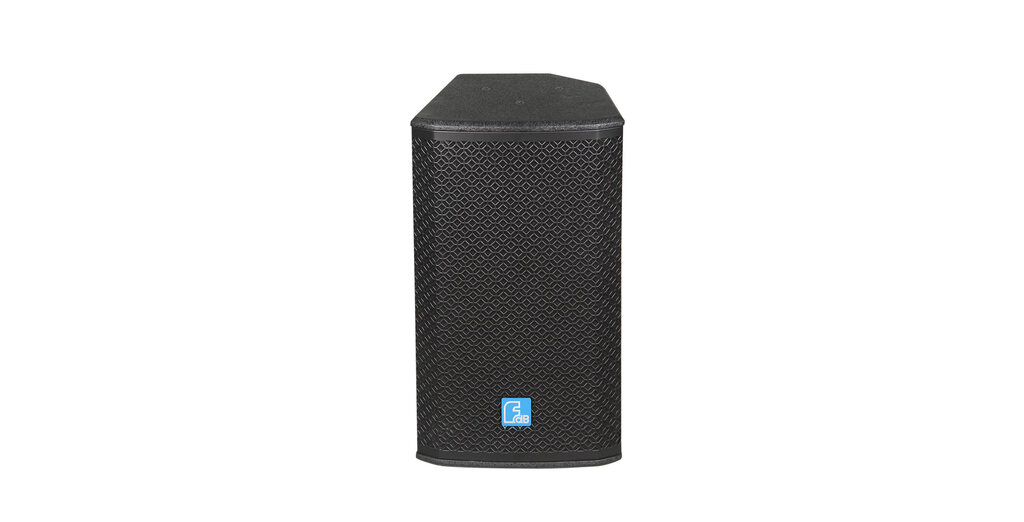

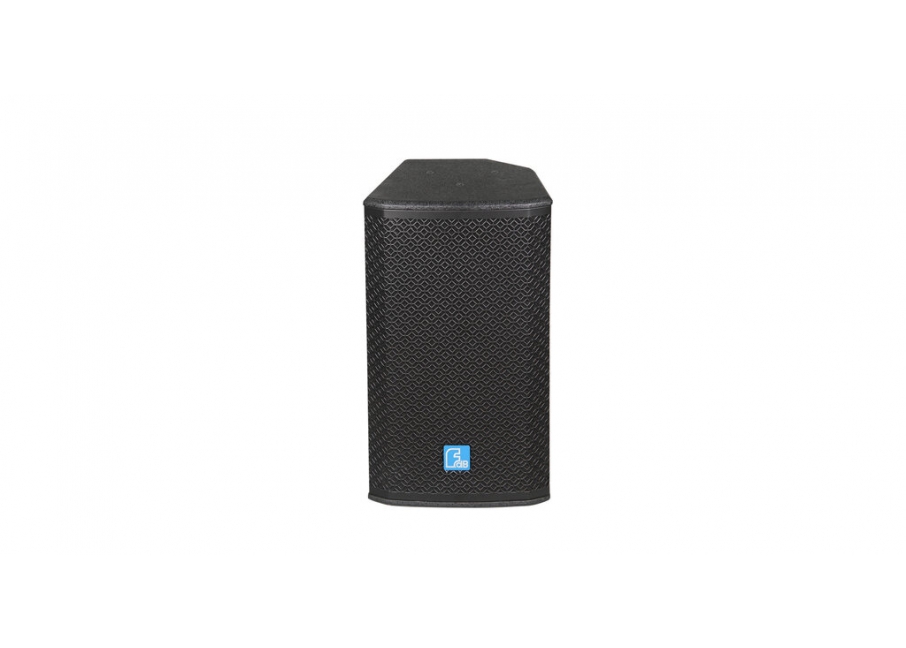

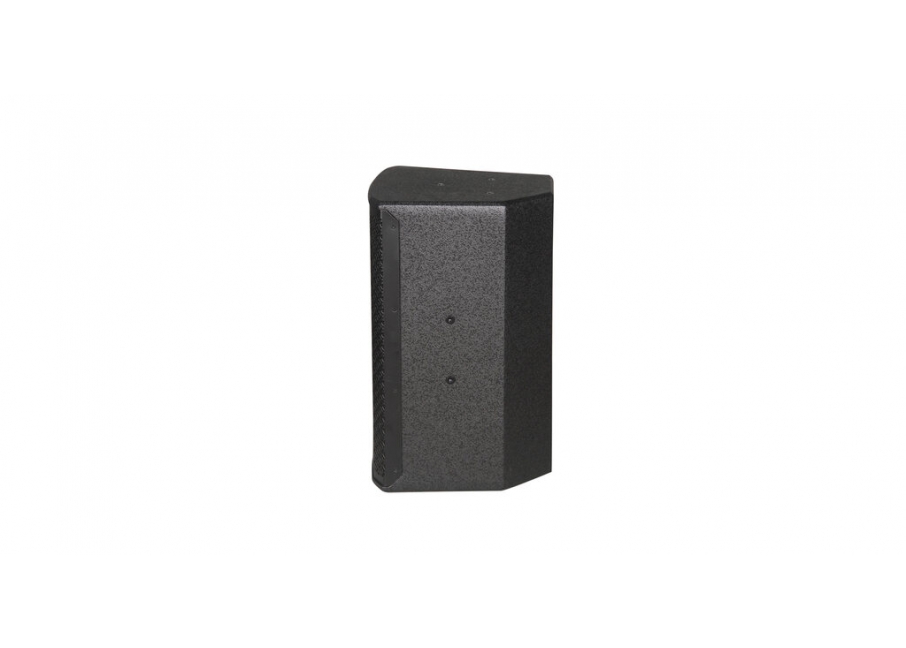

The S208 is a 2x8", small sized, light weight, two way full range speaker with clear and soft sound. Unit configuration: 2x8" high efficiency mid-bass unit, 1x1" exit throat 34mm polyester diaphragm HF driver coaxial unit. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
