U108VI
Professional Speaker
Contact
Features
●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: speech reinforcement, conference rooms, background music, bars and monitor speaker for small stage
| MODEL | U108VI |
| FREQUENCY RESPONSE(-3dB) | 60 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 55 Hz-20kHz |
| DRIVERS | 1×8"(200mm)/2"voice coil LF |
| 1×1"(25mm)/1"voice coil HF | |
| RATED POWER | 150W RMS,600W peak |
| SENSITIVITY | 93dB 1watt/1 metre |
| MAXIMUM SPL | 115dB continuous,121 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2.8kHz passive |
| INPUT CONNECTORS | Covered barrier strip terminals |
| PACKAGE SIZE | 330mm×320mm×540mm |
| NET WEIGHT | 10 kg/pc |
| GROSS WEIGHT | 12 kg/pc |
U108VI-2023
Description

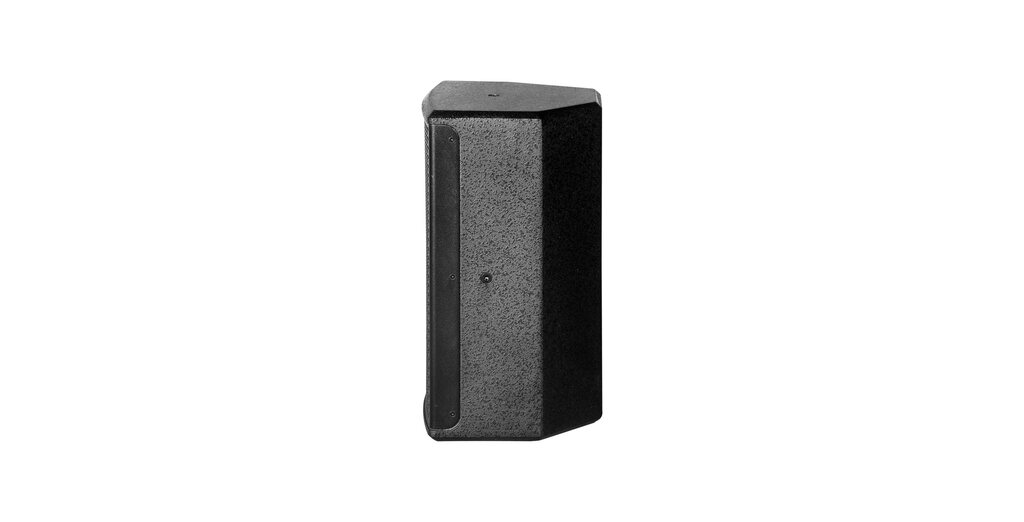

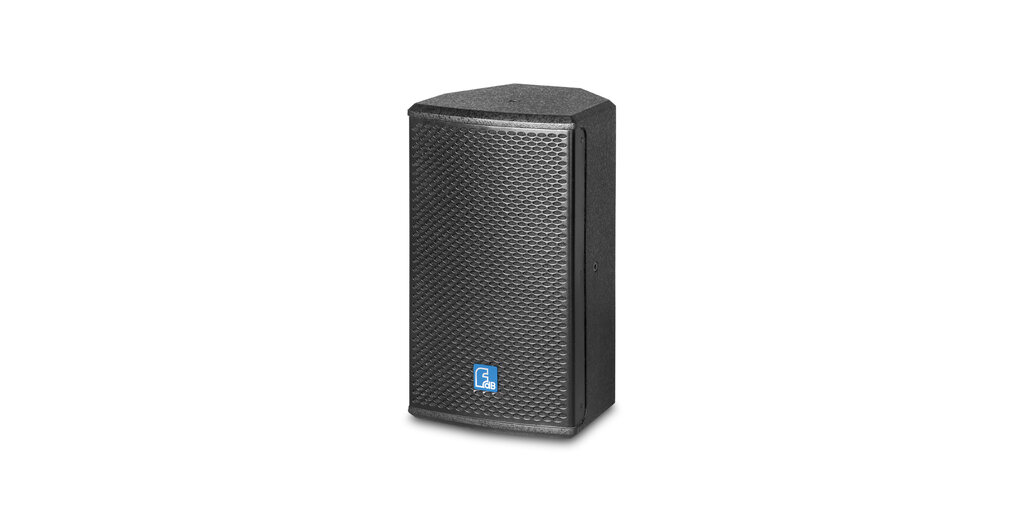

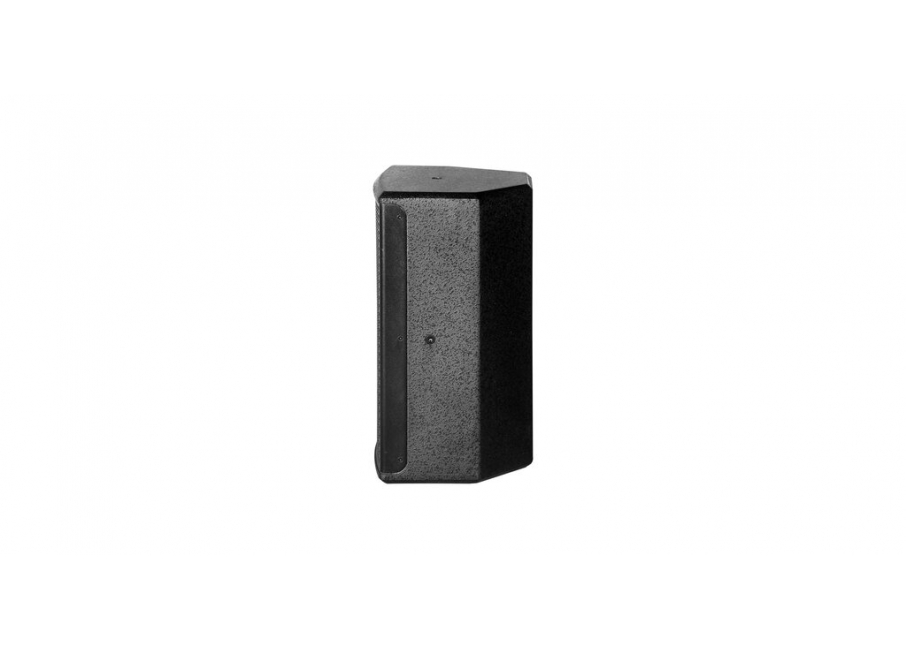

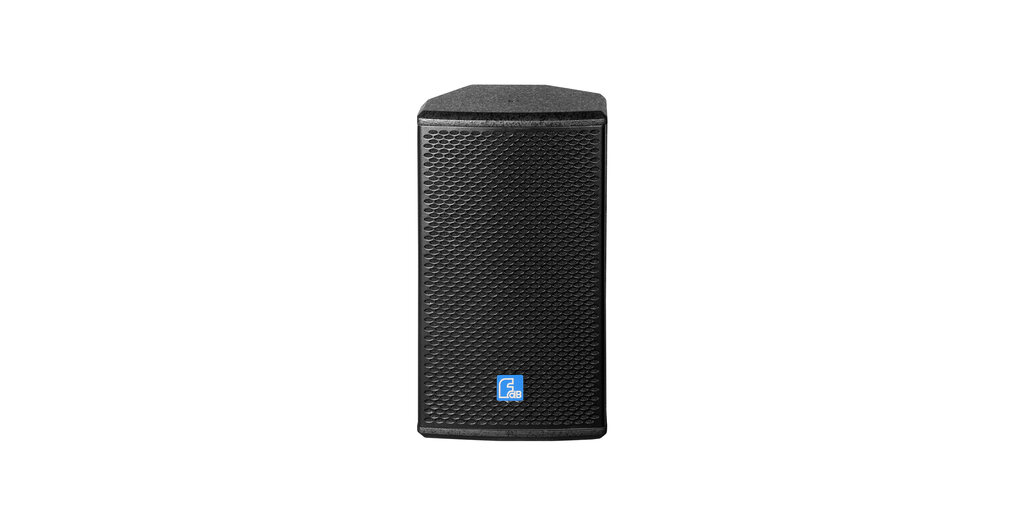

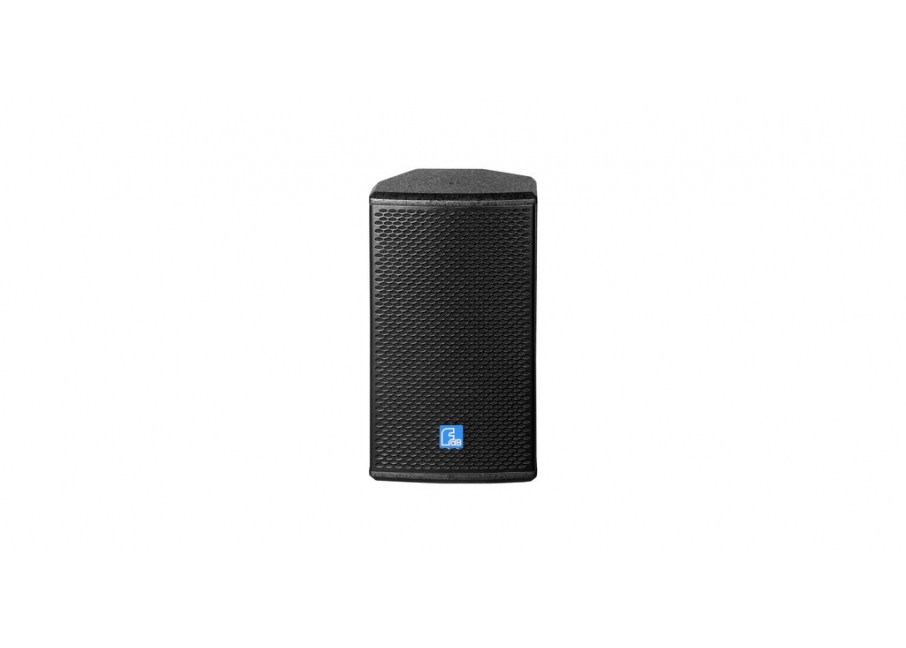

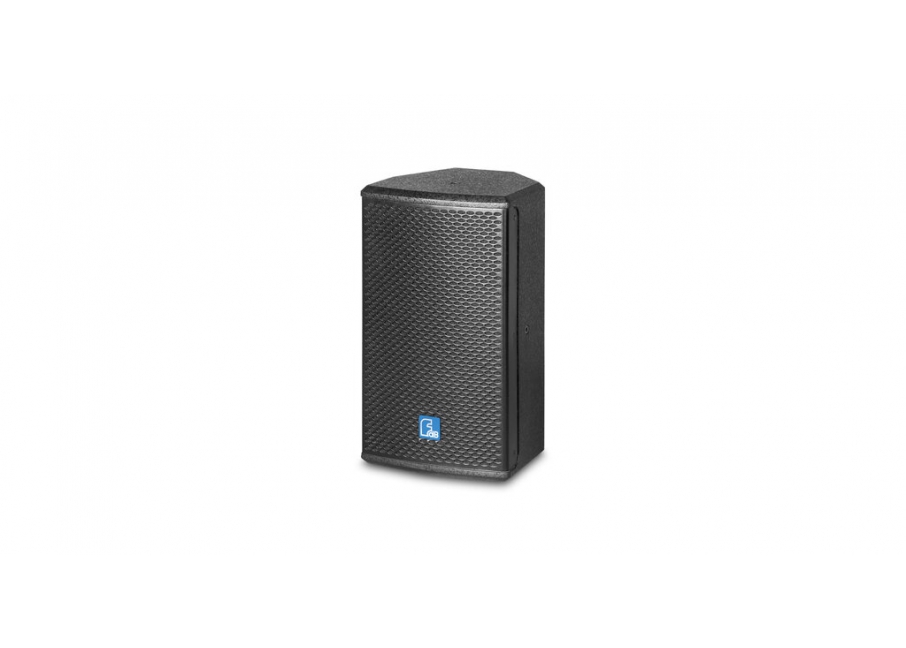

The U108VI is a 8", small sized, light weight, two way full range speaker with balanced sound. Unit configuration: 1x8" high efficiency mid-bass unit, 1x1" exit throat 25mm mylar diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
