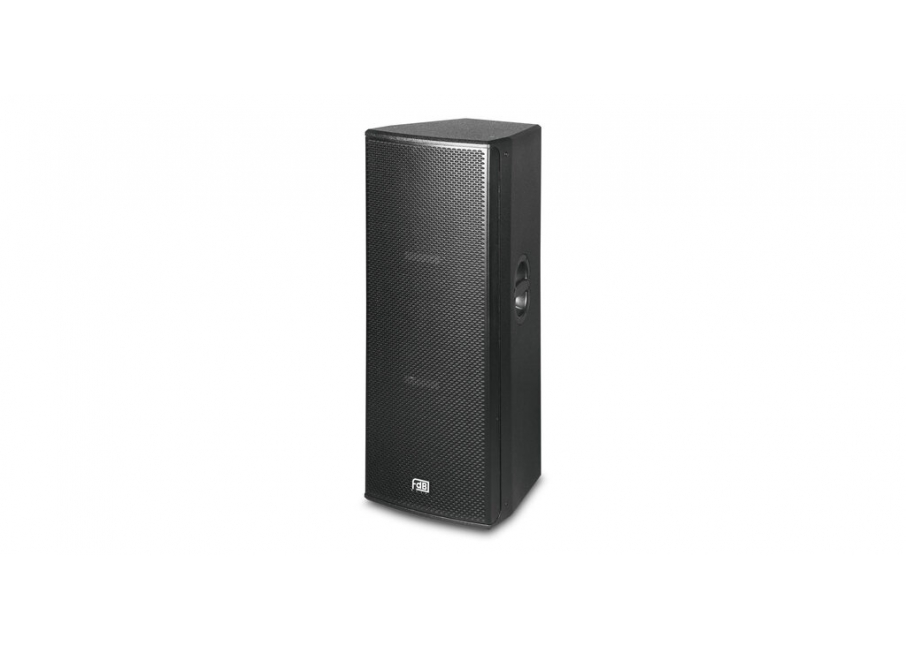

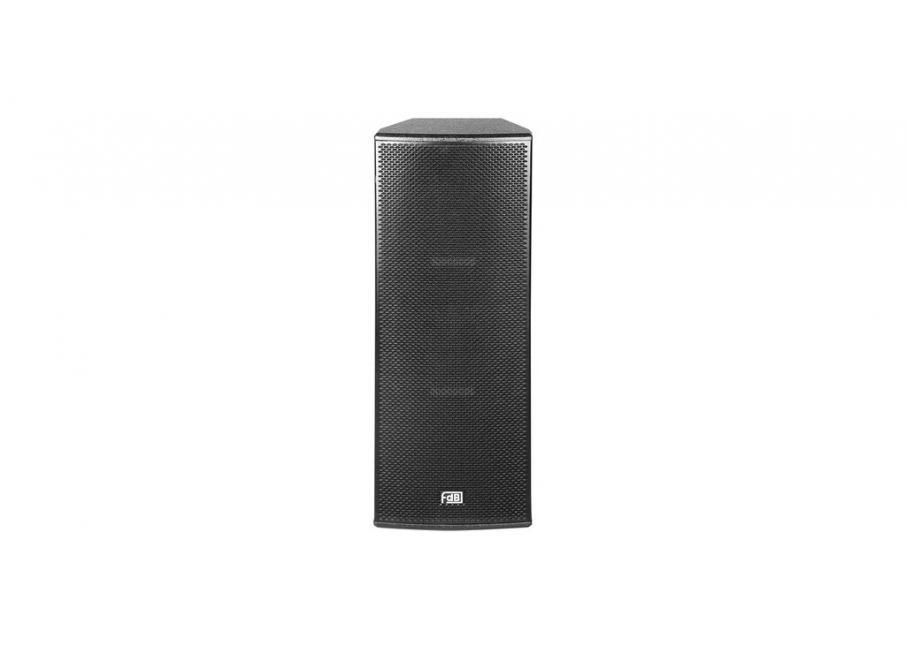

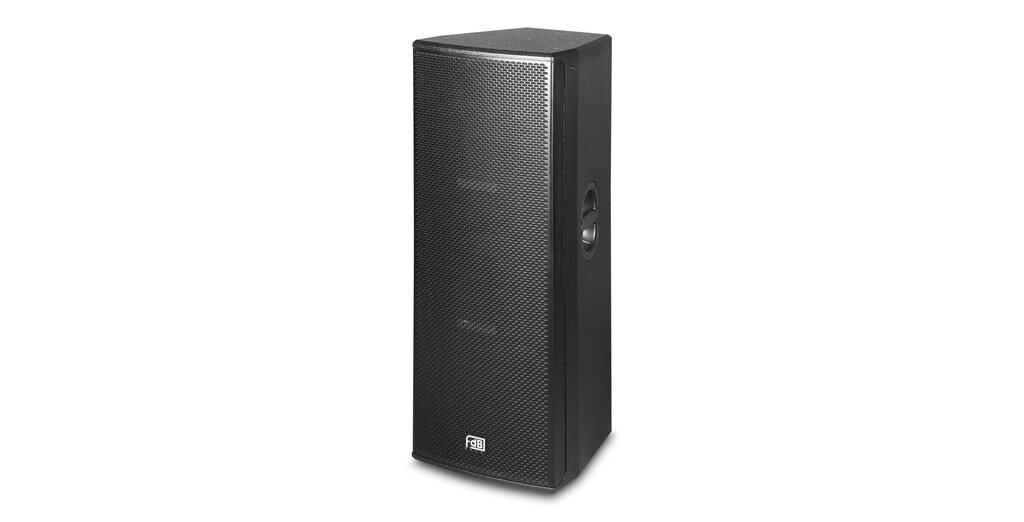

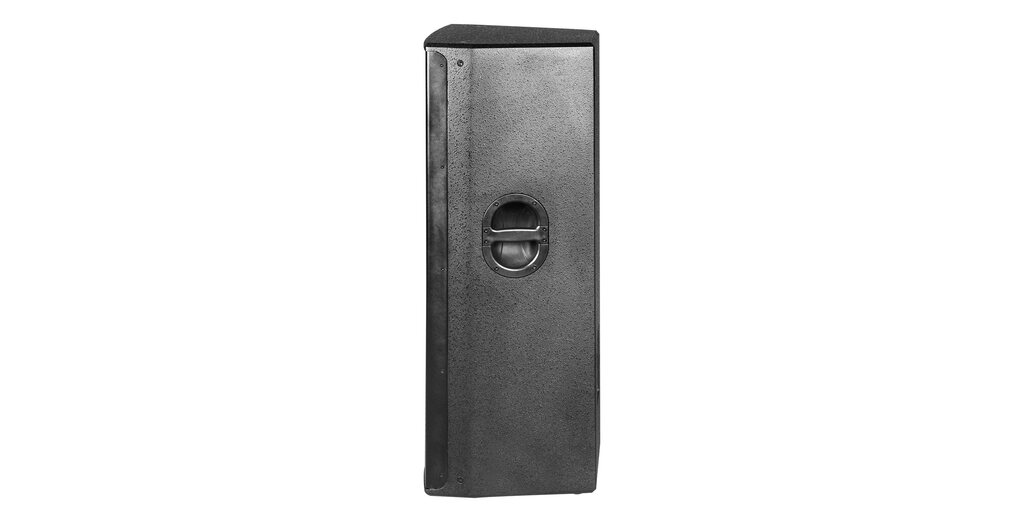

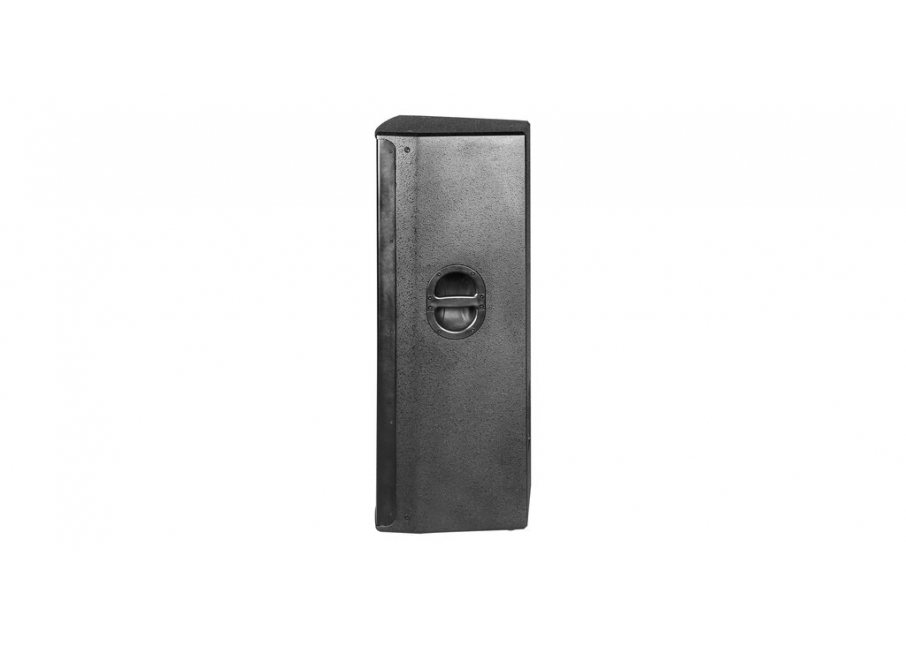

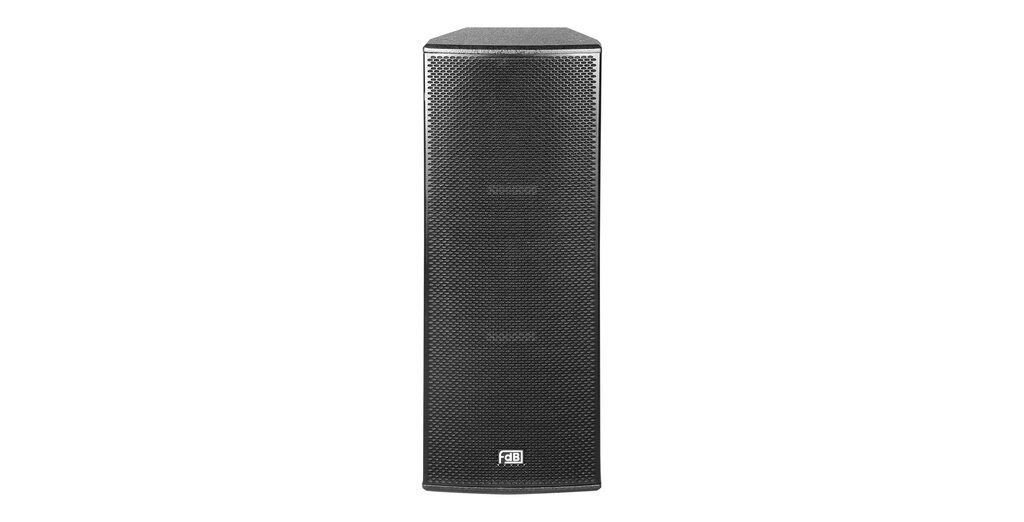

U212V
Professional Speaker
Contact
Features
FEATURES
●High quality plywood with special environmental protection paint
●Compact two-way passive system
●Mid-high frequency's sensitivity can be adjusted
●Rotatable 90°×40° horn
●Flexible mounting options
| MODEL | U212V |
| FREQUENCY RESPONSE(-3dB) | 45 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 40 Hz-20kHz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 700W RMS,2800W peak |
| SENSITIVITY | 100dB 1watt/1 metre |
| MAXIMUM SPL | 128dB continuous,134 dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 480mm×470mm×1128mm |
| NET WEIGHT | 39 kg/pc |
| GROSS WEIGHT | 45 kg/pc |
U212V
Description
The U212V is the ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality.
