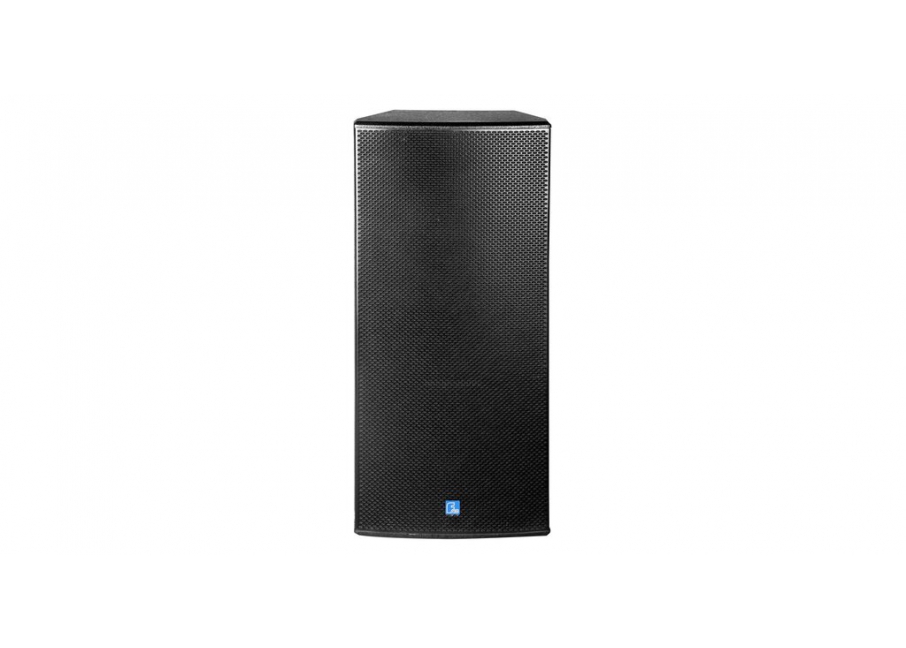

U215VI / U215AVI
Professional Speaker
Contact
Features
● High quality unit configuration, high strength plywood housing
● High power
● Applications: indoor and outdoor sound reinforcement in full range, multifunction halls
| MODEL | U215VI | U215AVI |
| FREQUENCY RESPONSE(-3dB) | 40 Hz-18kHz | 40 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 35 Hz-20kHz | 35 Hz-20kHz |
| DRIVERS | 2×15"(385mm)/4"voice coil LF | 2×15"(385mm)/3"voice coil LF |
| 1×2"(50mm)/3"voice coil HF | 1×2"(50mm)/3"voice coil HF | |
| RATED POWER | 1200W RMS,4800W peak | 300W/8Ω+1200W/4Ω |
| SENSITIVITY | 101dB 1watt/1meter | -- |
| MAXIMUM SPL | 132dB continuous,138dB peak | 130dB continuous,136dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| DISPERSION(-6dB) | 90°×50° | 90°×50° |
| CROSSOVER FREQUENCIES | 1.5kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 660mm×605mm×1250mm | 660mm×605mm×1250mm |
| NET WEIGHT | 64 kg/pc | 55 kg/pc |
| GROSS WEIGHT | 70 kg/pc | 61 kg/pc |
U115VI-U115AVI-2023
Description

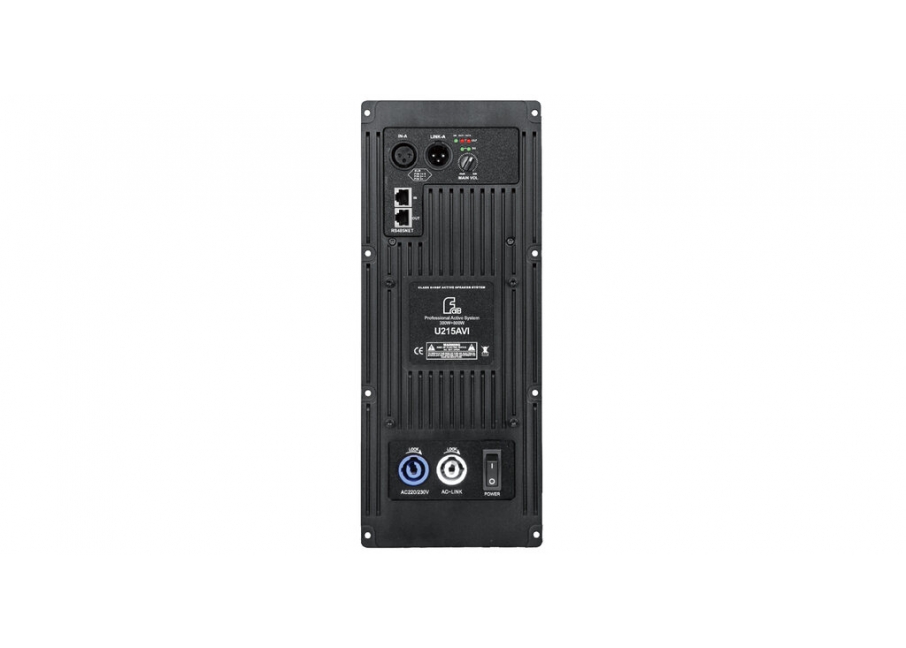

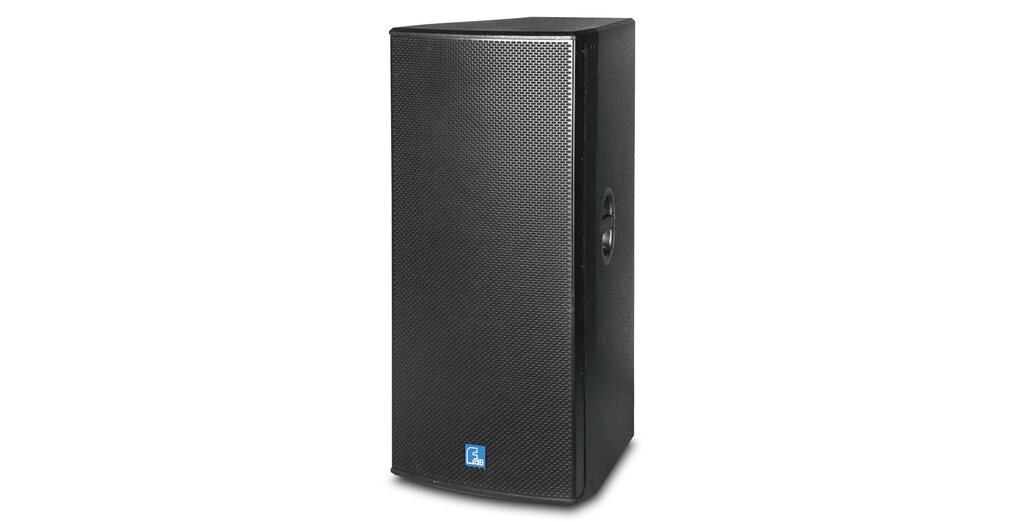

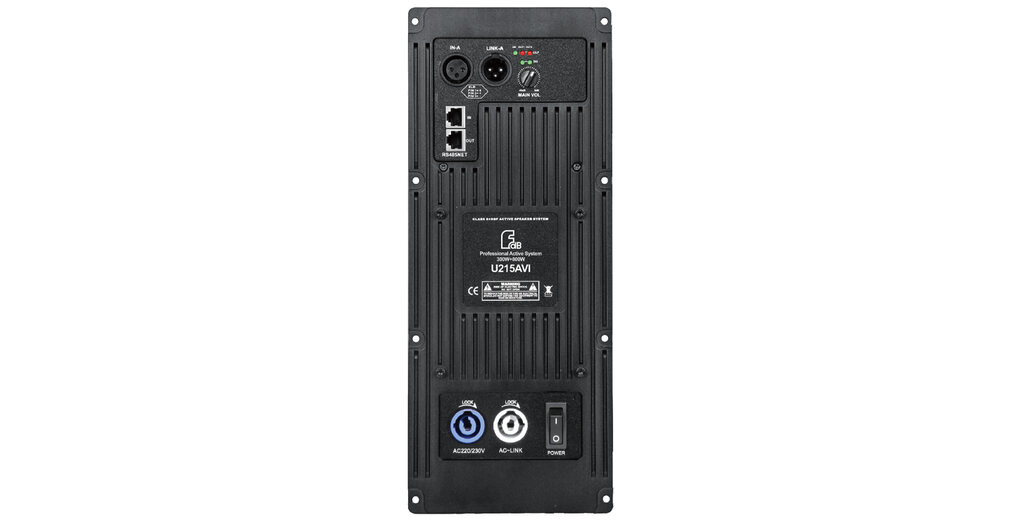

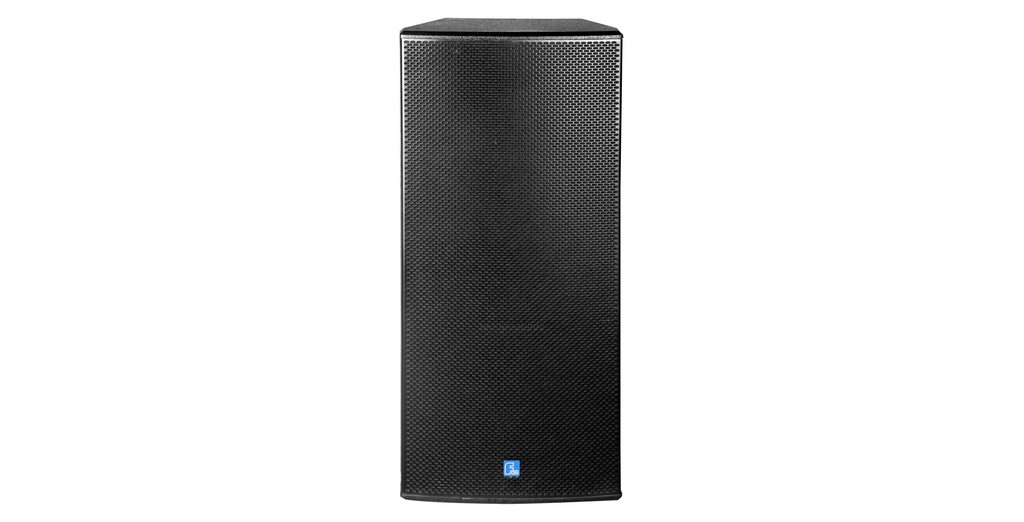

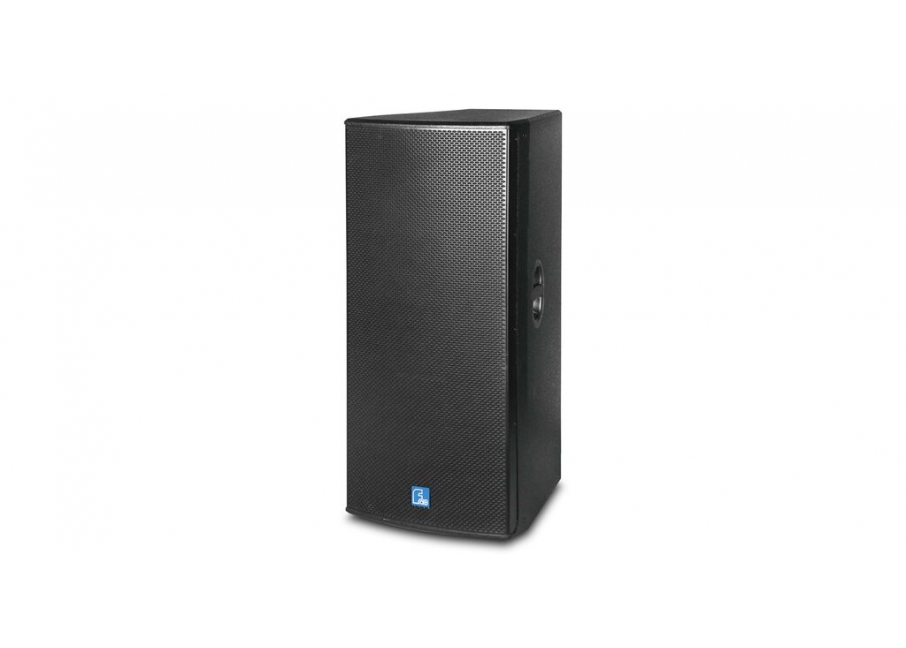

The U215VI is a 15", high power, two way full range speaker with bright and powerful sound. Unit configuration: 1x15" high efficiency mid-bass unit, 1x1.4" exit throat 75mm titanium diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. U215AVI is an active speaker with two channels and DSP digital amplfier.
