Description

DALIM Series are 4-channels high power level amplifiers designed to the tough requirements of the touring market. It is remarkable their high efficiency.

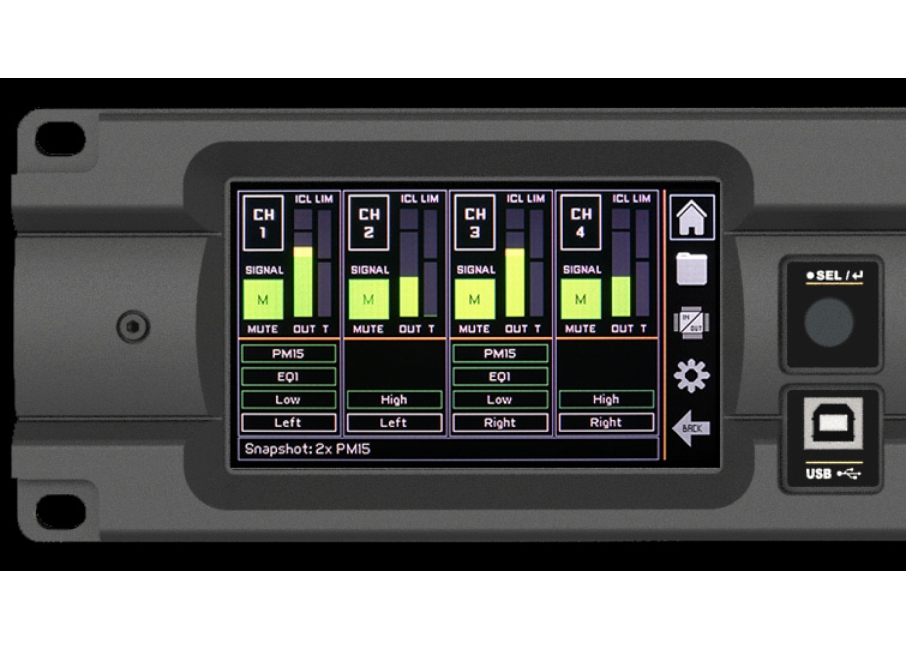

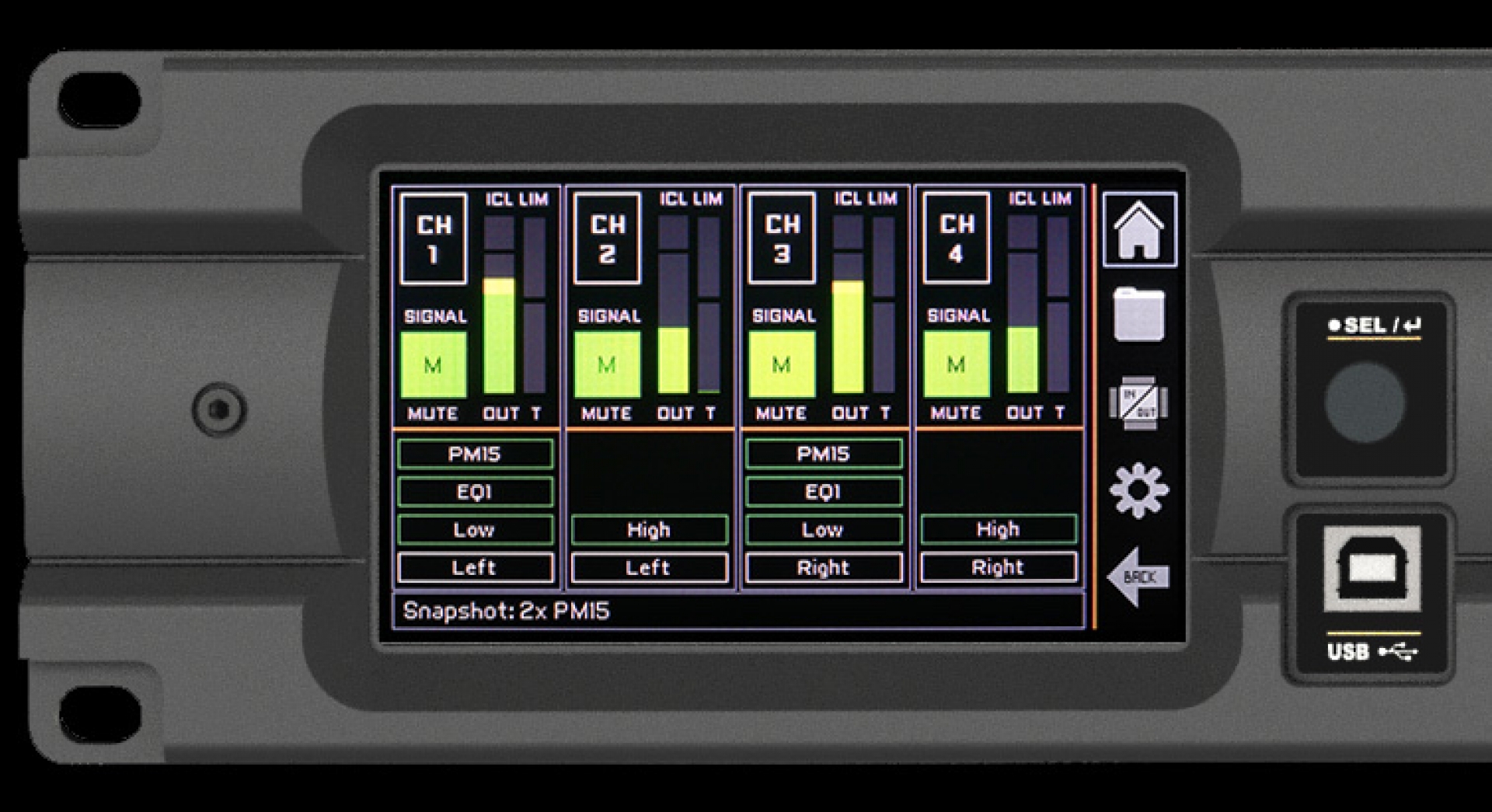

These amplifiers have been equipped with a high quality 64 bit double-precision 96kHz FIR-DSP and a large IPS display, capacitive touch panel user interface.

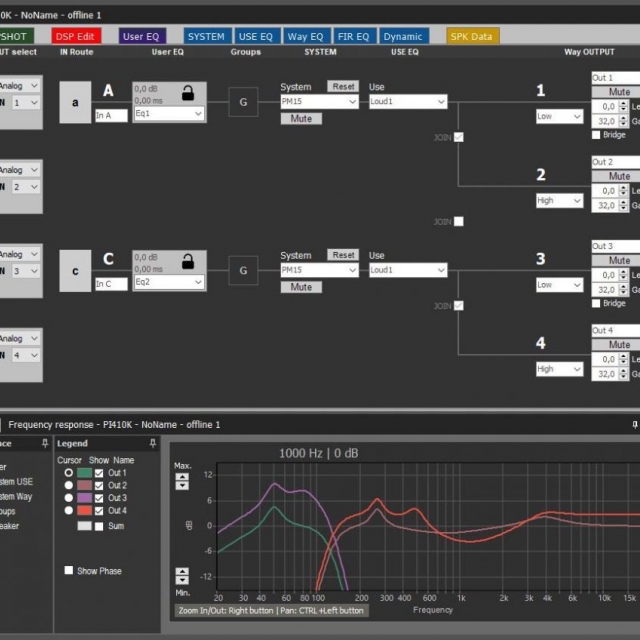

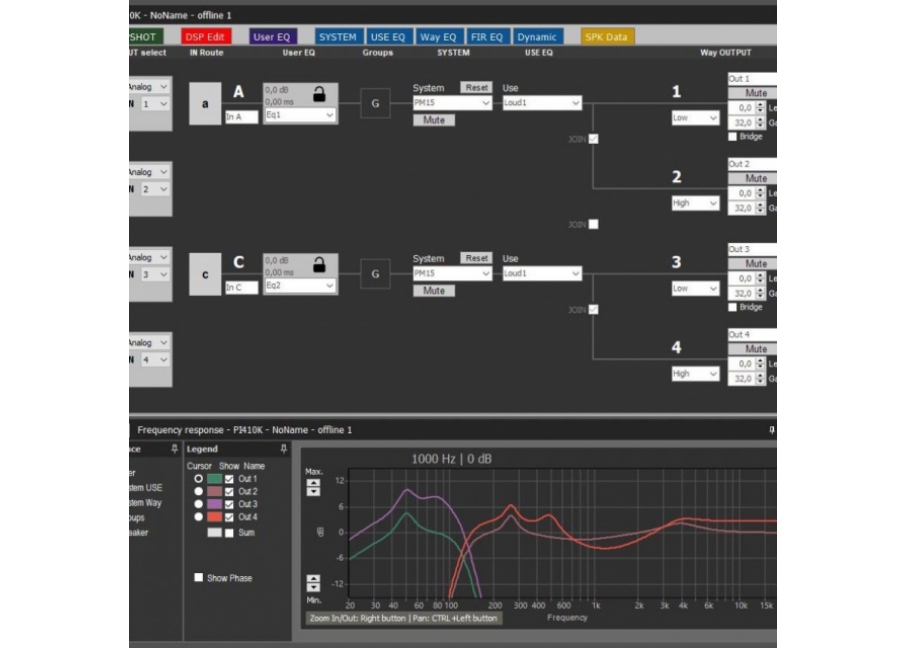

In the design it has been implemented the advanced RAM Audio Power Control Management to configure through the DSP how to sharing the power between the channels according to the user needs, having the possibility to obtain in just one channel the maximum power.

Optional GPIO, DanteTM, AES67 (ATMOS and RAVENNA compatible) and AES3 Digital inputs are available for DALIM amplifiers.

Features

• Large IPS display, capacitive touch panel user interface

• 64 bit double-precision 96kHz DSP process. See more…

• Optional Dante^TM, AES67 (ATMOS and RAVENNA compatible) and AES3 Digital inputs

• Optional GPIO module, except for 14Q and 20Q models

• Two ports Ethernet and USB port for DSP control

• High efficiency class D topology

• Universal power supply with PFC

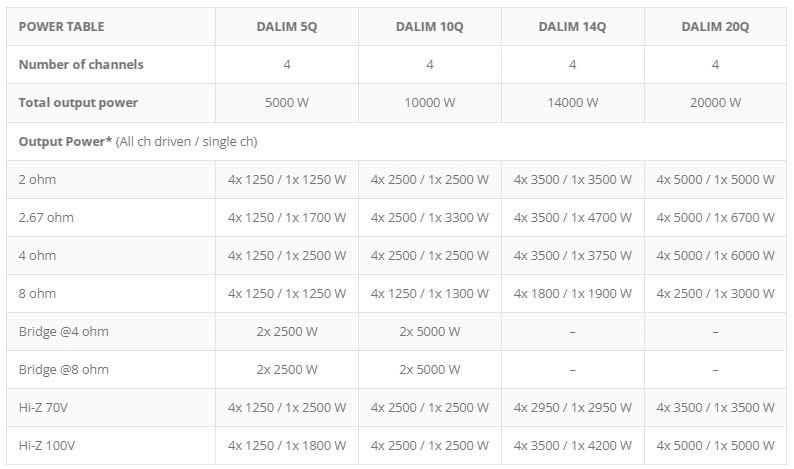

• Up to 20000 W in 4 channels

• 8, 4 and 2 Ohm low impedance operation

• 100, 70, 50 and 35 V high impedance modes

• RAM Audio advanced Power Control Management (PCM^TM)
