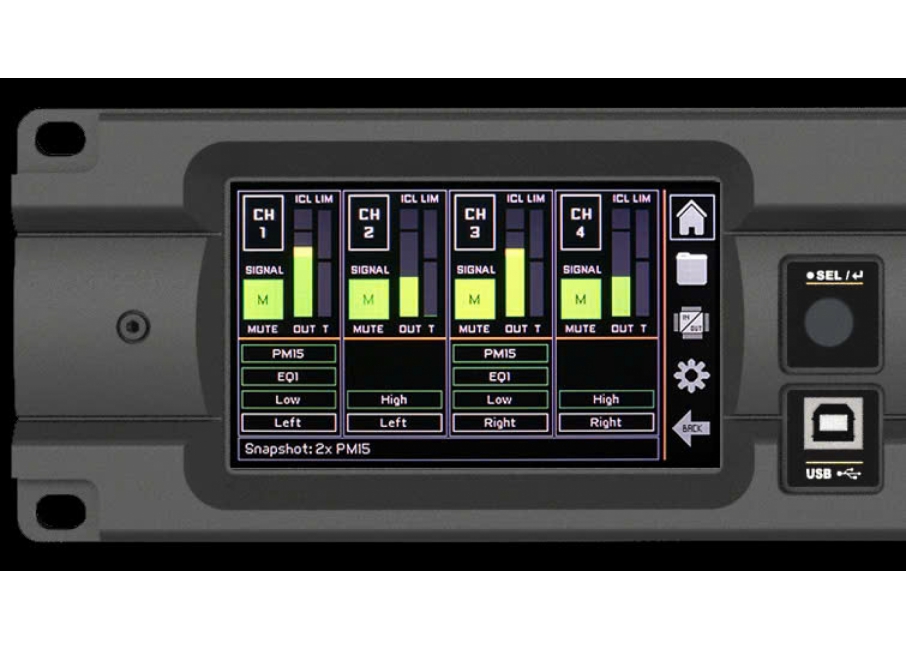

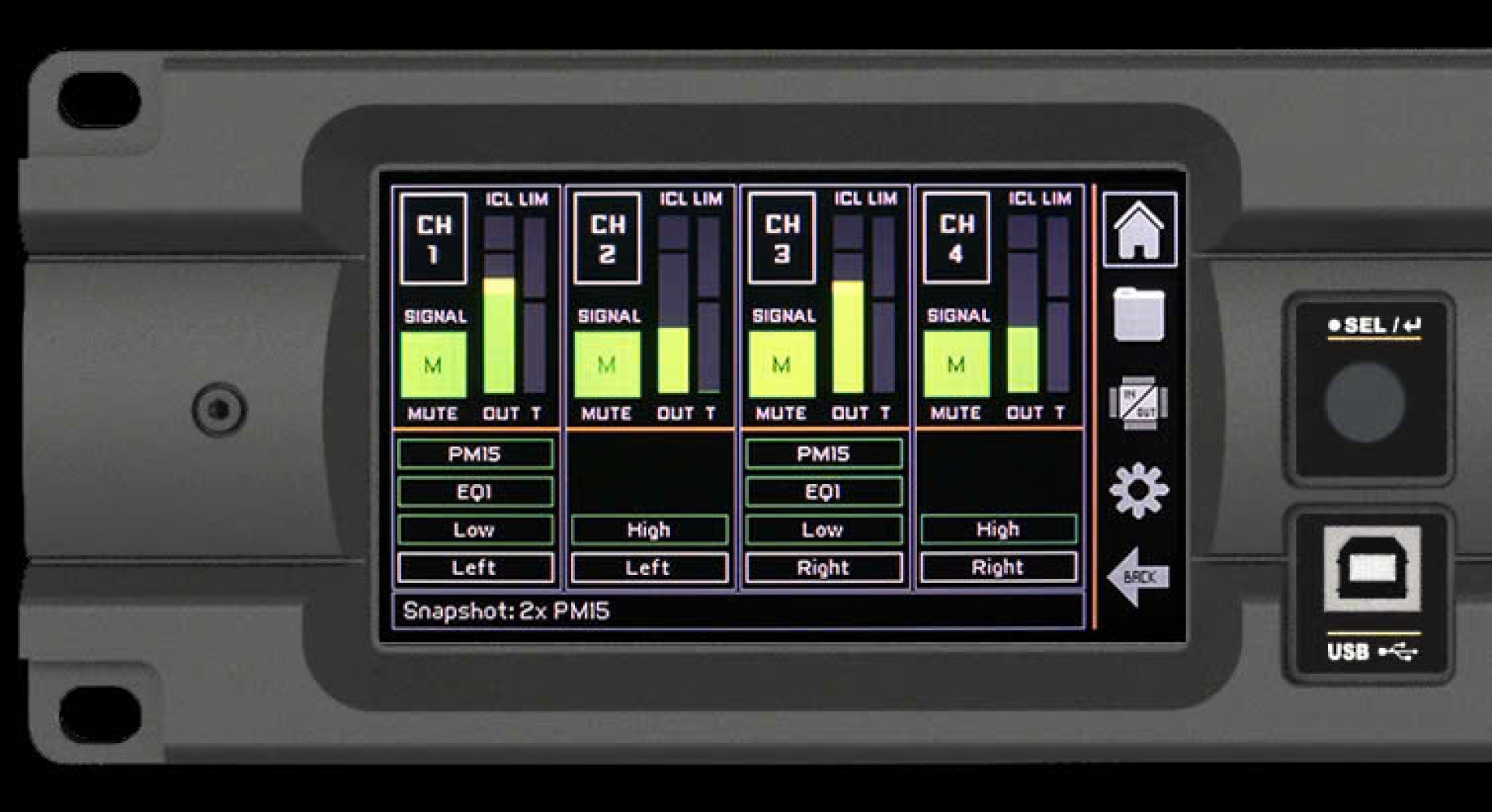

• Large IPS display, capacitive touch panel user interface
• High performance 96kHz DSP process.
• Optional DanteTM, AES67 (ATMOS and RAVENNA compatible) and AES3 Digital inputs
• Two ports Ethernet and USB port for DSP control
• Optional GPIO for third party interface
• High efficiency class D topology
• Universal power supply with PFC

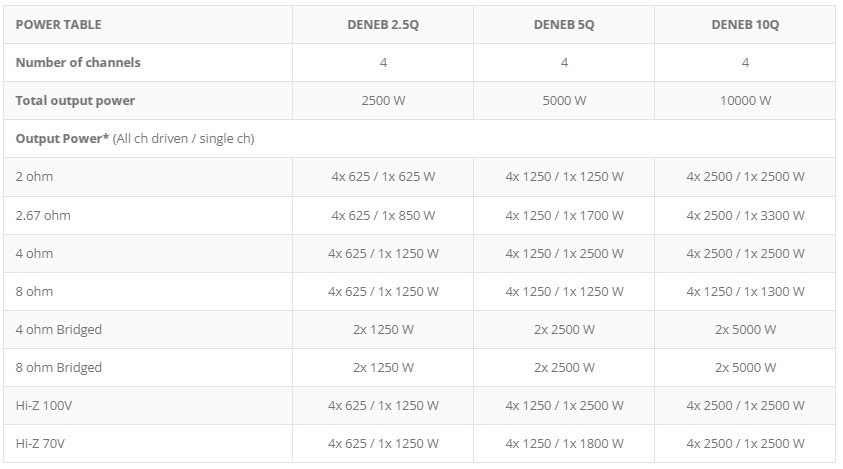

• Up to 10000 W in 4 channels
• 8, 4 and 2 Ohm low impedance operation
• 100, 70, 50 and 35 V high impedance modes
• Advanced RAM Audio Power Control Management (PCMTM)
• Phoenix connectors for inputs and outputs
• Up-side-down design to avoid fan dust accumulation
• Removable dust filter foam
• Temperature controlled, front to back cooling fan
• ICL™: Intelligent Clip Limiting.
• PCM™: advanced RAM Audio Power Control Management to share the total power of the device between the channels according to needs.
• Soft-start, Turn-ON Turn-OFF transients, Muting at turn-ON, Over-heating, DC, RF, Short-circuit.
• Open or mismatched loads, Overloaded power supply.
Overall:
• High performance 96 kHz/24 bits AD/DA converters
• 64 bit double-precision 96 kHz DSP process
• 0.85 ms minimum process latency time
• Custom FIR process up to 1000 taps
• Dante, AES67 and AES3 input versions
Input Section (x4):
• Gain, Mute and Phase inversion
• Delay: in Input A: 333 ms (115 m), Inputs B/C/D: 90 ms (31 m)
• Input EQ: 16 filters (Parametric, Shelving, LP, HP, BP, SB, AP)
Output Section (x4):
• Crossover Filters: FIR and IIR (up to 48 dB/oct, Butterworth/LR/Bessel)
• Output Delay: 0 to 31 meters (90 ms) per channel
• Output IIR EQ: 12 filters per channel (Parametric, Shelving, LP, HP, BP, SB, AP)
• Output FIR EQ: 20 filters per channel (Parametric, Shelving, LP, HP, BP, SB, AP), or Up to 1000 taps
• RMS and Peak limiter per channel
Communications:
• Two ports Ethernet switch for daisy chain connection
• USB 2.0 Type B port
Miscellaneous:
• 100 Manufacturer system preset memories library
• 20 User preset memories library
• 20 User snapshot memories library
• Manufacturer/User passwords
• User control groups for virtual Equalization, Gain and Delay
• Zones definition for library management and alerts information
• Smaart® analysis software integration
Description

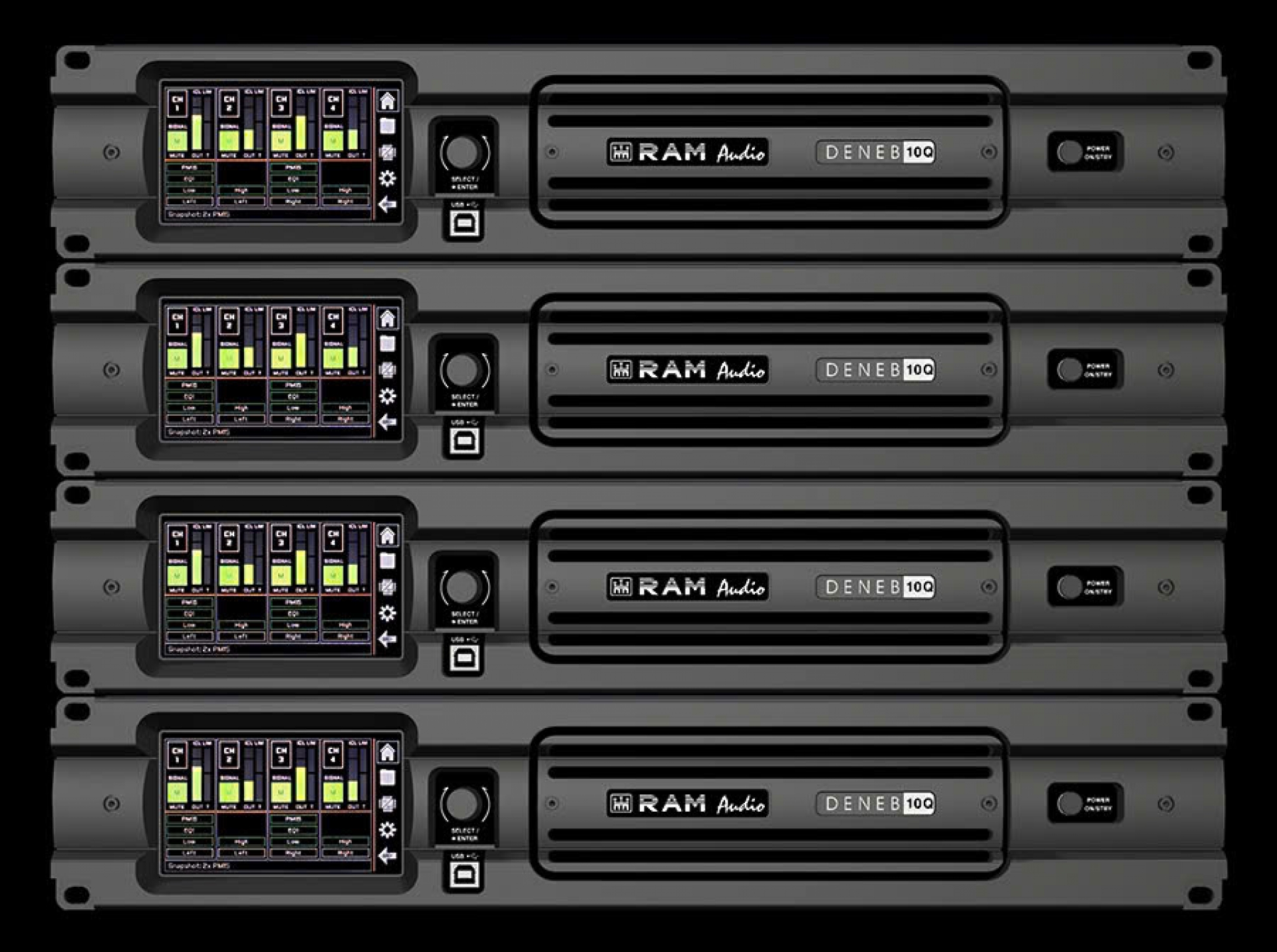

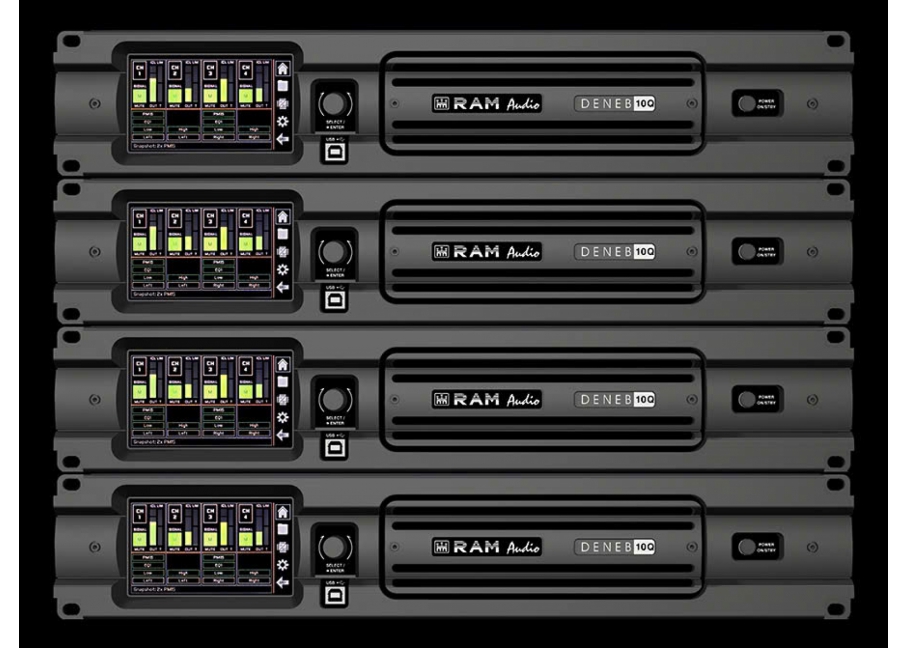

DENEB Series are Hi efficiency 4-channels mid/high power level amplifiers dedicated to the installation market where they can be connected loads in both, low and high impedance, through their input and output Phoenix connectors.
In the design it has been implemented the advanced RAM Audio Power Control Management to configure through the DSP how to sharing the power between the channels according to the user needs, having the possibility to obtain in just one channel the maximum power.
These amplifiers have been equipped with a high quality 64 bit double-precision 96kHz FIR-DSP and a large IPS display, capacitive touch panel user interface.
Optional DanteTM, AES67 (ATMOS and RAVENNA compatible) and AES3 Digital inputs are available for DENEB amplifiers.
These devices also can be equipped with a GPIO connection to interface with a third party control system.
With all these configurations DENEB amplifiers can meet the power requirements of any installation from 300 up to 2500 W.
