Description

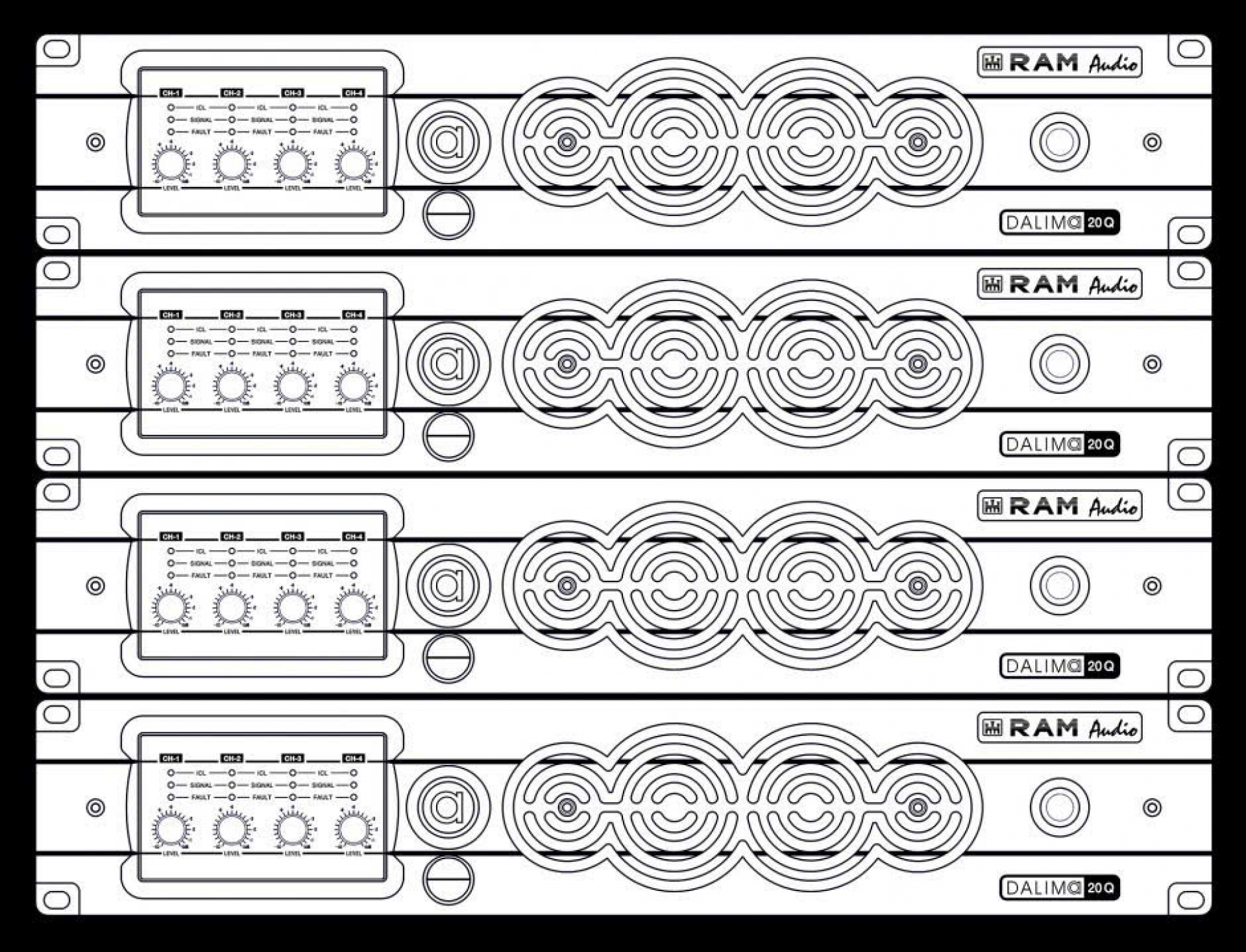

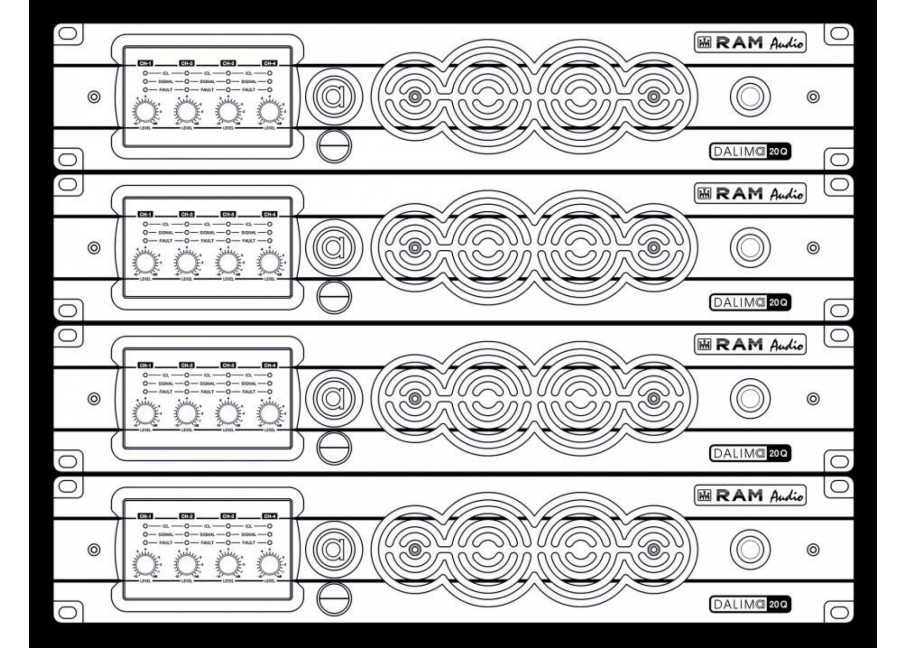

DALIMa Series are 4-channels high power level amplifiers designed to the tough requirements of the touring market. It is remarkable their high efficiency.

These amplifiers are based on their predecessors DALIM amps, where DSP has been removed; for these applications where external DSPs are used, so you do not have to pay extra money for it.

In the design it has been implemented the advanced RAM Audio Power Control Management to configure through the DSP how to sharing the power between the channels according to the user needs, having the possibility to obtain in just one channel the maximum power.

Optional GPIO, DANTE and AES67 (ATMOS and RAVENNA compatible) inputs are available for DALIMa amplifiers.

Features

• Optional GPIO module, except for 14Q and 20Q models

• Optional DANTE and digital AES67 (ATMOS and RAVENNA compatible) inputs

• High efficiency class D topology

• Universal power supply with PFC

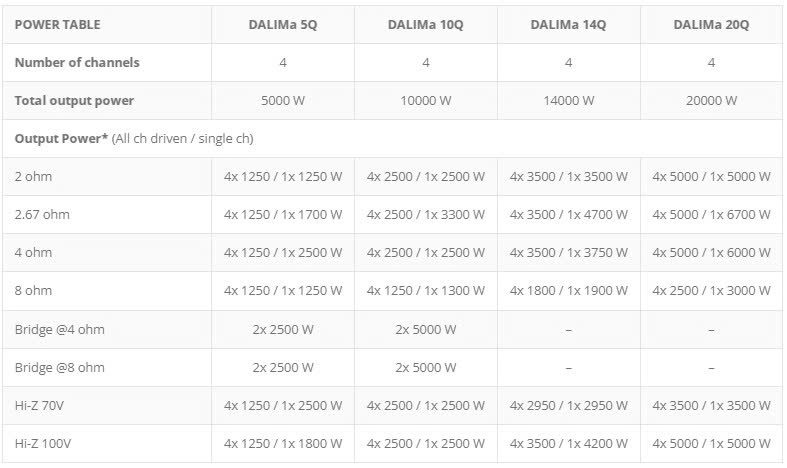

• Up to 20000 W in 4 channels

• 8, 4 and 2 Ohm low impedance operation

• 100, 70, 50 V high impedance modes

• RAM Audio advanced Power Control Management (PCM^TM)

• Industry standard Neutrik® XLR and Speakon® connectors

• Neutrik® PowerCon mains connector (32A version in 14Q and 20Q models)

• Removable dust filter foam

• Up-side-down design to avoid fan dust accumulation

• Temperature controlled, front to back cooling fan
