Description

MDi Series is a solution from RAM Audio for fixed installations, where state-of-the-art amplification technology is used to manage acoustic systems in the most efficient and greenest way possible, without diminishing quality of sound and dynamics that have always typified RAM Audio amplifiers.

A new generation of QuantaPulseTM switching mode power supplies with Power Factor Correction (PFC) to improve efficiency, with a schematic thought to give a very high capacity of instantaneous power, together with very evolved high efficiency audio modules in class D with an excellent quality of sound, are the basis on which RAM Audio developed this series that is capable of offering the most optimal solution to the very exigent fixed-installations market.

Features

• Hi audio quality in an extremely efficient class D design

• Last generation PFC QuantaPulse™ switch mode PS

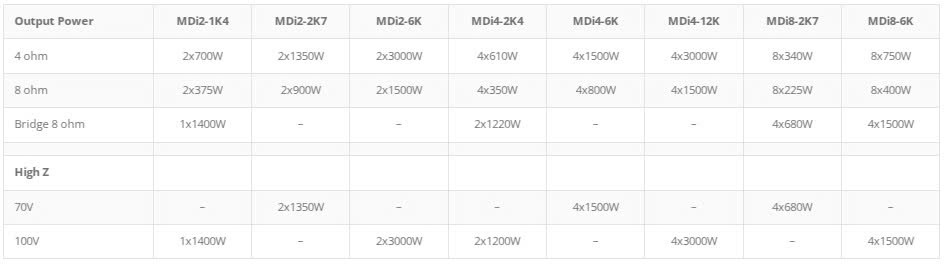

• 2/4/8 channels models from 1400W up to 12000W

• 70V/100V Line Direct/Drive Output

• Ultra light average weight 8 kg, compact package 32 cm average deep

• RAM Audio Power Management System (PMS™) and Clip Limiter (ICL™)

• Upside-down design to avoid fan dust accumulation

• Two versiones: with Industry standard Barrier Strips and Phoenix connectors, or with standard Neutrik® XLR and Speakon® connectors

• Optional Dante™ and AES67 (ATMOS and RAVENNA compatible) audio inputs (not available in MDi amps with XLR and Speakon connectors)
