U112HVI
Professional Speaker
Contact
Features
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor soundreinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
| MODEL | U112HVI |
| FREQUENCY RESPONSE(-3dB) | 50 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 45 Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 450W RMS,1800W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 124dB continuous,130 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 530mm×495mm×710mm |
| NET WEIGHT | 25 kg/pc |
| GROSS WEIGHT | 29 kg/pc |
U112HVI-2023
Description

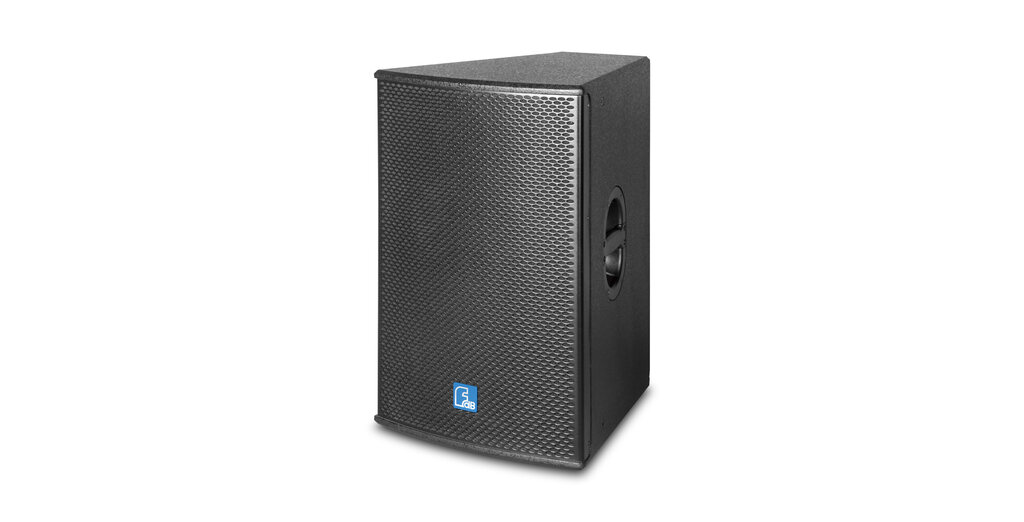

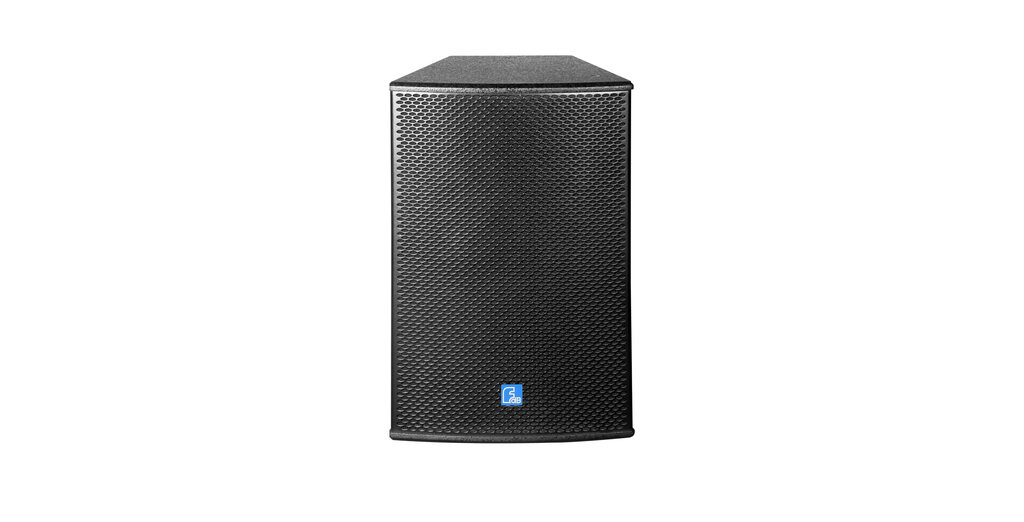

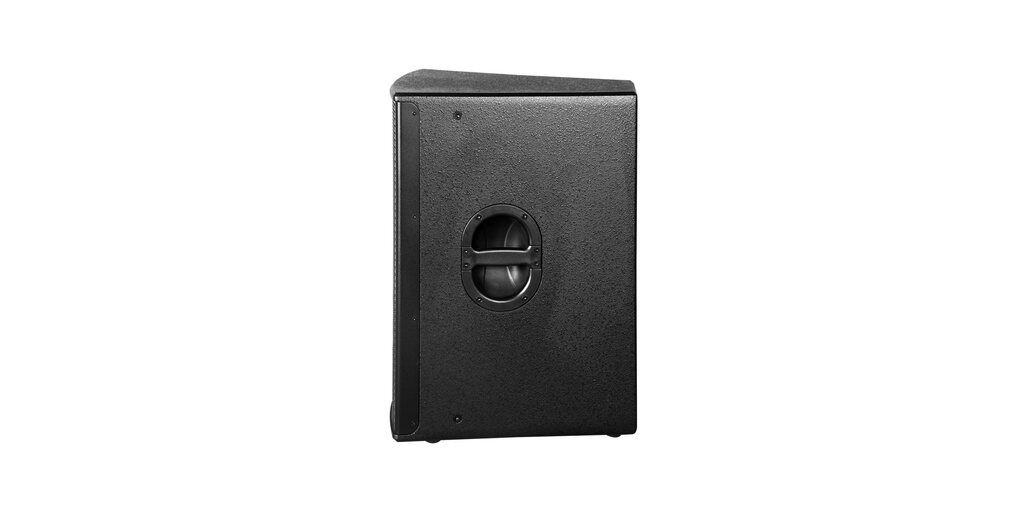

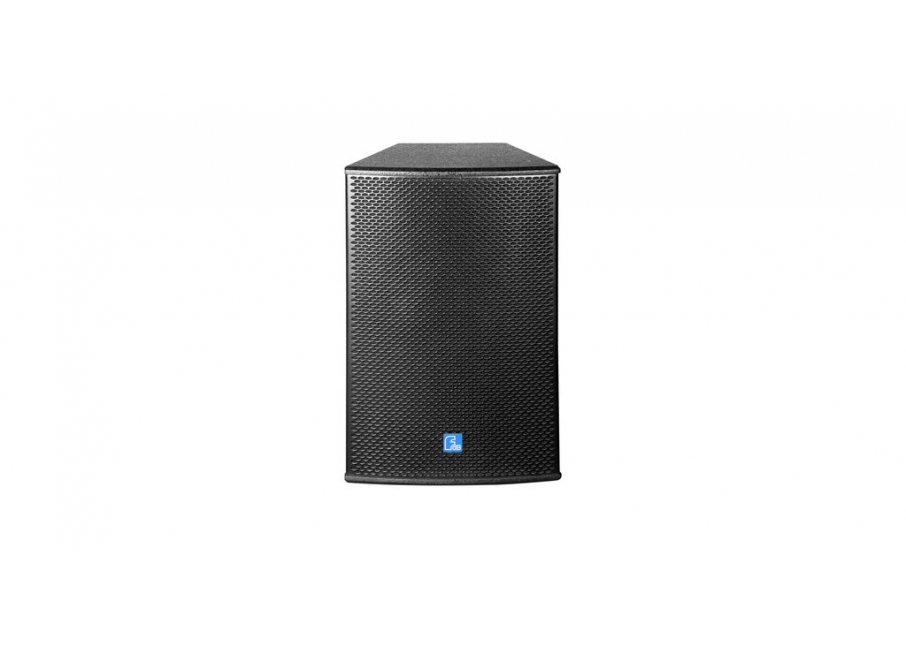

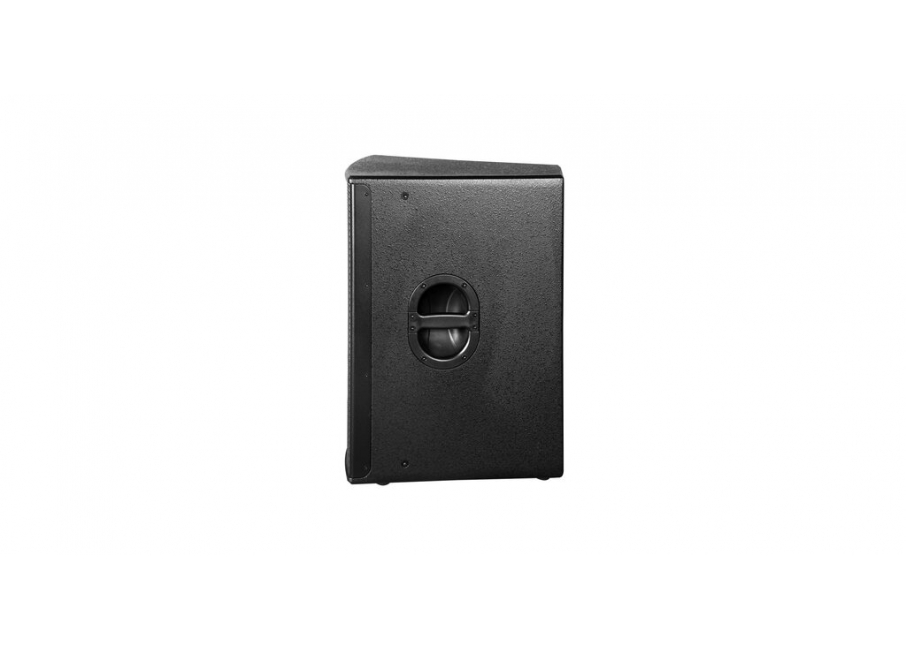

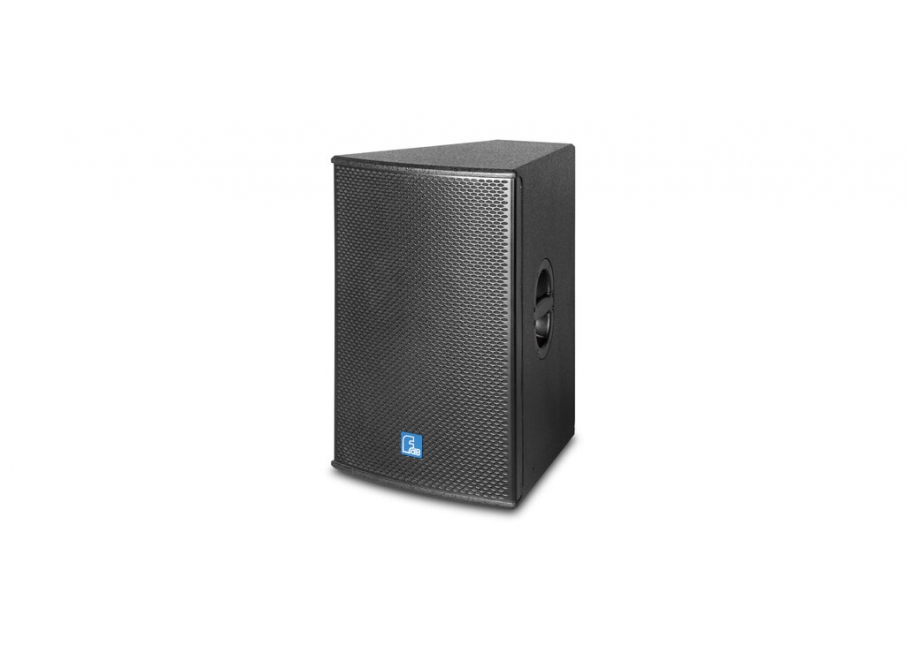

The U112HVI is a 12", high power, two way full range speaker with bright and powerful sound. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1.4" exit throat 75mm composite diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
